Summary of Contents for Foxtech SEEKER-640

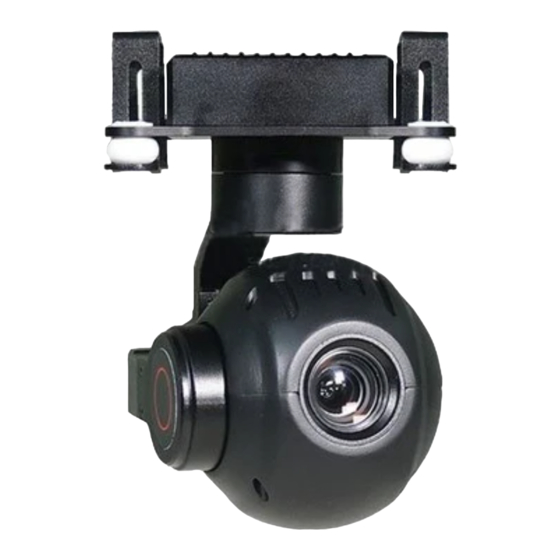

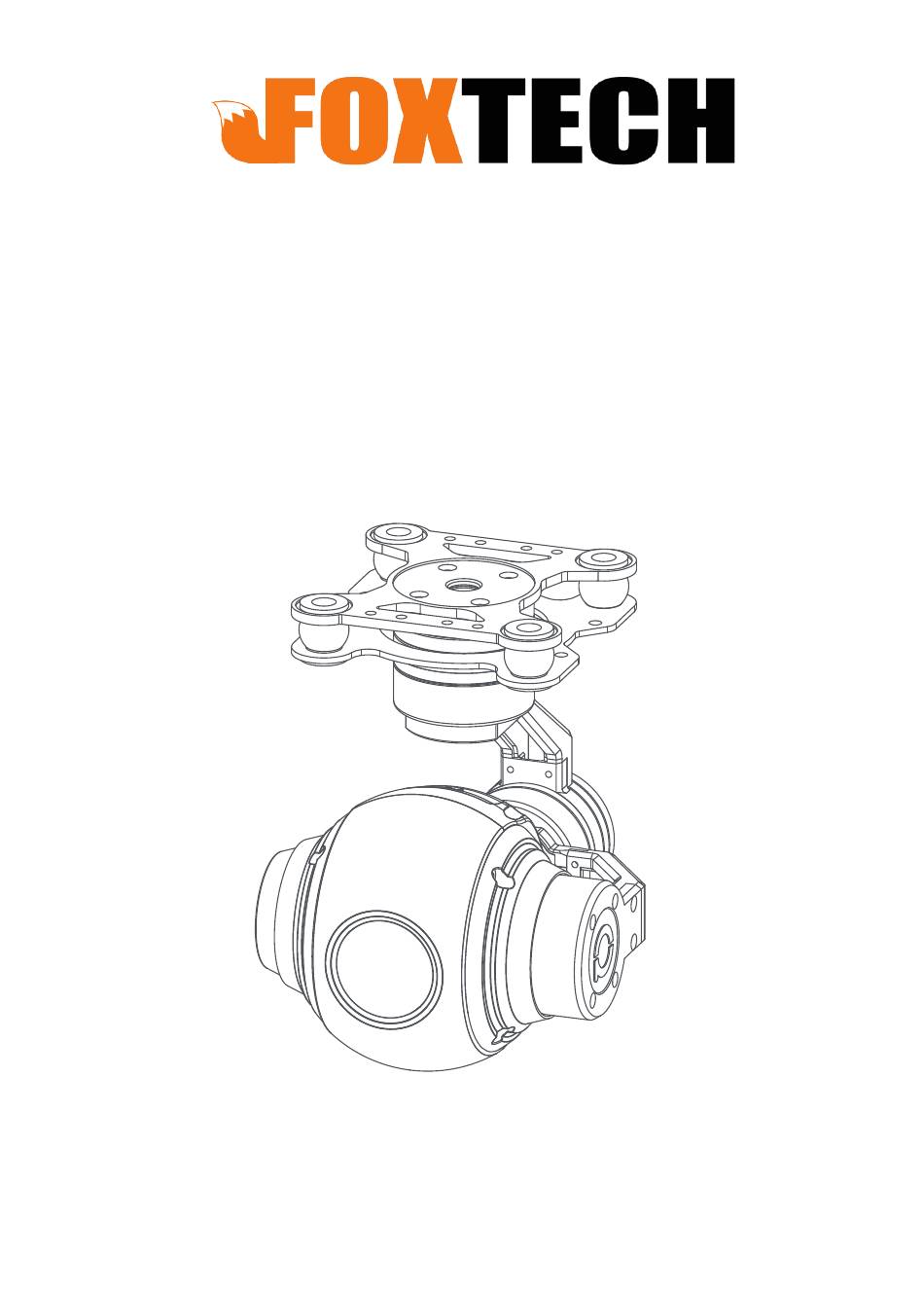

- Page 1 Quick Start Guide SEEKER-640 19mm Single-Sensor Thermal Camera with 3-axis Gimbal...
- Page 2 Seeker-640 The SEEKER-640 features a thermal imager with 19mm lens, supports 640*480 detector pixels, 1x ~ 8x digital zoom. The gimbal can be controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV.
- Page 3 In the Box Gimbal camera*1 Damping board*2 Copper cylinders*4 Anti shedding buckle*4 Button head hexagon screw*16 USB to TTL*1 5mm*12 8mm*4 Gimbal Camera Dimension Uint: mm...
- Page 4 Instaling Install the holder camera as shown Connection of Control Box and Wiring Instruction Control Box position 1. Insert SD card SD card: max 32G, class10 SD card position 2. Connect HDMI to display 3S~4S HDMI: micro HDMI OUTPUT 720x576 HDMI position...
- Page 5 3. Connect the signal line as below 1 2 3 S.bus/ Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi S.bus/Rx Roll/Tx Pitch Futaba Mode Zoom R6208 S B Focus Pic/Rec Multi 8 /B 4. Power supply with 12V ~ 16V, red line is positive and black is negative. RX1 RX2 RX3 TX1 TX2 TX3 1 2 3...
-
Page 6: Function Description
Function Description Signal functions PWM in 5V output USER BOARD TTL 115200/8/1/N S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. - Page 7 Pitch: PWM in, pitch control 1 pitch up 2 pitch stop We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical 3 pitch down s u p p o r t f o r d e t a i l doc.
- Page 8 Mode: Change the speed / home position Position 3: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 1: Highest speed for pitch and yaw. The speed is continuously quickly from 3 to 1. Position 2-1-2: Home position.
- Page 9 Pic/ Rec picture / Start record, stop record Switch 2 to 1: start record / stop record. start record, stop record; Switch 2 to 3: take a picture. Multi: Multi colors AV: AV output -8 -...
- Page 10 Hardware Parameter Working voltage 12V ~ 16V Input voltage 3S ~ 4S Dynamic current 500mA @ 12V Idle current 400mA @ 12V Power consumption ≤ 3.85W Working environment temp. ~ +80 ℃ ℃ Output micro HDMI( 720x576 ) / AV Local-storage SD card (Up to 32 G, class 10,) Control method...
