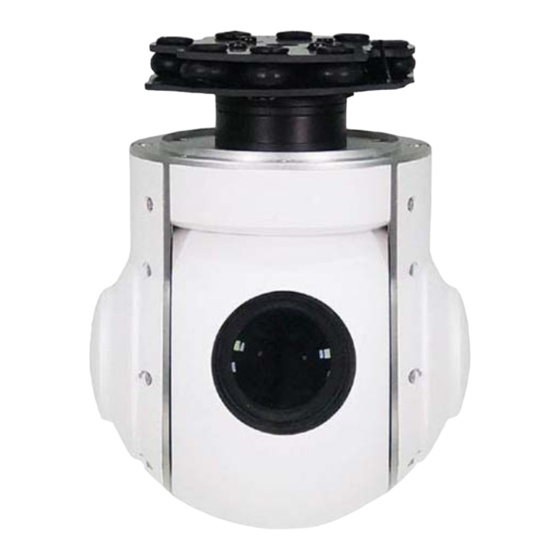

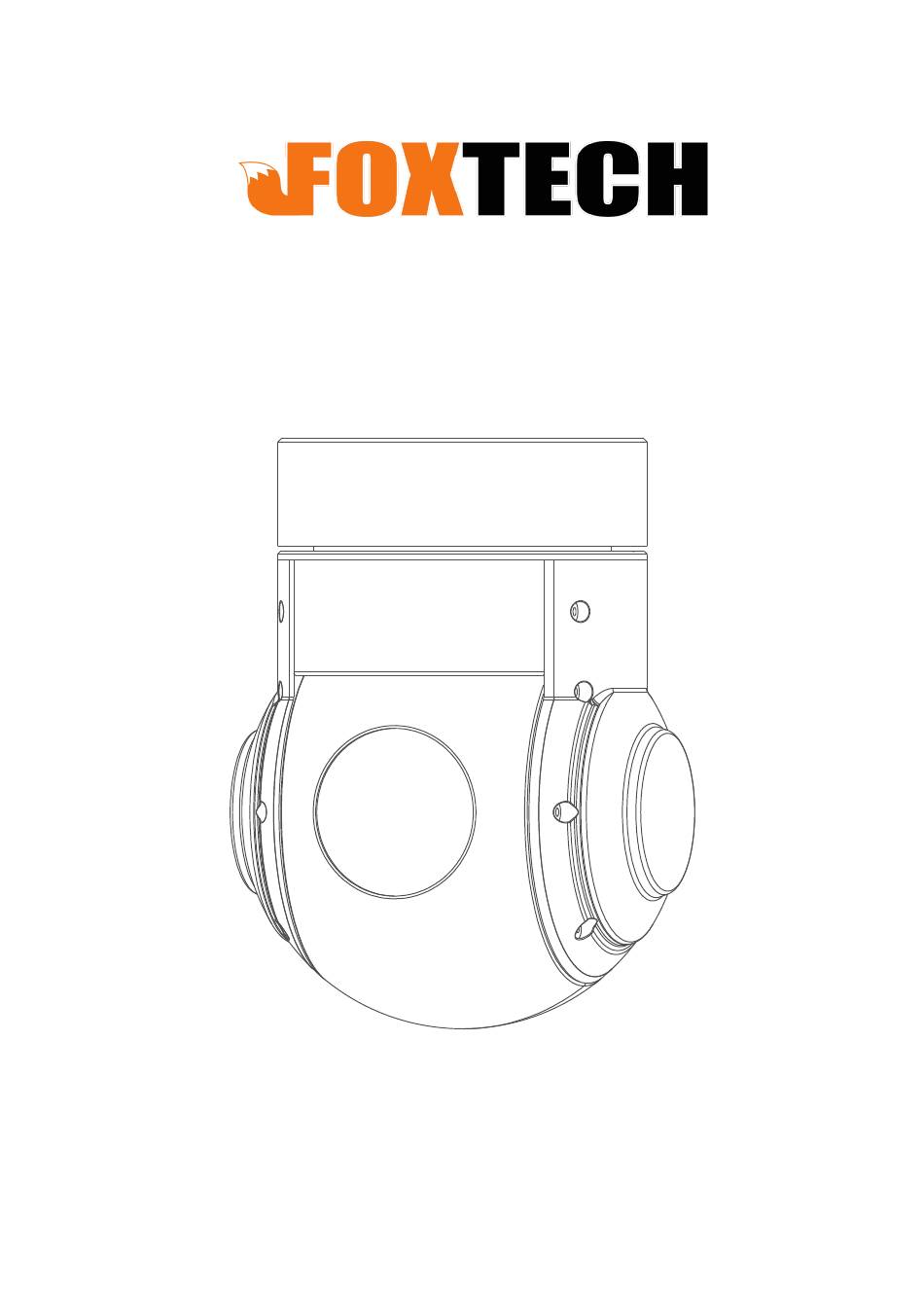

- Page 1 FH230 TR 30X Optical Zoom Camera with 2-axis Gimbal...
-
Page 2: Table Of Contents
Contents 2-axis Gimbal introduction…………………………………… 、Gimbal … … … … … … … … … … … … … …2 Tracking Function … … … … … … … … … … … … … … … … … … … … … … … … 2 2、... -
Page 3: Gimbal Introduction
Tracking function With onboard object tracking module, FH230 TR is able to track static or moving target easily. Just put the object you want to track in the screen, move the cursor to... -
Page 4: 3、 G I M B A L D E S C R I P T I O N
Gimbal [2]Yaw Axis Motor [3]Pitch Axis Motor [4]HD Zoom Camera Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: 4、Packing List
Packing list gimbal*1 screw pack*1 M3*5mm half round inner six angle screw *12 Copper pillar*4 Damper*12 DIMENSIONS unit：mm 115.8 103.5... -
Page 6: 6、Installing
Installation Mechanics@Electronic characteristics 330mA@12v voltage Static Dynamic 450mA@12V Temperature -20 ~+80 732g Size weight L115.8*W103.5*H147.3mm Working Characterastic Pitch：-90° ~+90° Yaw：-150°~+150° Control Precision：Pitch: ±0.02° Yaw: ±0.03°... -
Page 7: 9、Gimbal Hub B
Gimbal Hub size：49*45.4*35.7 unit：mm Notice：HDMI output 1080P60FPS， TF card supports CLASS10 128G，FAT32 or exFAT。... -
Page 8: 10、Gimbal Signal Wire Box
Gimbal Signal wire box HDMI : micro HDMI OUTPUT 1080P 60fps default SD card: max 128G ,class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 115200/8/1/N... - Page 9 S.bus/Rx:connect to Rx2 for track function. ( S.bus/Rx 用 户 不 可 用 ， 默 认 出厂与RX2连接，用做跟踪功能） Roll/ Tx:connect to Tx2 for track function. ( Roll/ Tx 用户不可用，默认出厂 与TX2连接，用做跟踪功能） Pitch:PWM in, pitch control ( 俯仰控制，PWM 输入） 1 pitch up 俯仰向上 2 pitch stop 俯仰停止...
- Page 10 Mode:change the speed / home position (调整云台控制速度/一键回中） Position 1： lowest speed for pitch and yaw. 云台低速） Position 2: middle speed for pitch and yaw.(云台中速） Position 3: highest speed for pitch and yaw. the speed is continuously quickly from 1 to 3. (云台高速 ）...
- Page 11 Pic/Rec picture / start record stop record （拍照 ， ， 开始录像 ， 停止录像） Switch 2 to 1 start record / stop record.( 2 从 切到 ,开始录像，再切一次， 停 止录像） start record, the OSD display rec hh:mm:ss ; (录像开始后，会显 示录像时间） Stop record, the OSD display STBY. (录像停止后，显示STBY) Switch 2 to 3: take a picture .
-
Page 12: Zoom Camera
Zoom Camera Imager sensor 1/2.8-typeExmor R CMOS Lens Picture quality Full HD 1080p (1920 x 1080) Colour: 0.01 lx(F1.6, AGC on, Minimum 1/30 s) illumination* Digital zoom 12x (360x with optical zoom) ● Defog Image sensor 1/2.8-type Exmor R CMOS Image sensor(Number Approx.2.13 Megapixels of effective pixels) - Page 13 Shutter speed 1/1 s to 1/10,000 s, 22 steps Internal Sync system Auto, Manual, Priority mode Exposure control (shutter priority & iris priority), Bright, EV compensation, Slow AE Backlight compensation Aperture control 16 steps Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor White balance Lamp (Fix/Auto/Outdoor Auto), One-push, Manual...
-
Page 14: Gps Data Overlay And Serial Port Wiring Diagram
GPS data overlay and serial port wiring diagram GPS Baud Rate 9600,8,1，无 S.bus/Rx Serial ports will be needed(marked by the black box, see photo above),please connect RX1 and RX2,TX1 and TX2,with wire jumper.TX and RX from external serial cableconnect to TX3 and RX3 respectively.
