- Page 1 V1.0 2023.05 SYK-10 AI-TIRM EO IR Laser Rangefinder Camera User Manual...
-
Page 2: Using This Manual - Legend
Using this Manual – Legend Important Tips Explanation... - Page 3 Caution 1. When not in use, store the SYK-10 AI-TIRM in the package box. The storage environment is a relative humidity less than 40% at a temperature of 20±5° C. If the lenses fog up. The water vapor will usually dissipate after turning on the device for a while.
- Page 4 Catalog Introduction Synopsis Characteristics Overview Installation Configuring & Updating Firmware Configuring the Camera Updating Firmware Appendix Specifications...

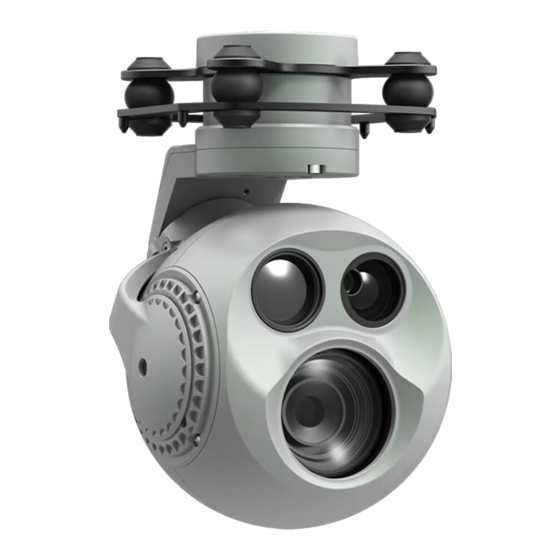

- Page 6 Introduction EO/IR Dual Sensor & 10X Optical Zoom SYK-10 AI-TIRM is equipped with a high-precision 3-axis gimbal, featuring a 10x optical zoom camera and a 640x512 thermal imaging camera. It is capable of capturing visible light and thermal imaging simultaneously, providing more detailed and comprehensive images.
- Page 7 SYK-10 User Manual Overview 1. Damping Platform 2. Thermal Camera 3. Zoom Camera 4. Laser Range Finder 5. Update Port 6. Control Port 7. MicroSD Card Slot...
-
Page 8: Installation
User Manual Installation Remove the control port protector. 2. Align and insert the 4 pins into the locating holes of the mount platform. Press down the lock catch to fix the gimbal. The gimbal can be also fixed with screws through the holes on the damping platform. Plug the gimbal control cable into the control port and install the port protector back. -
Page 9: Configuring The Camera
User Manual Configuring & Updating Firmware Ensure the gimbal and the GCU have both been updated to the latest firmware before use. Otherwise, usage may be affected. Ensure the diver of the config module is installed on the computer before configuring or updating the firmware. Before configuring, the computer should be set to a static IP address, which is in the same network segment with the GCU and the camera (without IP address conflicts). - Page 10 User Manual IP Address / Gateway Camera IP Address / Camera Gateway. Udp target / Udp port Should be configured while the stream is in UDP mode. Stream Bitrate Image transfer rate, which is in the unit of bps. The higher the stream bitrate, the clearer the transferred image, yet the higher request to the bandwidth of the image transmission system.The recommended range is [2048~8192].
-
Page 11: Updating Firmware
User Manual Updating Firmware Connect the gimbal and the GCU with the gimbal control cable. Connect the computer and the gimbal update port with the config module. Power on the devices. Open GimbalConfig software. Choose the COM port corresponding to the config module. -
Page 12: Appendix Specifications
User Manual Appendix Specifications General Product Name SYK-10 AI-TIRM Dimensions 96.4 x 96 x 147mm Weight 608g Operating Voltage 14 ~ 53 VDC Power 10.5W(AVG, ranging off) / 55W(Peak, ranging on) Mounting Downward / Upward Gimbal Gimbal Type 3-axis Nonorthogonal Mechanical Stabilization Angular Vibration Range ±0.01°... - Page 13 User Manual Laser Range Finder Wavelength 905nm Max Laser Power Beam Angle 3.5mrad Laser Safety Class 1M（IEC 60825-1:2014） Measurement Accuracy ±1.0m 5-1200m(φ12m vertical surface with 20% Measuring Range reflectivity) AI Multi-object Detection & Tracking Object Size 16x16 ~ 128x128 px Object Identification Delay ＜...
