- Page 1 SYK-10L 4K User Manual V1.0 2023.07...
- Page 2 Using this Manual – Legend Important Tips Explanation...
- Page 3 Caution 1. The SYK-10L 4K equipped with a laser night vision module, which is a Class 3B invisible laser. DO NOT exposure eyes to the beam within 12 meters or observe the beam by any optical instrument. DO NOT place any inflammable within 20 centimeters in front of the lighting module.
-
Page 4: Table Of Contents
Catalog Introduction Synopsis Characteristics Overview Installation Configuring & Updating Firmware Configuring the Camera Updating Firmware Appendix Specifications... -
Page 6: Introduction
Thanks to the laser night vision module, the SYK-10L 4K can provide a clear image even in complete dark environments. The SYK-10L 4K have target tracking functions. The gimbal camera can constantly track the target selected on screen. -

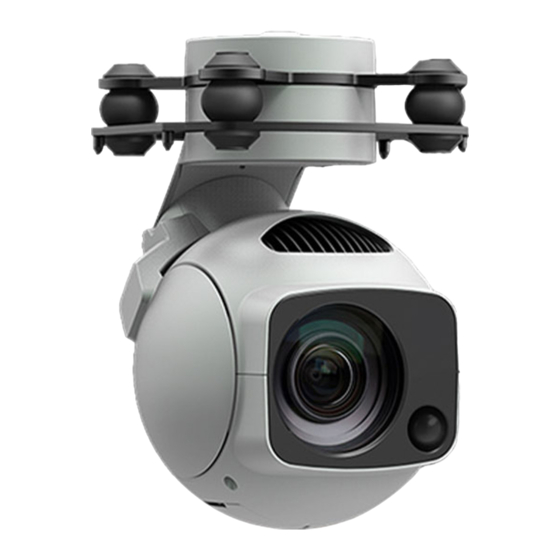

Page 7: Overview
SYK-10L 4K User Manual Overview 1. Damping Platform 2. Heatsinkz 3. Zoom Camera 4. Laser Lighting Module 5. Update Port 6. Control Port 7. MicroSD Card Slot 2023 FOXTECH All Rights Reserved 2... -
Page 8: Installation
Avoid squash the cable while installing the port protector. Ensure the microSD card slot cover is firmly in place to prevent dust or moisture entering during usage or storage. The MicroSD card should be configured as HDD-FAT32 mode. 2023 FOXTECH All Rights Reserved 3... -
Page 9: Configuring & Updating Firmware
4. Download and install plugin as prompt after login. After installation, the web page will refresh and display live view of the camera. Click Setup to set the camera. The interface is as follow. 2023 FOXTECH All Rights Reserved 4... - Page 10 BLC (Backlight Compensation), HLC (Highlight Compensation) and WDR (Wide Dynamic Range). WB (White Balance) The D-80 provides multiple WB modes to adapt different applications. Zoom / Focus Digital Zoom Enable / disable digital zoom 2023 FOXTECH All Rights Reserved 5...
- Page 11 Bit Rate Type: CBR (Constant Bit Rate) or VBR (Variable Bit Rate). The image quality can only be set in VBR mode. The bit rate type can only be set as CBR in MJPEG encode mode. 2023 FOXTECH All Rights Reserved 6...
- Page 12 Set if the GNSS coordinates are displayed on live view. User can adjust the positions of the coordinates by dragging it on preview. 3. Network - General TCP/IP Host Name: Set the name of current camera, no longer than 15 characters. 2023 FOXTECH All Rights Reserved 7...
-
Page 13: Updating Firmware
2. Open GimbalConfig software. Choose the COM port corresponding to the config module. Click "Open Port" and confirm the software and the gimbal are connected. 3. Click "Open Firmware" , choose the firmware file, click "Start Upgrade" and wait for the updating complete. 2023 FOXTECH All Rights Reserved 8... -
Page 14: Appendix Specifications
Object Identification Distance Person: 289.8 m, Vehicle: 308.9 m Object Verification Distance Person: 144.9 m, Vehicle: 190.4 m Laser Night Vision Wavelength 850±10 nm Effective illumination ≤ 200 m distance Beam Angle 8° Laser Safety Class 3B (IEC 60825-1:2014) 2023 FOXTECH All Rights Reserved 9... - Page 15 ONVIF, HTTP, RTSP, TCP, UDP, RTP Storage Supports a Speed Class 10 MicroSD card with a Supported SD Cards capacity of up to 128GB Environment Operating Temperature -20℃～ 50℃ Storage Temperature -40℃～ 60℃ Operating Humidity ≤ 85%RH（Non-condensing） 2023 FOXTECH All Rights Reserved 10...
