Summary of Contents for Foxtech Map-01

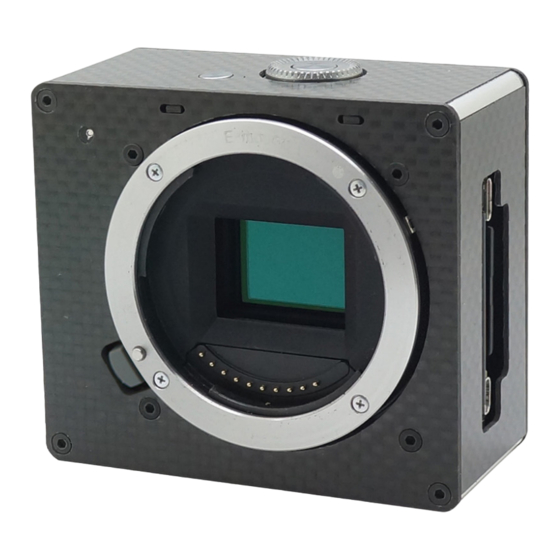

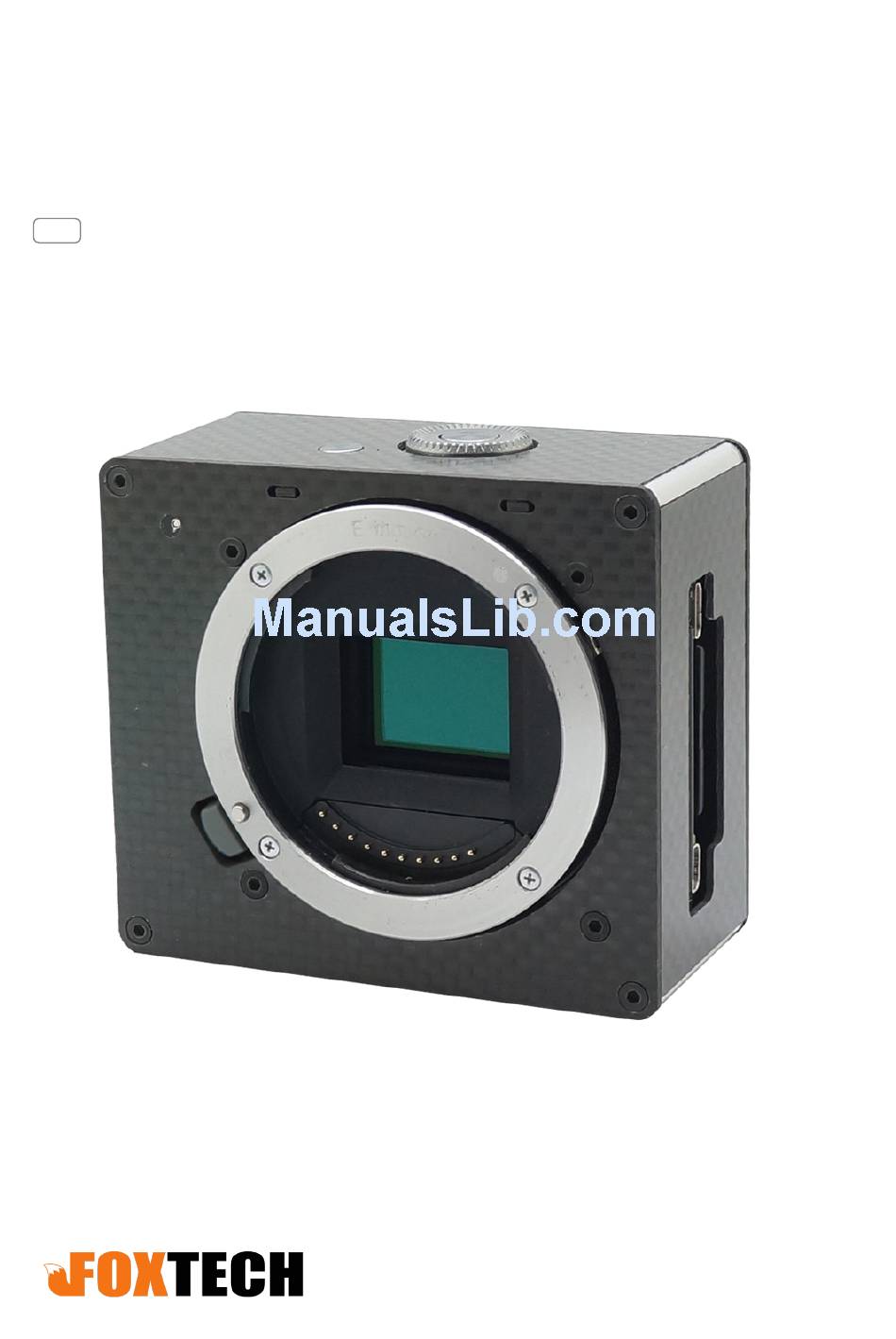

- Page 1 FOXTECH Map-01 Mapping Camera User Manual 2018.04 V1.1...
-
Page 2: Table Of Contents
FOXTECH Map-01 Mapping Camera User Manual Contents Warning Checking the Supplied Items Identifying Parts Optional Mapping Lens Specifications Attaching/Removing the Lens Attaching the Lens Removing the Lens Power Supply for Camera Set Camera Date Set Camera Language Set Exposure Time Save Settings of the Camera Connect Camera to Pixhawk 2.1 and Reach PPK&RTK... -
Page 3: Warning
FOXTECH Map-01 Mapping Camera User Manual Warning To reduce fire or shock hazard, do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet. -
Page 4: Identifying Parts
FOXTECH Map-01 Mapping Camera User Manual Identifying Parts ① ② ⑧ ⑤ ⑨ ⑥ ⑩ ⑦ ③ ④ ① Setting ⑥ SD Card 1) Do not cover this part during moive recording. ② Menu ⑦ USB 2) Do not touch this part directly ③... -
Page 5: Optional Mapping Lens
FOXTECH Map-01 Mapping Camera User Manual Optional Mapping Lens E16mm F2.8 E20mm F2.8 E25mm F5.6 E35mm F1.8 © 2018 FOXTECH All Rights Reserved... -
Page 6: Specifications
FOXTECH Map-01 Mapping Camera User Manual Specifications Map-01 Mapping Camera Item Name Exmor APS HD CMOS APS Frame(23.5*15.6mm) Sensor Type 24.3 MP Number of Pixels(Effective) 16:9 Image Size(Pixels) L(20M): 6000×3376 L(24M): 6000 4000 M(10M): 4240×2400 M(12M): 4240 2832 S(5.1M): 3008×1688... -
Page 7: Attaching/Removing The Lens
FOXTECH Map-01 Mapping Camera User Manual Attaching/Removing the Lens Lens are optional. For purchase please contact Foxtech sales. Attaching the Lens Fig.1 Fig.2 Fig.3 1. If the cap or the packaging lid is attached, remove it from the camera or the lens.(Fig.1) •... -
Page 8: Removing The Lens
FOXTECH Map-01 Mapping Camera User Manual Removing the Lens Lens Release Button Press the lens release button all the way in and turn the lens counterclockwise until it stops. • If dust or debris gets inside the camera while you are changing the lens and adheres to the surface of the image sensor (the part that converts the light source to a digital signal), it may appear as dark spots on the image, depending on the shooting environment. -
Page 9: Power Supply For Camera
FOXTECH Map-01 Mapping Camera User Manual Power Supply for Camera Power Connection: Connect the 3S-6S (DC11.2V-DC25V) positive wire to camera Pin 2(+), and negative wire to camera Pin 1(GND-). Don't operate the camera immediately after power-on. After 15s self-checking, the camera will acquire the usual parameters for mapping, and it can meet he requirements of most missions. -
Page 10: Set Camera Language
FOXTECH Map-01 Mapping Camera User Manual Set Camera Date 1. Check that [Enter] is selected on the screen, then press on the control wheel. 2. Set [Date/Time Setup] and [Date Format], then press • When setting [Date/Time], midnight is 12:00 AM, and noon is 12:00 PM. -
Page 11: Save Settings Of The Camera
FOXTECH Map-01 Mapping Camera User Manual Save Settings of the Camera Move down the switch when the camera is powered to save settings, move up the switch when the power is attached will re-power the camera with new settings. Connect Camera to Pixhawk 2.1 and Reach PPK&RTK... -
Page 12: Notes On Using The Camera
Be particularly careful of the lens. This content is subject to change. Download the latest version from https://www.foxtechfpv.com/foxtech-map-01-camera.html For everyday updates, please follow Foxtech facebook page"Foxtechhobby". YouTube Channel: Foxtech © 2018 FOXTECH All Rights Reserved...
