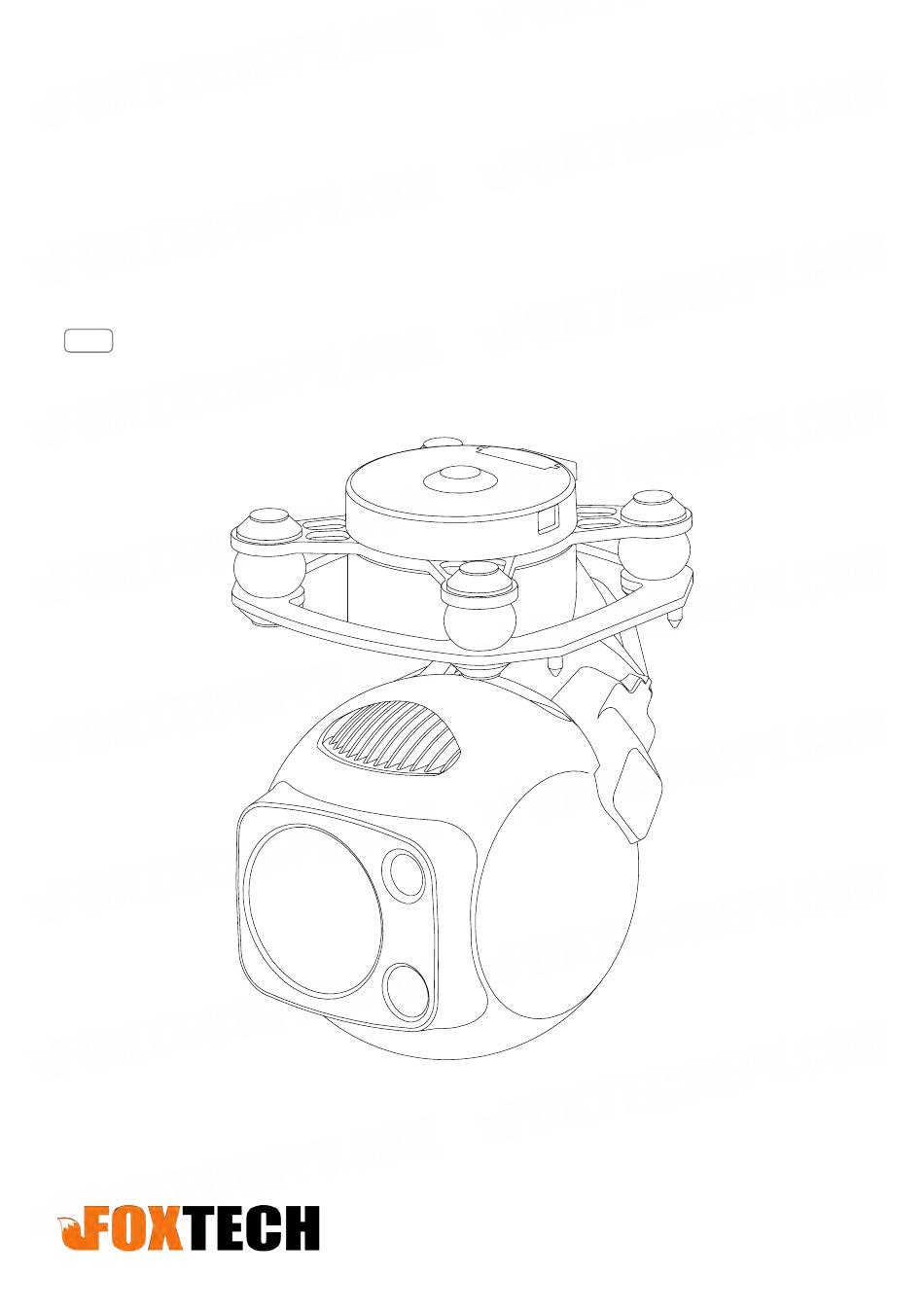

- Page 1 SYK-10L AI User Manual 2023.07 V1.0...
-
Page 2: Using This Manual - Legend
Using this Manual – Legend Important Tips Explanation... - Page 3 Caution 1. The SYK-10L AI equipped with a laser night vision module, which is a Class 3B invisible laser. DO NOT exposure eyes to the beam within 12 meters or observe the beam by any optical instrument. DO NOT place any inflammable within 20 centimeters in front of the lighting module.
- Page 4 Catalog Introduction Synopsis Characteristics Overview Installation Configuring & Updating Firmware Configuring the Camera Updating Firmware Appendix Specifications...
- Page 6 30x zoom camera. User can quickly switch to a highly magnified zoom camera view after recognizing a target in a wide camera view. Thanks to the laser lighting module, the SYK-10L AI can provide a clear image even in complete dark environments.

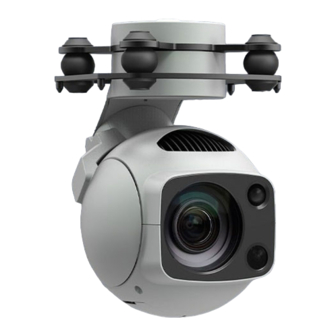

- Page 7 SYK-10L AI User Manual Overview 1. Damping Platform 2. Heatsinkz 3. Zoom Camera 4. Wide Camera 5. Laser Lighting Module 6. Update Port 7. Control Port 8. MicroSD Card Slot 2023 FOXTECH All Rights Reserved 2...
-
Page 8: Installation
Avoid squash the cable while installing the port protector. Ensure the microSD card slot cover is firmly in place to prevent dust or moisture entering during usage or storage. The MicroSD card should be configured as HDD-FAT32 mode. 2023 FOXTECH All Rights Reserved 3... -
Page 9: Configuring The Camera
IP address in the URL should be replaced with the current camera IP address). 3. Configure the camera in the web page, and click"save"to enable the configuration. 2023 FOXTECH All Rights Reserved 4... - Page 10 Image storage rate, which is in the unit of bps. The higher the storage bitrate, the clearer the storage image, yet the higher request to the storage rate of the MicroSD card.The recommended range is [2048~9216]. 2023 FOXTECH All Rights Reserved 5...
-
Page 11: Updating Firmware
2. Open GimbalConfig software. Choose the COM port corresponding to the config module. Click "Open Port" and confirm the software and the gimbal are connected. 3. Click "Open Firmware" , choose the firmware file, click "Start Upgrade" and wait for the updating complete. 2023 FOXTECH All Rights Reserved 6... -
Page 12: Appendix Specifications
Min Illumination IRCUT on: 0.0015Lux / F1.6 Object Detection Distance Person: 709.4 m, Vehicle: 932.4 m Object Identification Distance Person: 141.9 m, Vehicle: 186.5 m Object Verification Distance Person: 70.9 m, Vehicle: 93.2 m 2023 FOXTECH All Rights Reserved 7... - Page 13 128GB Supported File System HDD-FAT32 Environment Operating Temperature -20℃～ 50℃ Storage Temperature -40℃～ 60℃ Operating Humidity ≤ 85%RH（Non-condensing） * Not supported temporarily and will be supported by firmware updating. 2023 FOXTECH All Rights Reserved 8...
