Specify Gas Ports - Micromeritics TriStar II 3020 Installation Instructions And Checklist

4 Analyzer Preparation
S G P
PECIFY AS ORTS
Unit [n] > Unit Configuration
The analyzer has gas inlets for up to three analysis gases and a dedicated inlet for helium. The gases
connected to the inlets must be specified in the analysis program. If the gases are changed on one of
the inlets, make the same change on the Unit Configuration window. The analysis program must be
kept informed of any changes in gases.

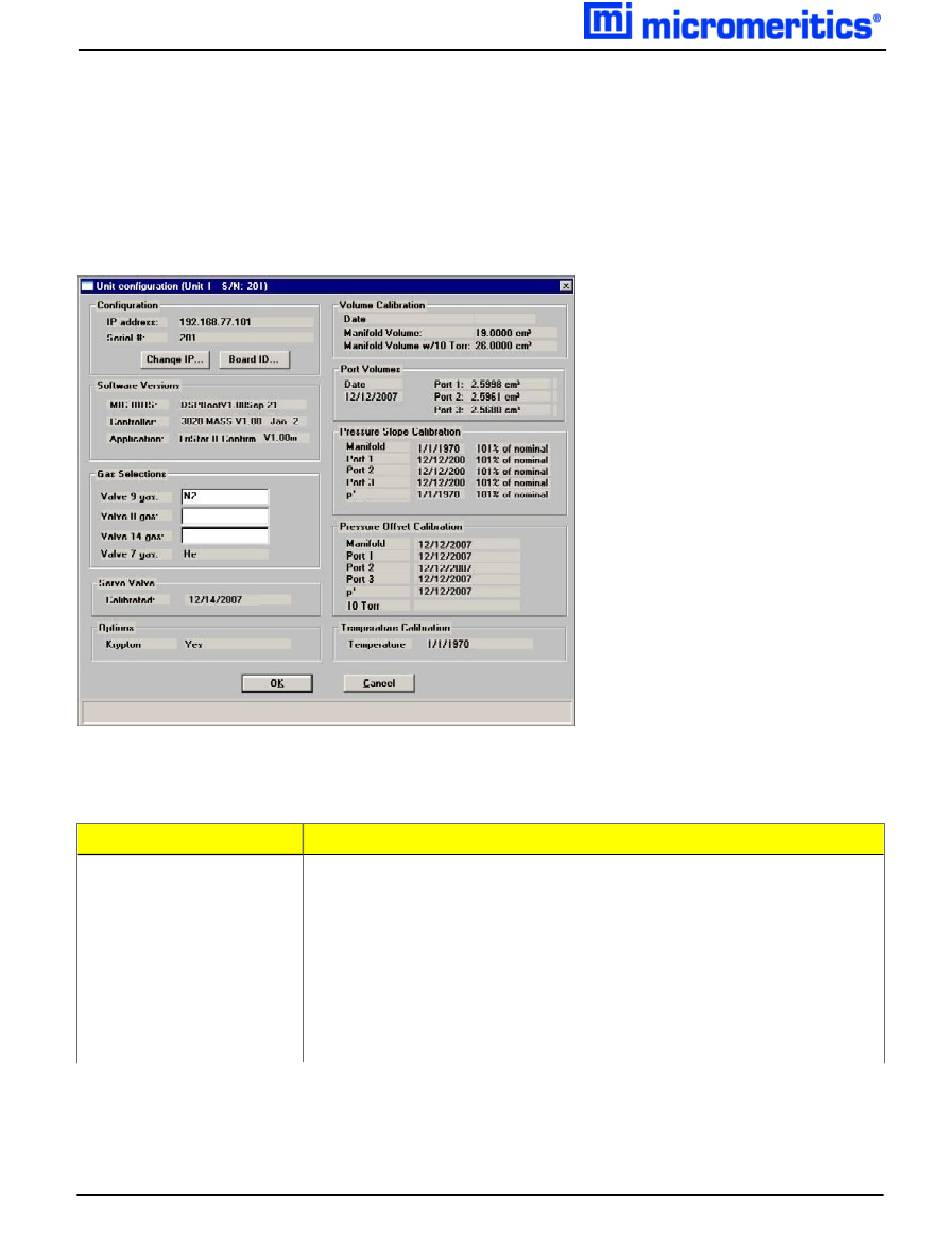

Enter the gas selections and click
Unit Configuration Fields Table
Fields
Configuration
[group box]
4 - 12
OK to save.
Description
Displays the IP address used by the analysis program, serial number,
and type of analyzer.
Change IP. Displays the Unit IP Setup window. The IP address and
subnet mask assigned during installation display. Do not edit these
fields unless instructed by a Micromeritics service representative.
Board ID. Displays information from the electronic circuit boards in the
analyzer. These parameters cannot be edited.
