4 Analyzer Preparation
.

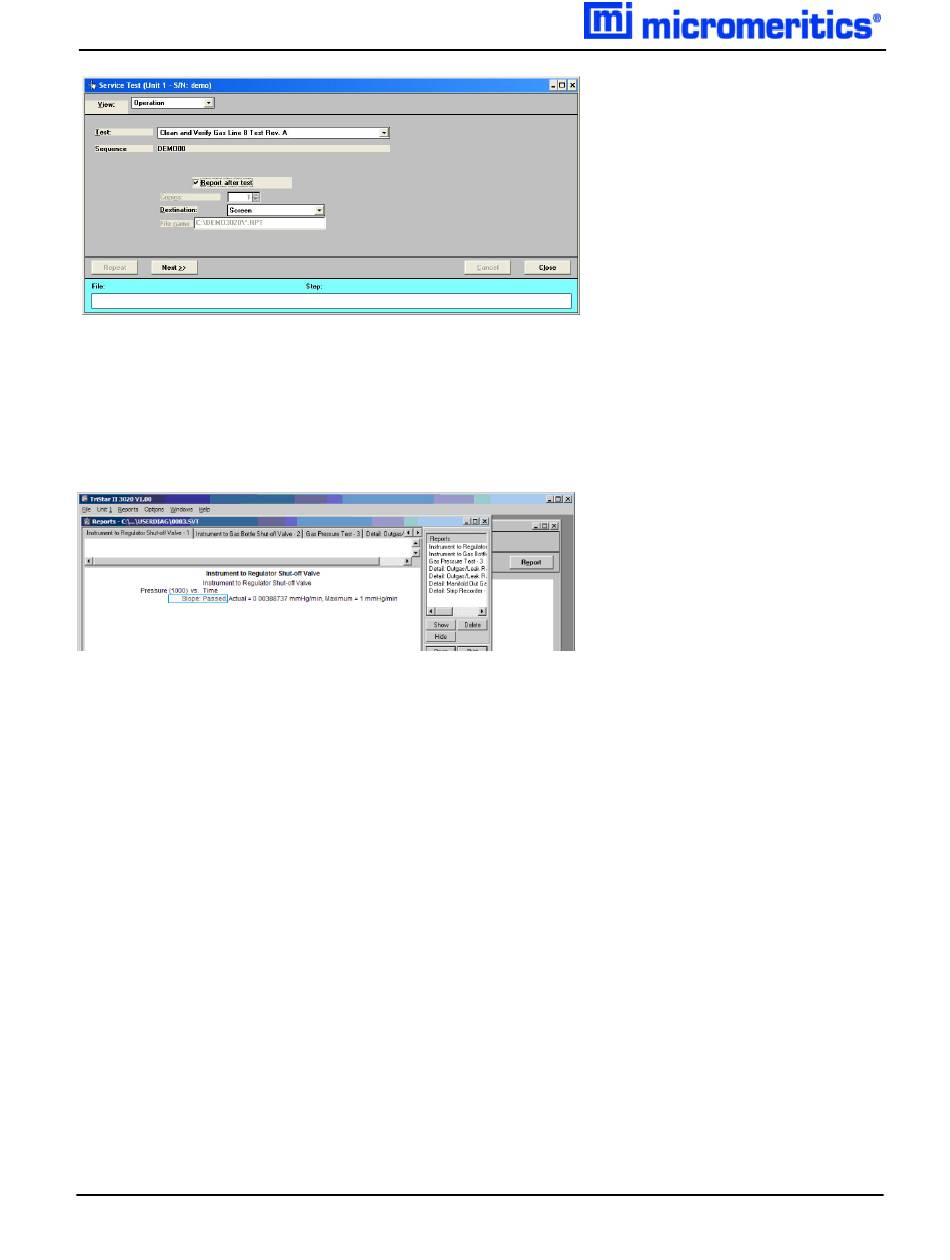

4. Ensure that Report after test is selected and that Screen is chosen as the destination.
5. Click Next.
6. After the test is finished, a prompt indicates the test is complete. Click
7. A test report displays. Click the Instrument to Regulator Shut-off Valve - 1 tab and observe the
Slope field on the report. It should display Passed, indicating that the gas line is clean and leak
free.
If Failed is shown instead, a gas leak is indicated. Check all gas connections from the analyzer
to the regulator shut-off valve. Tighten as necessary, then try the test again.
8. Click the Instrument to Gas Bottle Shut-off Valve - 2 tab and observe the Slope field on the
report. It should display Passed, indicating that the gas line is clean and leak free.
If Failed is shown instead, a gas leak is indicated. Check all gas connections from the analyzer
to the regulator shut-off valve. Tighten as necessary, then try the test again.
9. Click the Gas Pressure Test - 3 tab. This test checks to make sure all valves are in the proper
state. Observe the Minimum field. It should display Passed, indicating that the valves are in the
proper state for operation of the analyzer.
If Failed is shown instead, one or more valves is not in the correct position. Set the valves as
shown below:
4 - 10
TriStar II 3020 Confirm Installation Instructions and Checklist
OK.
302-42870-04 (Rev A) — Sep 2017
