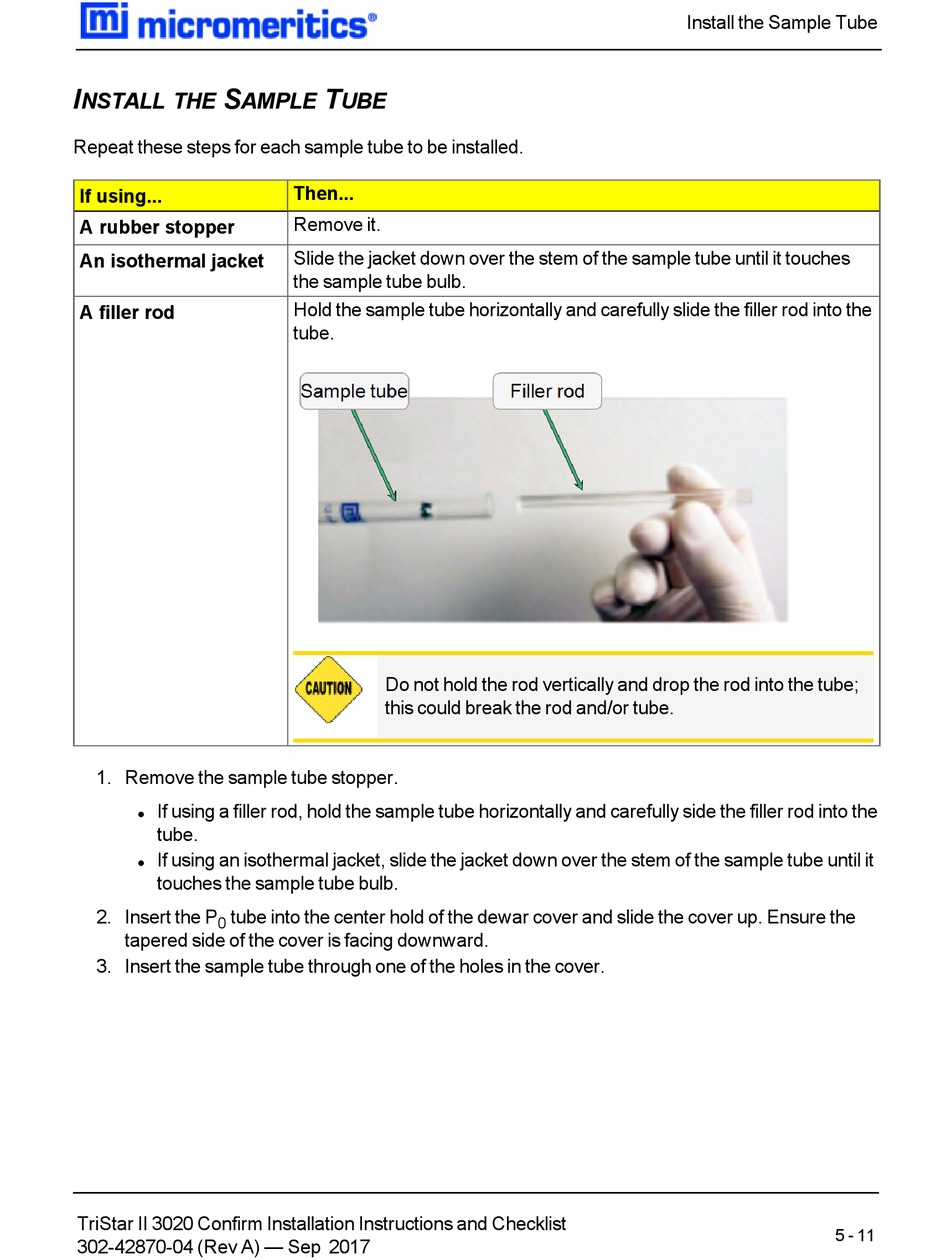

Install The Sample Tube - Micromeritics TriStar II 3020 Installation Instructions And Checklist

I S
NSTALL THE AMPLE
Repeat these steps for each sample tube to be installed.
If using...
A rubber stopper
An isothermal jacket
A filler rod
1. Remove the sample tube stopper.
If using a filler rod, hold the sample tube horizontally and carefully side the filler rod into the
l
tube.
If using an isothermal jacket, slide the jacket down over the stem of the sample tube until it
l
touches the sample tube bulb.
2. Insert the P tube into the center hold of the dewar cover and slide the cover up. Ensure the
0
tapered side of the cover is facing downward.
3. Insert the sample tube through one of the holes in the cover.
TriStar II 3020 Confirm Installation Instructions and Checklist
302-42870-04 (Rev A) — Sep 2017
T
UBE
Then...
Remove it.
Slide the jacket down over the stem of the sample tube until it touches
the sample tube bulb.
Hold the sample tube horizontally and carefully slide the filler rod into the
tube.
Do not hold the rod vertically and drop the rod into the tube;
this could break the rod and/or tube.

Install the Sample Tube
