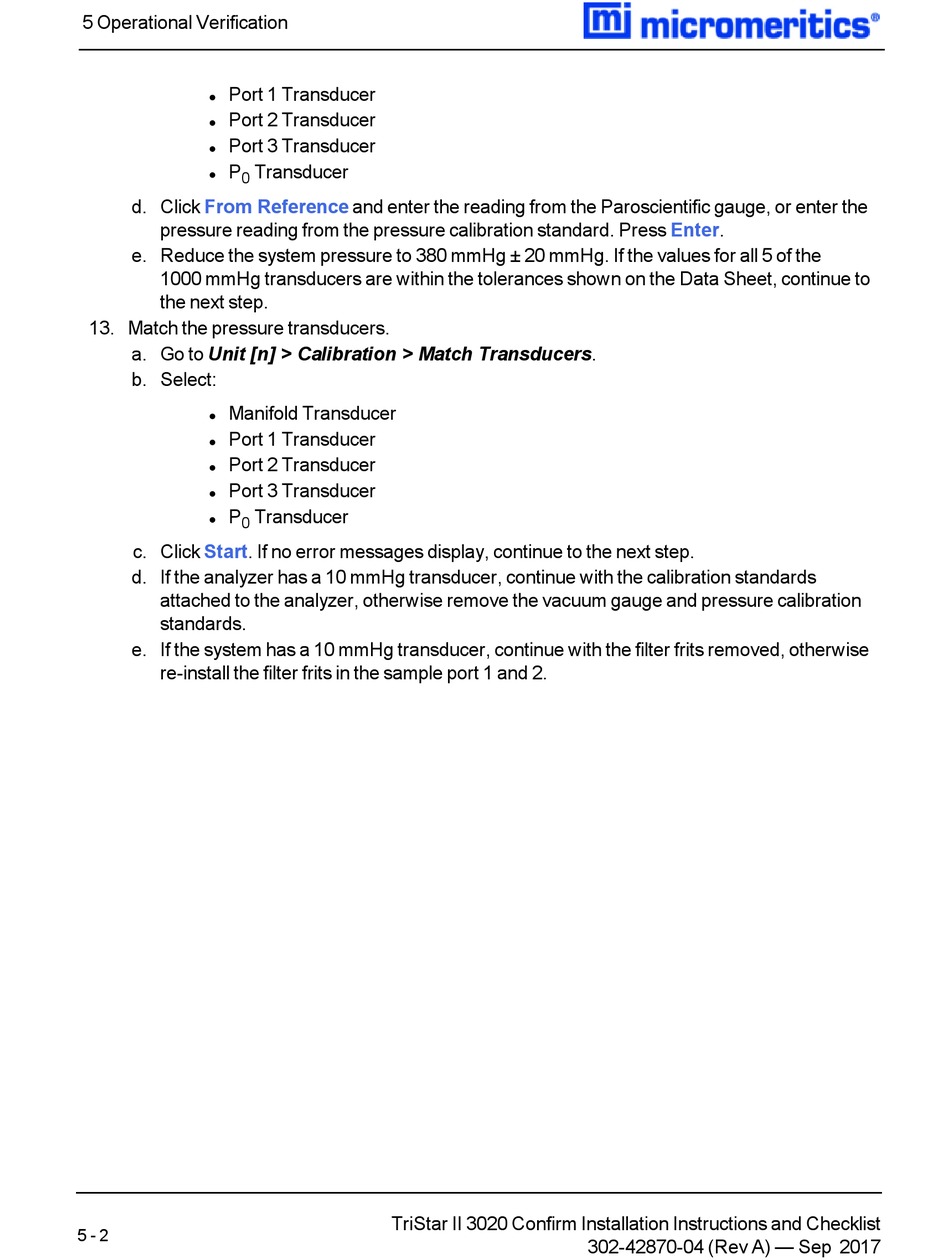

Micromeritics TriStar II 3020 Installation Instructions And Checklist page 40

5 Operational Verification
Port 1 Transducer
l
Port 2 Transducer
l
Port 3 Transducer
l
P Transducer
l
0
d. Click From Reference
pressure reading from the pressure calibration standard. Press Enter.
e. Reduce the system pressure to 380 mmHg ± 20 mmHg. If the values for all 5 of the
1000 mmHg transducers are within the tolerances shown on the Data Sheet, continue to
the next step.
13. Match the pressure transducers.
a. Go to Unit [n] > Calibration > Match Transducers.
b. Select:
Manifold Transducer
l
Port 1 Transducer
l
Port 2 Transducer
l
Port 3 Transducer
l
P Transducer
l
0
c. Click Start. If no error messages display, continue to the next step.
d. If the analyzer has a 10 mmHg transducer, continue with the calibration standards
attached to the analyzer, otherwise remove the vacuum gauge and pressure calibration
standards.
e. If the system has a 10 mmHg transducer, continue with the filter frits removed, otherwise
re-install the filter frits in the sample port 1 and 2.
5 - 2
and enter the reading from the Paroscientific gauge, or enter the
