Main Menu 2; Menu Tree - Swegon COMPACT Air Operation And Maintenance Instructions

6 MAIN
MENU 2

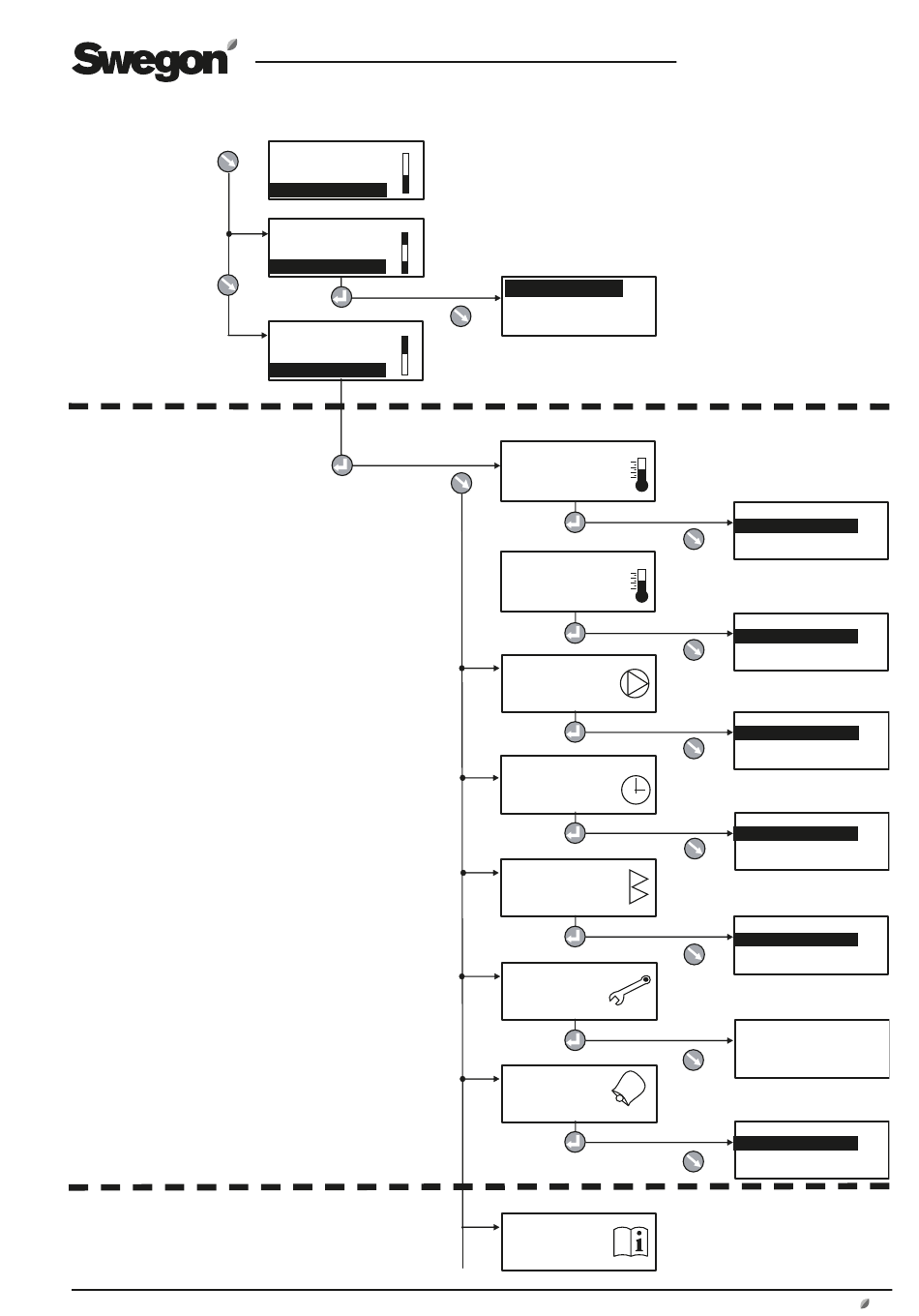

6.1 Menu tree

USER LEVEL
(Section 7)
INSTALLATION LEVEL
(Section 8-16)
Registered design. The company reserves the right to make design changes without prior notice.
COMPACT-A TUE 14:40
STOP
MANUAL OPERATION
STOP?
COMPACT-A TUE 14:40
MANUAL OPERATION
STOP?
MAN/AUTO.OP
COMPACT-A TUE 14:40
STOP?
MAN/AUTO.OP
SETTINGS
Important! The appearance of
the menus varies depending
on the type of air handling
unit and functions selected.
AUTO OPERATION
MANUAL LOW SPEED
MANUAL HIGH SPEED
TEMPERATURE
ALL YEAR COMFORT
FLOW/PRESSURE
SWITCH CLOCK
FILTERS
AIR ADJUSTMENT
ALARMS
INSTALLATION
GB.COMPACTAHSK.210520
*TEMPERATURE*
READINGS
SETTINGS
*ALL YEAR COMFORT*
READINGS
SETTINGS
*FLOW/PRESSURE*
READINGS
SETTINGS
*SWITCH CLOCK*
TIME/DATE
TIME CHANNEL
YEAR CHANNEL
*FILTERS*
READINGS
CALIBRATION
*AIR ADJUSTMENT*
LOCKS FAN SPEED
TIME SETTING: 0 h
*ALARMS*
ACTIVE ALARMS
ALARM HISTORY
www.swegon.com 11
