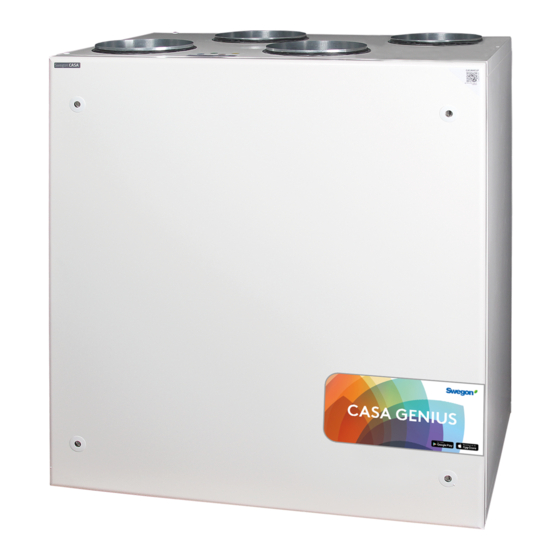

CASA R7 | R9 GENIUS
Installation and commissioning instruction
Notice d'installation et de mise en service
The delivery includes
• Ventilation unit
• Quick Guide
• Installation and commissioning instruction
Standard connections
• Power cord with earthed plug (2 m)
• Freely configurable I/O contacts for connection of
accessories (2 pcs.)
NA_R7_R9_c-i
eManual
Inclus à la livraison
• Unité de ventilation
• Tableau de sélection rapide
• Instructions d'installation et de mise en service
Raccords standards
• Cordon d'alimentation avec prise de terre (2 m ou 6
pieds)
• Contacts I/O configurables pour raccordement
d'accessoires (2 pces)
Swegon CASA App
Advertisement
Table of Contents
Related Manuals for Swegon CASA R7 GENIUS
Summary of Contents for Swegon CASA R7 GENIUS
- Page 1 • Power cord with earthed plug (2 m) • Cordon d’alimentation avec prise de terre (2 m ou 6 pieds) • Freely configurable I/O contacts for connection of • Contacts I/O configurables pour raccordement accessories (2 pcs.) d’accessoires (2 pces) eManual Swegon CASA App NA_R7_R9_c-i...
-
Page 2: Table Of Contents
Content | Sommaire Important information ..............................3 Informations importantes .............................. 4 Preparations before installation | Préparatifs préalables à l’installation ................5 Installation (Mounting on floor) | Installation (Assemblage au sol) .................. 5 Ducts | Gaines ................................6 Duct insulation | Isolation des gaines ..........................6 Electric and control cables | Câblages d’alimentation électrique et de commande .............. -
Page 3: Important Information
Important information This document is intended for everyone involved in the installation work for or the use of a Swegon CASA venti- lation unit. Read User manual before using the ventilation unit. Save the User manual for future use. This docu- ment is available in our website. -
Page 4: Informations Importantes
Ce document est destiné à toute personne impliquée dans l’installation ou l’utilisation d’une unité de ventilation Swegon CASA. Nous recommandons de lire le mode d’emploi avant toute utilisation de l’unité de ventilation. Conserver les instructions d’utilisation pour consultation ultérieure. Ce document est disponible sur notre site Web. -
Page 5: Preparations Before Installation | Préparatifs Préalables À L'installation
R7 | R9 Genius Unboxing The ventilation unit is delivered in a cardboard box. Remove the staples to open the box cover. The best way to take the unit out is by opening the vertical seam of the cardboard box and spreading it out from around the unit. -
Page 6: Ducts | Gaines
R7 | R9 Genius Ducts Install the ducts according to the ventilation drawings. Do not mount ducts directly against structural elements to avoid the propagation of sound. Gaines Installer les gaines conformément aux schémas de ventilation. Pour éviter la propagation du son, éviter tout contact entre les gaines et les éléments structurels du bâtiment. -
Page 7: Electric And Control Cables | Câblages D'alimentation Électrique Et De Commande
R7 | R9 Genius Electric and control cables The ventilation unit has a power cable with grounding plug. The plug serves as the ventilation unit’s main switch and should be connected to an easily accessible wall outlet. There is a modular cable on top of the ventilation unit to control the unit. The maximum length of the modular cable is 40 meters (130 ft.). -
Page 8: Commissioning | Mise En Service
Commissioning Commissioning is done either from the commissioning menu on the control panel or with the Service CASA Swegon mobile application connected to the panel. The application includes a commissioning wizard and option to save the settings for later use. - Page 9 R7 | R9 Genius Air flow adjustment The easiest way to determine the fan control percentages for each ventilation mode is to use the air Flow com- missioning wizard. The function evaluates the initial values of the control for the Home mode, based on the given airflows.
- Page 10 PW: 1, 2, 3, 4 eManual Swegon CASA App Automation connections The unit has a built-in Modbus RTU interface. (Requires an SEM or SEC unit for connection.) More detailed instructions for connections and settings can be found in the mobile application and eManual. A link to the Modbus registers can be found below.
- Page 11 IO5 est de type mise à la terre, l’autre côté du relais doit être connecté à du 24 VDC. Les modules SEM et SEC possèdent une sortie (AO4) analogique (0... 10 V) pouvant servir pour commander des systèmes et périphériques externes. External connections PW: 1, 2, 3, 4 eManual Swegon CASA App 2023-11-16 All rights to changes reserved.
-
Page 12: External Connections | Connexions Externes
R7 | R9 Genius External connections Digital input IO1 - IO5 (pulse) Modbus A Modbus B IO 3 IO1 - IO5 (NO) IO1 - IO5 (NC) IO 4 IO 5 AO 4 5 V Out Analog input 0-10 V IO1 - IO5 (AI) 0-10 V AO 4 Digital / Relay output... -
Page 13: Air Flows | Débits D'air
R7 | R9 Genius Air flows | Débits d’air EN 13141-4 Supply airflow | Air soufflé Extract airflow | Air extrait 100 % Supply air ow Extract air ow 90 % 80 % 70 % 60 % 50 % 40 % 30 % Air flow | Débit d’air 2023-11-16... - Page 14 R7 | R9 Genius Air flows | Débits d’air EN 13141-4 Supply airflow | Air soufflé Extract airflow | Air extrait 100 % Supply air ow Extract air ow 90 % 80 % 70 % 60 % 50 % 40 % 30 % Air flow | Débit d’air All rights to changes reserved.
-
Page 15: Electrical Wiring Diagram | Schéma De Câblage
R7 | R9 Genius Electrical wiring diagram | Schéma de câblage R7 | R9 GREEN GREEN GREEN Mains ORANGE/BROWN BLACK ORANGE/BROWN BLACK SEC / BLACK SET2 WHITE GREEN X10 Supply fan X15 BP X16 F X14 Sensor package SET1 5V/24V X11 Exhaust fan X12 I2C X9 Rotor... -
Page 16: Measurements | Mesures
R7 | R9 Genius Measurements | Mesures 33.7 inch (855 mm) 22.5 inch (571mm) 5.6 inch 12.4 inch 15.7 inch (316 mm) (398 mm) (141) 8” (203) Weight of the unit: 5.6” 14.3 inch 13.9 inch Longueur de l’unité: (141) (362 mm) (352 mm) 214 lbs (97 kg) - Page 17 R7 | R9 Genius Measurements | Mesures 42.5 inch (1080 mm) 31.0 inch (788 mm) 13.5” (343) 7.0” (177) 22.0 inch (560 mm) 10” (254) Weight of the unit: 7.0 inch 17.5 inch 18.0 inch Longueur de l’unité: (177 m) (445 m) (457 mm) 370 lbs (168 kg)
-
Page 20: Product Model Numbers | Numéros De Série Des Modèles
Product | Produit Product code | Code produit GTIN CASA R7 Genius L ex.el RH NA R07VL00G0NH 6430080090808 CASA R7 Genius L ex.el RH NA Sorption R07VL00G0NHAS 6430080090815 Product | Produit Product code | Code produit GTIN CASA R9 Genius L ex.el RH NA...
