CASA R5 GENIUS
Installation and commissioning instruction
Notice d'installation et de mise en service
The delivery includes

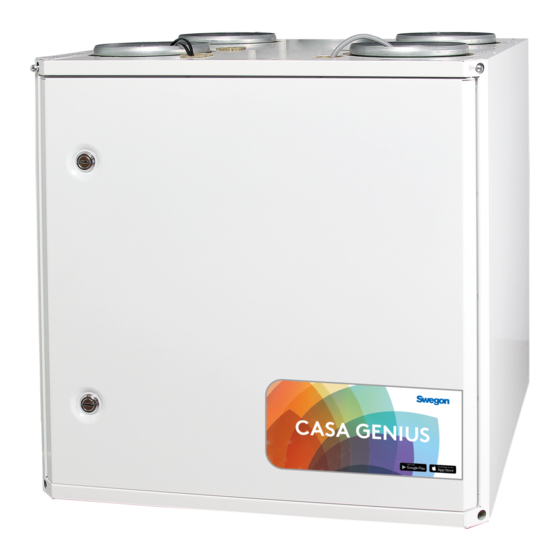

• Ventilation unit
• Anti-vibration mountings (2 pcs.)
• Wall mounting bracket
• Quick Guide
• Installation and commissioning instruction
Standard connections
• Power cord with earthed plug (2 m)
• Modular cable with RJ9 connector (1.5 m)
• Freely configurable I/O contacts for connection of
accessories (2 pcs.)
NA_R5_d-i
eManual
Inclus à la livraison
• Unité de ventilation
• Supports anti-vibrations (2 pièces)
• La console pour montage mural
• Tableau de sélection rapide
• Instructions d'installation et de mise en service
Raccords standards
• Cordon d'alimentation avec prise de terre (2 m ou 6
pieds)
• Connecteur RJ9 pour panneau de commande / hotte de
cuisine
• Contacts I/O configurables pour raccordement
d'accessoires (2 pces)
Swegon CASA App

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CASA R5 GENIUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swegon CASA R5 GENIUS

  • Page 1 CASA R5 GENIUS Installation and commissioning instruction Notice d’installation et de mise en service Inclus à la livraison The delivery includes • Ventilation unit • Unité de ventilation • Anti-vibration mountings (2 pcs.) • Supports anti-vibrations (2 pièces) • Wall mounting bracket •...
  • Page 2: Table Of Contents

    Content | Sommaire Important information ..............................3 Informations importantes .............................. 4 Preparations before installation | Préparatifs préalables à l’installation ................5 Installation (Wall mounting) | Installation (Montage mural) .................... 6 Ducts | Gaines ................................8 Duct insulation | Isolation des gaines ..........................8 Electric and control cables | Câblages d’alimentation électrique et de commande ..............
  • Page 3: Important Information

    Important information This document is intended for everyone involved in the installation work for or the use of a Swegon CASA venti- lation unit. Read User manual before using the ventilation unit. Save the User manual for future use. This docu- ment is available in our website.
  • Page 4: Informations Importantes

    Ce document est destiné à toute personne impliquée dans l’installation ou l’utilisation d’une unité de ventilation Swegon CASA. Nous recommandons de lire le mode d’emploi avant toute utilisation de l’unité de ventilation. Conserver les instructions d’utilisation pour consultation ultérieure. Ce document est disponible sur notre site Web.
  • Page 5: Preparations Before Installation | Préparatifs Préalables À L'installation

    R5 Genius Unboxing The ventilation unit is delivered in a cardboard box. Remove the staples to open the box cover. The best way to take the unit out is by opening the vertical seam of the cardboard box and spreading it out from around the unit.
  • Page 6: Installation (Wall Mounting) | Installation (Montage Mural)

    If the wall is composed of vertical studs and wallboards, the wall must be reinforced with horizontal studs (A) that will support the weight of the unit. Swegon also recommends that the wall be insulated with mineral wool or similar insulation (B) for preventing sound from propagating to other rooms.
  • Page 7 R5 Genius 2023-11-16 All rights to changes reserved.
  • Page 8: Ducts | Gaines

    R5 Genius Ducts Check whether the ventilation unit is a left or right-hand version, to be sure to connect the ventilation ducts to the correct duct connections. Install the ducts according to the ventilation drawings. Do not mount ducts directly against structural elements to avoid the propagation of sound.
  • Page 9: Electric And Control Cables | Câblages D'alimentation Électrique Et De Commande

    R5 Genius Electric and control cables The ventilation unit has a power cable with grounding plug. The plug serves as the ventilation unit’s main switch and should be connected to an easily accessible wall outlet. There is a modular cable on top of the ventilation unit to control the unit. The maximum length of the modular cable is 40 meters (130 ft.).
  • Page 10: Commissioning | Mise En Service

    Commissioning Commissioning is done either from the commissioning menu on the control panel or with the Service CASA Swegon mobile application connected to the panel. The application includes a commissioning wizard and option to save the settings for later use.
  • Page 11 R5 Genius Air flow adjustment The easiest way to determine the fan control percentages for each ventilation mode is to use the air Flow com- missioning wizard. The function evaluates the initial values of the control for the Home mode, based on the given airflows.
  • Page 12 PW: 1, 2, 3, 4 eManual Swegon CASA App Automation connections The unit has a built-in Modbus RTU interface. (Requires an SEM or SEC unit for connection.) More detailed instructions for connections and settings can be found in the mobile application and eManual. A link to the Modbus registers can be found below.
  • Page 13 R5 Genius 2023-11-16 All rights to changes reserved.
  • Page 14: External Connections | Connexions Externes

    IO5 est de type mise à la terre, l’autre côté du relais doit être connecté à du 24 VDC. Les modules SEM et SEC possèdent une sortie (AO4) analogique (0... 10 V) pouvant servir pour commander des systèmes et périphériques externes. External connections PW: 1, 2, 3, 4 eManual Swegon CASA App All rights to changes reserved. 2023-11-16...
  • Page 15 R5 Genius External connections Digital input IO1 - IO5 (pulse) Modbus A Modbus B IO 3 IO1 - IO5 (NO) IO1 - IO5 (NC) IO 4 IO 5 AO 4 5 V Out Analog input 0-10 V IO1 - IO5 (AI) 0-10 V AO 4 Digital / Relay output...
  • Page 16: Air Flows | Débits D'air

    R5 Genius Air flows | Débits d’air EN 13141-4 Supply airflow | Air soufflé Extract airflow | Air extrait Supply air ow 100 % Extract air ow 90 % 80 % 70 % 60 % 50 % 40 % 30 % Air flow | Débit d’air All rights to changes reserved.
  • Page 17: Electrical Wiring Diagram | Schéma De Câblage

    R5 Genius Electrical wiring diagram | Schéma de câblage GREEN GREEN GREEN Mains 6.6 ft BLUE BLACK / BROWN BLUE BLACK / BROWN SEC / BLACK SET2 WHITE GREEN X10 Supply fan X15 BP X16 F X14 Sensor package SET1 5V/24V X11 Exhaust fan X12 I2C...
  • Page 18: Measurements | Mesures

    R5 Genius Measurements | Mesures 0.39” 23.50 inch (10) 23.62 inch (597 mm) (600 mm) 19.17 inch (481mm) 4.65” (117) 6” 152 mm L-model R-model Weight of the unit: Longueur de l’unité: 165 lbs (75 kg) All rights to changes reserved. 2023-11-16...
  • Page 20: Product Model Numbers | Numéros De Série Des Modèles

    Product Model Numbers | Numéros de série des modèles Product | Produit Product code | Code produit GTIN CASA R5 Genius L ex.el RH NA Sorption R05VL00G0NHAS 6430080090785 CASA R5 Genius R ex.el RH NA Sorption R05VR00G0NHAS 6430080090792...
