2.5.2 COMPACT Heat

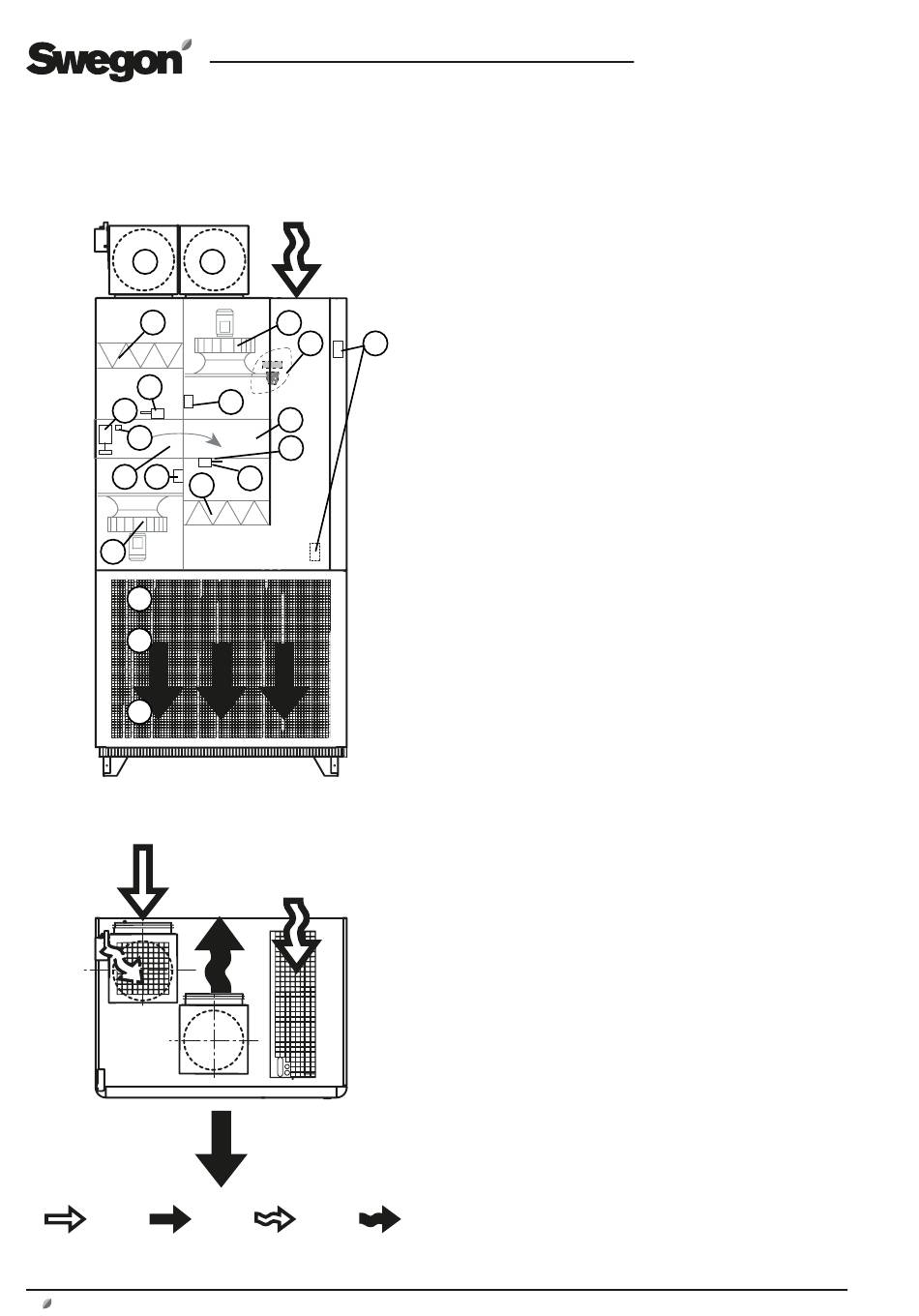

The individual components each specified below in a sim-
plified and diagrammatical description.
19
18
17
16
15
13 14
8
12
9
10
11
Outdoor air Supply air
6 www.swegon.com
20
1
2 3
4
5
6
7
Extract air Exhaust air
Registered design. The company reserves the right to make design changes without prior notice.
The arrangement of the components
and their designations
1
Extract air fan with motor and built-in frequency inverter
2 Control display (on the inspection door)
3 Product identification plate
4 Pressure sensor, extract air fan
5 Electrical equipm. cubicle with control unit
6 VOC sensor
7 Sensor, extract air temperature
8 Extract air filter
9 Electric air heater, (inside the lower section)
10 Sensor, supply air temperature (inside the lower section)
11 Change-over damper with actuator (inside the lower section)
12 Supply air fan with motor and built-in controller
13 Heat exchanger
14 Pressure sensor, supply air fan
15 Sensor, rotation monitor
16 Drive motor, heat exchanger
17 Sensor, outdoor temperature
18 Supply air filter
19 Recirculation section with actuator
20 Louvre damper
