InstAllAtIon And mAIntenAnCe InstruCtIons
Congratulations on having selected
Compact Air!
To ensure that the time we spend
together will be agreeable, it is important
that you first read and understand these
instructions
thoroughly.
1. GenerAl

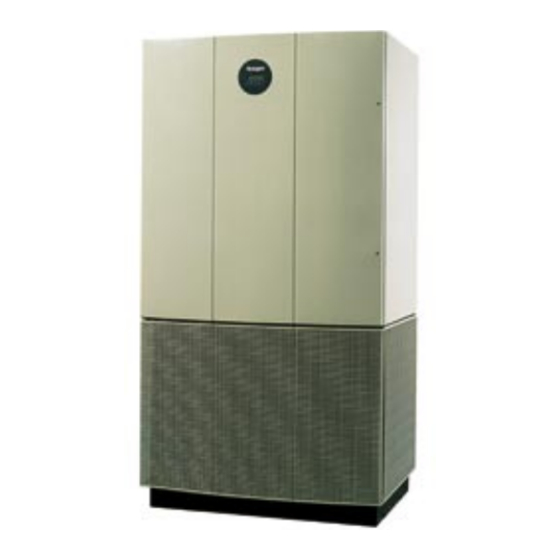

The Compact Air room unit is a complete air hand-
ling unit with supply air and exhaust air fans, supply
air and exhaust air filters, rotary heat recovery unit,
silencers and a built-in, low-momentum air diffuser.
The control equipment is also built-in.
Compact Air is well-suited for use in classrooms,
day nurseries, conference rooms, offices, working
premises, shops, restaurants and other similar public
premises.
Compact Air is available in two sizes: 08 and .
The unit is designed for installation in the room to be
ventilated and is connected to the mains by means
of a plug to an earthed wall socket. The ducts for
outdoor air and extract air can be connected to the
top of the unit and can be run through openings
in the wall.
The unit can be automatically controlled between
the normal flow and low flow rates by means of a
timer (switching clock) or presence detector (acces-
sories). Operational checks and temporary alteration
of the settings can be carried out in a control display
located on the front panel of the unit.
1.2 specification
Whenever you get in touch with Swegon, please
refer to the production number found on the rating
plate inside the unit and the relevant product code(s)
according to the following:
Compact Air room unit
Size 08,
Language variant in display
Swedish
Norwegian
Danish
= 2
Finnish
English
replacement filter
 filter (class F85/EU7)
Specifications are subject to alteration without notice.
Contents
. General ........................................................
2. Technical data .............................................. 2
3. Installation ................................................... 3
5. Commissioning ............................................ 9
6. Maintenance and servicing ......................... 2
7. Alarms and fault tracing ............................. 3
Supply air filter
Supply air fan
suPPlY AIr
CACA-2-aa-bb
extra accessories
CACZ-1-04-7
Outer wall hood
TILLUFT
Presence detector
Electric air heater,  kW
Outer wall hood
7-day timer
Exhaust air connection
Infill piece against ceiling
Separate lower unit section
Air distribution plate
Variant , 2, 3, 4
GB.CACA.050101
Page
AVLUFT
eXtrACt AIr
outdoor AIr
UTELUFT
FRÅNLUFT
eXHAust
AIr
Exhaust air fan
Silencer
Heat recovery
unit
Exhaust air filter
Low-momentum
air diffuser with
silencer
CACZ-1-01
CACZ-1-02
CACZ-1-03
CACZ-1-05
CACZ-1-06
CACZ-1-07
CACZ-1-08
CACZ-1-10-a
www.swegon.se
