9.2.5 Morning BOOST
(applies to COMPACT Heat only)
The unit is utilised to heat the premises during a preset
period prior to the switch-in time set on the switch clock.
The unit starts early and uses the separate settings for
operation and temperature regulation.
The preset time is the time difference between the start of
Morning BOOST to the start of ordinary operation.
Damper output can be set to be inactive. This means that
connected dampers (e.g. outdoor air and exhaust air shut-
off dampers) are not affected. Normally these dampers
are closed when the unit is stopped and thus they remain
closed. The damper in the air recirculation section opens
at the same time.
The extract airflow can be set to Inactive if it is not desir-
able for the extract air fan to operate.
Settings:
Value
Time for start prior to regular
start time according to switch clock
00:00
Damper output
Extract air fan
EA/Room temp*
SA-min*
SA-max*
* If these values are changed, the corresponding values
under Heating will also change.

9.2.6 Setpoint Temperature Displacement

Used for changing the supply air and extract air tempera-
ture setpoints by means of an external 0-10 VDC signal
(control unit terminals 35 (-), 37 (+)). The temperature can
be increased or decreased at certain times of the day by
means of an external switch clock or potentiometer, for
instance.
The setpoint can be influenced ±5 °C.
If the unit is operating in the supply air regulation mode,
the supply air temperature is displaced and if the unit is
operating in the extract air regulation mode, the extract
air temperature is displaced.
When the unit is operating in the ERS regulation 1 mode,
the difference between extract air and supply air is influ-
enced. The difference cannot be less than 0 °C. The differ-
ence will decrease as the input signal increases.
If the unit is operating in the ERS regulation 2 mode, the
supply air setpoint will be offset.

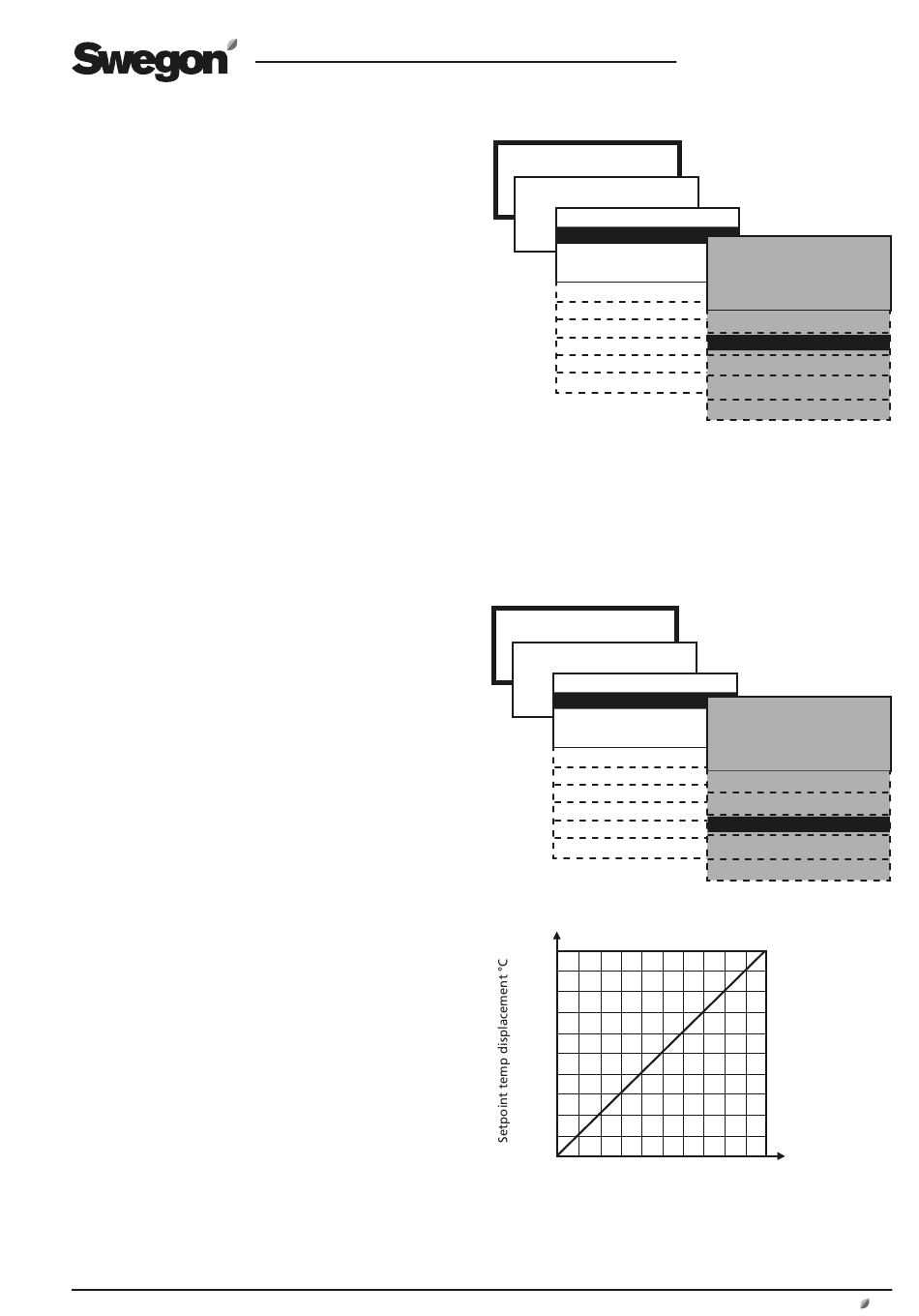

When the function is activated, the setpoint is offset as
illustrated in the chart to the right.
Settings:
Value
Setpoint temp displacement
Registered design. The company reserves the right to make design changes without prior notice.
Setting Factory
range setting
hour, min.
Inactive Inactive
Inactive Inactive
10 - 30 °C 22 °C
8 - 20 °C 15 °C
16 - 50 °C 28 °C
Setting Factory
range setting
Inactive/active Inactive
INSTALLATION
FUNCTIONS
*FUNCTIONS*
TEMPERATURE
AIR FLOW/PRESSURE
FILTER
OPERATION

HEATING

COOLING
IN/OUTPUTS
IQnomic Plus
ALL YEAR COMFORT
INSTALLATION
FUNCTIONS
*FUNCTIONS*
TEMPERATURE
AIR FLOW/PRESSURE
FILTER
OPERATION
HEATING
COOLING
IN/OUTPUTS
IQnomic Plus
ALL YEAR COMFORT
+5
+4
+3
+2
+1
0
-1
-2
-3
-4
-5
0 5
Control signal V DC
Setpoint temp displacement involves:
Control signal 0 V DC: The setpoint is lowered by 5 °C.
Control signal 5 V DC: Unchanged setpoint.
Control signal 10 V DC: The setpoint is increased by 5 °C.
GB.COMPACTAHSK.210520
