Webasto Air Top Installation Guide – AT2000STC

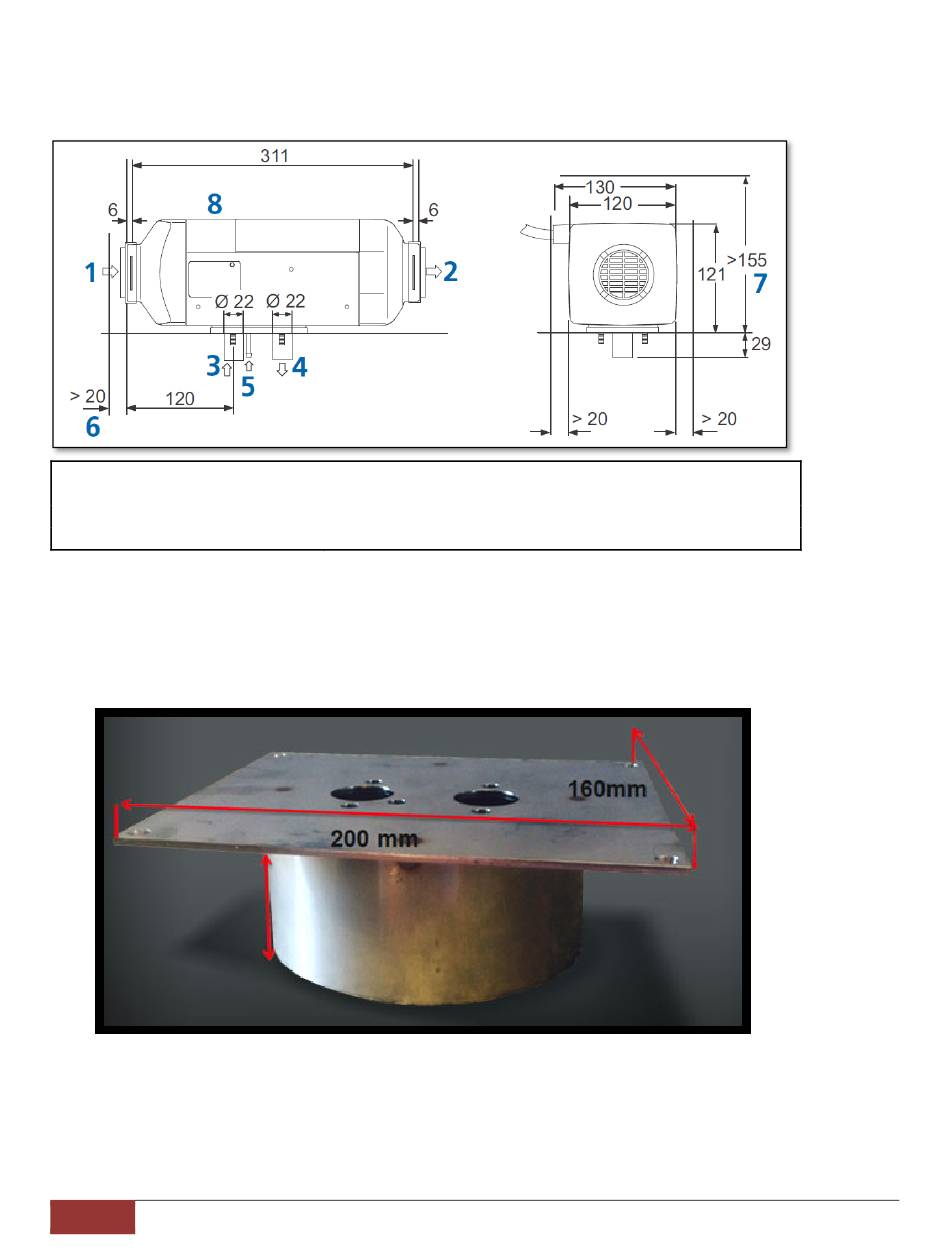

1 Heater & Floor Mounting Bracket Dimensions
1 Heating Air Inlet
2 Heating Air Outlet
3 Combustion Air Inlet
4 Exhaust Gas Outlet
Fig 3
Floor Mounting Bracket
50mm
Fig 4
Air Top 2000STC Installation Guide 2020 | Webasto Thermo & Comfort Australia Pty Ltd.
4
5 Fuel Inlet
6 Space Requirement for Heating Air Inlet
7 Space Requirement for Installation & Removal of Heater
8 Cable Outlet (Optional Right or Left)
Note: All
dimensions in
millimetres
