Webasto Air Top Installation Guide – AT2000STC
2 Step by Step Installation
1. After checking what is under the floor to ensure clearance of tanks, chassis rails etc., Drill the 140mm floor
mount bracket cut out.
2. Assembly of the heater
2.1 Assemble the heater to the bracket with the rubber gasket using the 10mm nuts and washers supplied in the
kit.
(Rubber gasket must be applied to avoid any heat distribution through the vehicle floor)
Fig 5
2.2 Place the heater so the bracket is facing up (Fig 7), you will now notice electrical wires bundled in the
combustion air inlet (Fig 3) (3), these 2 black wires are for the fuel pump.
Air Top 2000STC Installation Guide 2020 | Webasto Thermo & Comfort Australia Pty Ltd.
5
The seal gasket must be replaced each time the heater is removed and reinstalled.

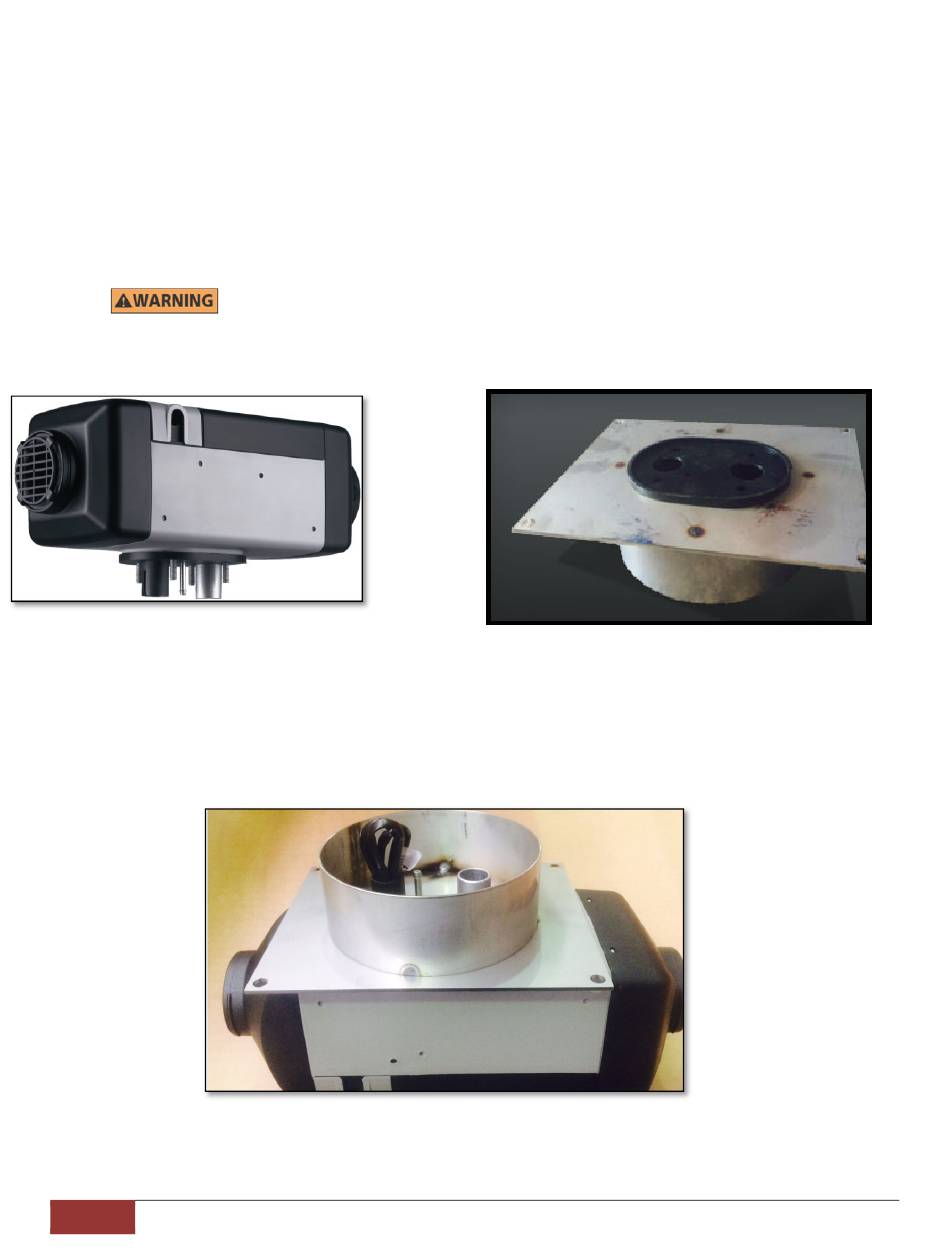

Fig 7 – Bracket facing upwards and notice the wires in the combustion air inlet.
Fig 6
