2.7 Attach the fuel line using the 10mm hose clamp & rubber fuel line connector, fix to the fuel inlet (Fig 3) (5),
then fix the fuel line to the open end of the rubber connector and secure with another 10mm hose clamp.
(Ref: Fig 8).
2.8 Install the stainless steel exhaust pipe, using the 25 mm exhaust clamp to the exhaust gas outlet (Fig 3) (5).
The exhaust pipe temperature is above 250
(fig 11.1). The exhaust must not point in the direction of travel. The exhaust must be secured and away from heat
sensitive components, vehicle fuel lines and harnesses. Webasto can supply exhaust lagging if required

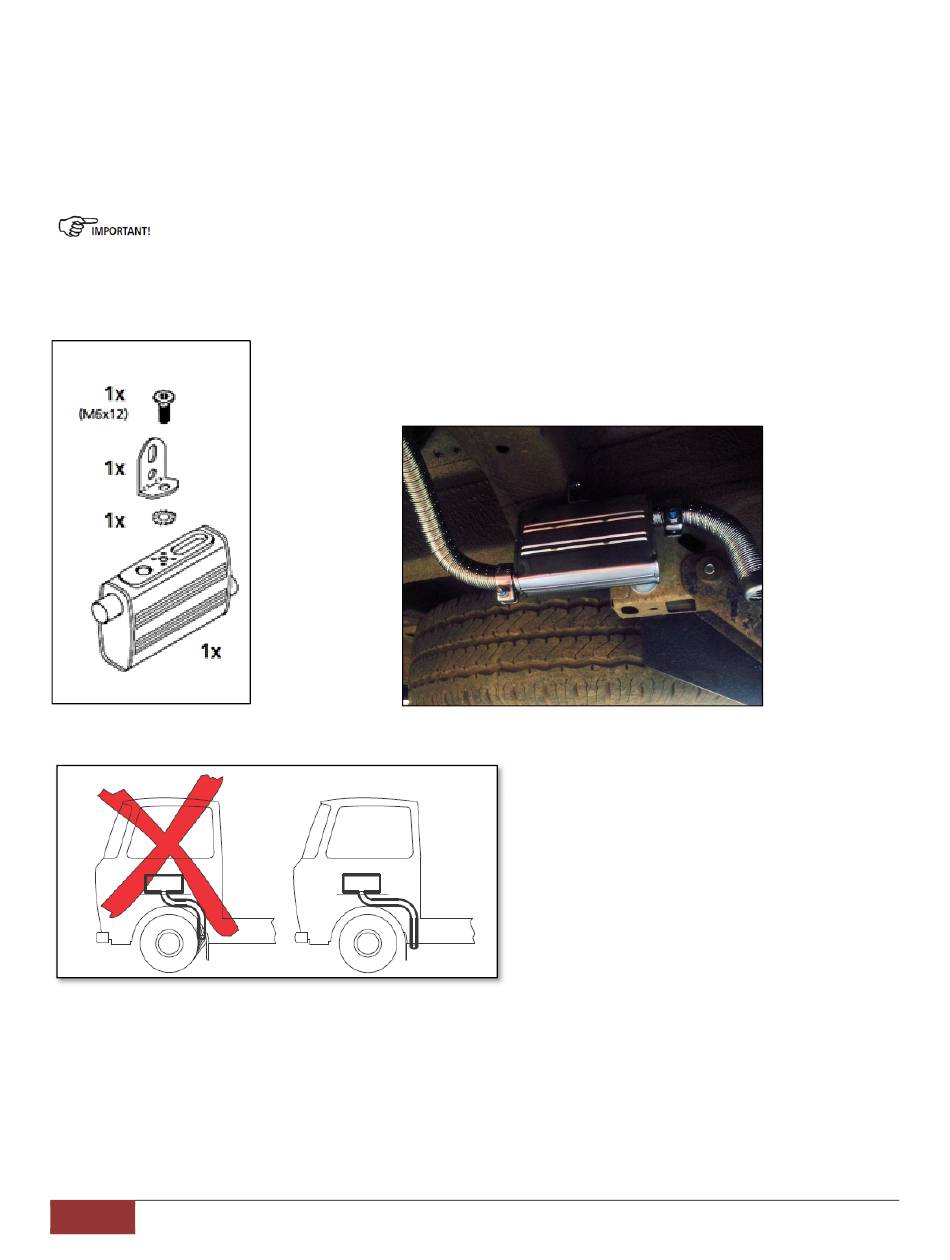

Fig 10 an exhaust muffler is
supplied in the kit.
Air Top 2000STC Installation Guide 2020 | Webasto Thermo & Comfort Australia Pty Ltd.
7
o
C. Ensure that the end cap is properly mounted and pointing downwards
Fig 11 – The exhaust or combustion pipe must be located so that they
cannot be clogged by dirt or road debris
Fig 11.1 – Ensure that the end cap is properly mounted
and pointing downwards on the exhaust pipe.
.
