Bedienungs- und Wartungsanweisung
Operation and Maintenance Instructions

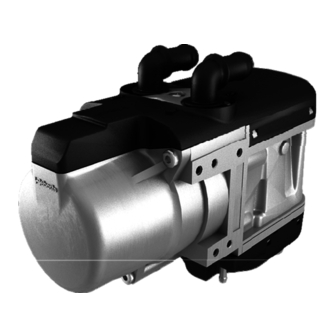

Thermo Top V
Mercedes Benz E-Klasse (BR 212) / E-Class (MR 212)

Advertisement

Table of Contents
loading

Related Manuals for Webasto Thermo Top V

Summary of Contents for Webasto Thermo Top V

  • Page 1 Bedienungs- und Wartungsanweisung Operation and Maintenance Instructions Thermo Top V Mercedes Benz E-Klasse (BR 212) / E-Class (MR 212)

  • Page 2: Table Of Contents

    Content General Information ........21 Maintenance and Safety Instructions .

  • Page 3: General Information

    Operation and Maintenance Instructions Thermo Top V for Mercedes Benz E-Class (MR 212) General Information Dear Webasto customer, We assume that the operation of your new heater unit was explained to your complete satisfaction by the Workshop/Service station that installed it. In these operating instructions we would like to give you an overview once again of the use of the Thermo Top V heater unit.

  • Page 4: Maintenance And Safety Instructions

    Maintenance and Safety Instructions Within the scope of the European Directive 70/156/EWG type approvals have been granted for the Thermo Top V water heating unit in accordance with Directives 2001/56/EG (Heating) and 72/245/EWG (EMC). The unit must be installed in accordance with the accompanying installation instructions.
  • Page 5 Before using the unit again, have it checked by trained Webasto personnel. • be operated for 10 minutes at least once each month with a cold engine and the lowest blower setting.
  • Page 6 Liability Waiver: • Not following the installation instructions and the information contained therein release Webasto from liability. This also applies for non-specialist repairs or when original spare parts are not used. This will result in voiding the type approval of the heater unit and consequently the general...

  • Page 7: Heater Unit Operation

    The heater unit can be operated by a tip switch or radio control remote Telestart T91. The heater unit can also be operated via the telephone with the Webasto Thermo Call option. The function "parked-car ventilation" is not available for the E Class (MR 212).
  • Page 8 The following settings must be made before leaving the vehicle: Temperature “HI” Air outlet “TOP” It is not necessary to pre-select the blower speed.
  • Page 9 NOTE: After the settings are made, another approx. 20 sec. must be waited before the ignition is switched off so that the vehicle saves the settings. On vehicles with a factory-installed alarm system with passenger compartment monitoring, the alarm system must be deactivated before leaving the vehicle. Please refer to the vehicle owner's manual for information.

  • Page 10: Use

    With the Webasto Telestart T91, the heater unit can be switched on and off wirelessly at a range of up to 600 m. When switching on and off, the transmitter should be held as high as possible and vertical. When transmitting, do not cover the antenna with your hand.
  • Page 11 If you determine from the lack of feedback that the operating signal has not reached the vehicle, then you must change your position by a few metres. A higher altitude can also increase the range. The heater will automatically switch off when the selected operating period has elapsed.

  • Page 12: Programming Telestart Transmitter

    Programming Telestart Transmitter 1. Place batteries into the battery compartment of the transmitter. 2. Remove fuse 1A (black) from the heater's fuse holder (voltage interruption). 3. Wait at least 5 seconds. 4. Replace fuse in heater's fuse holder and within 5 seconds press the OFF button on the transmitter for at least 1 second.

  • Page 13: Switching On The Heater

    Switching on the heater Hold the transmitter with the aerial upright and press the ON button until the LED lights up (approx. 1 second). Feedback of the Telestart receiver to the hand-held transmitter. The LED on the hand-held transmitter indicates whether the switch-on signal has been received with short flashing signals (every 2 seconds).

  • Page 14: Feedback From The Transmitter Upon Turning On/Off

    Feedback from the transmitter upon turning on/off The LED on the transmitter The signal has been received and the heater lights up for 2 seconds. switched on or off The LED on the transmitter Error during signal transmission. Change your flashes for 2 seconds.

  • Page 15: Indication

    Indication When the auxiliary heating is switched on with the tip switch or the Telestart T91, the tip switch lights as an indicator. NOTE: When switched on with the button, the operating period last used with the Telestart T91 is always selected.

  • Page 16: Checking And Setting The Operating Time

    Checking and Setting the Operating Time The operating time of the heater can be preset on the transmitter in increments of 10 minutes. The operating time is factory-set at 30 minutes. NOTE: The function "parked-car ventilation" is not available for the E Class (MR 212). We recommend setting the operating time (heating time) according to the drive time.

  • Page 17: Checking The Operating Time

    Checking the Operating Time Simultaneously actuate the ON and OFF buttons within one second three times in rapid succession. NOTE: The first coded flashing signal that is emitted immediately upon the third actuation of both buttons has to be included into the count. The LED flashes in accordance with the preset operating time.

  • Page 18: Returning To The Default Setting

    Returning to the Default Setting Press the ON and OFF buttons simultaneously for approx. 10 seconds until the LED extinguishes. Default setting: heating mode, 30 minutes Checking Battery Press the ON or OFF button. Battery Action Almost Flashes orange for Replace batteries as spent soon as possible or...

  • Page 19: Battery Change

    Battery change See also page 30: "Programming Telestart Transmitter". Note Return batteries of our products after use at the point of purchase or in its immediate vicinity. Returning them is free. As end user you are legally obliged to return used batteries. Caution! Risk of explosion if battery is replaced by an incor- rect type! Dispose of the used batteries according...

  • Page 20: Troubleshooting

    If a fault occurs, check the security and condition of the fuses and the connections. If there is a malfunction, the heater unit switches to defect lock mode. Before you visit a Webasto Service station, try to clear the defect lock. You can rectify the following faults yourself:...

  • Page 21: Fault Reset

    20A the left of the The heater unit is fuse (yellow) transmitter switched on NOTE: The heater unit is switched on when the fuse is replaced. If this action does not correct the fault, please contact a Webasto Service station.
  • Page 22 Webasto AG Postfach 80 D - 82131 Stockdorf Germany Hotline: +49 (0)1805 - 707 400 (€ 0.14 aus dem deutschen Festnetz) Bei mehrsprachiger Ausführung ist e-mail: kundencenter@webasto.de Deutsch verbindlich. http://www.webasto.com In multilingual versions the German Subject to modification language is binding.
