SmartLocker AX
EN

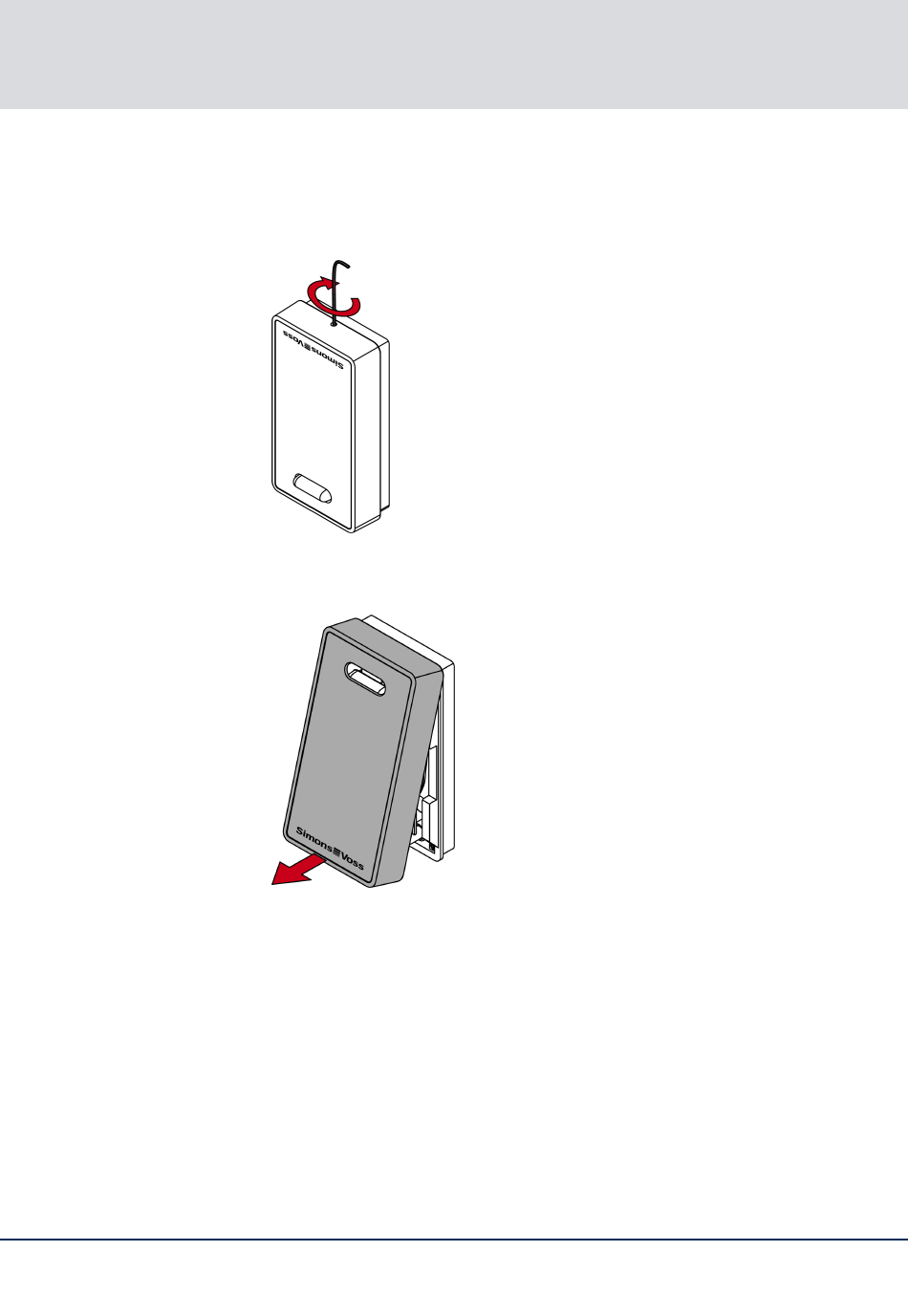

1. Gently press the reader cover against the floor and
screw in the lower screw clockwise until you can lift
off the cover (0.9 mm hexagon).
2. Carefully push the light guide down and remove the
cover.
3. Using needle-nosed pliers, disconnect the plug of
the cable below the circuit board.
4. Disassemble the reader and engine block.
3. Initial operation
