3. Initial operation
38 / 80

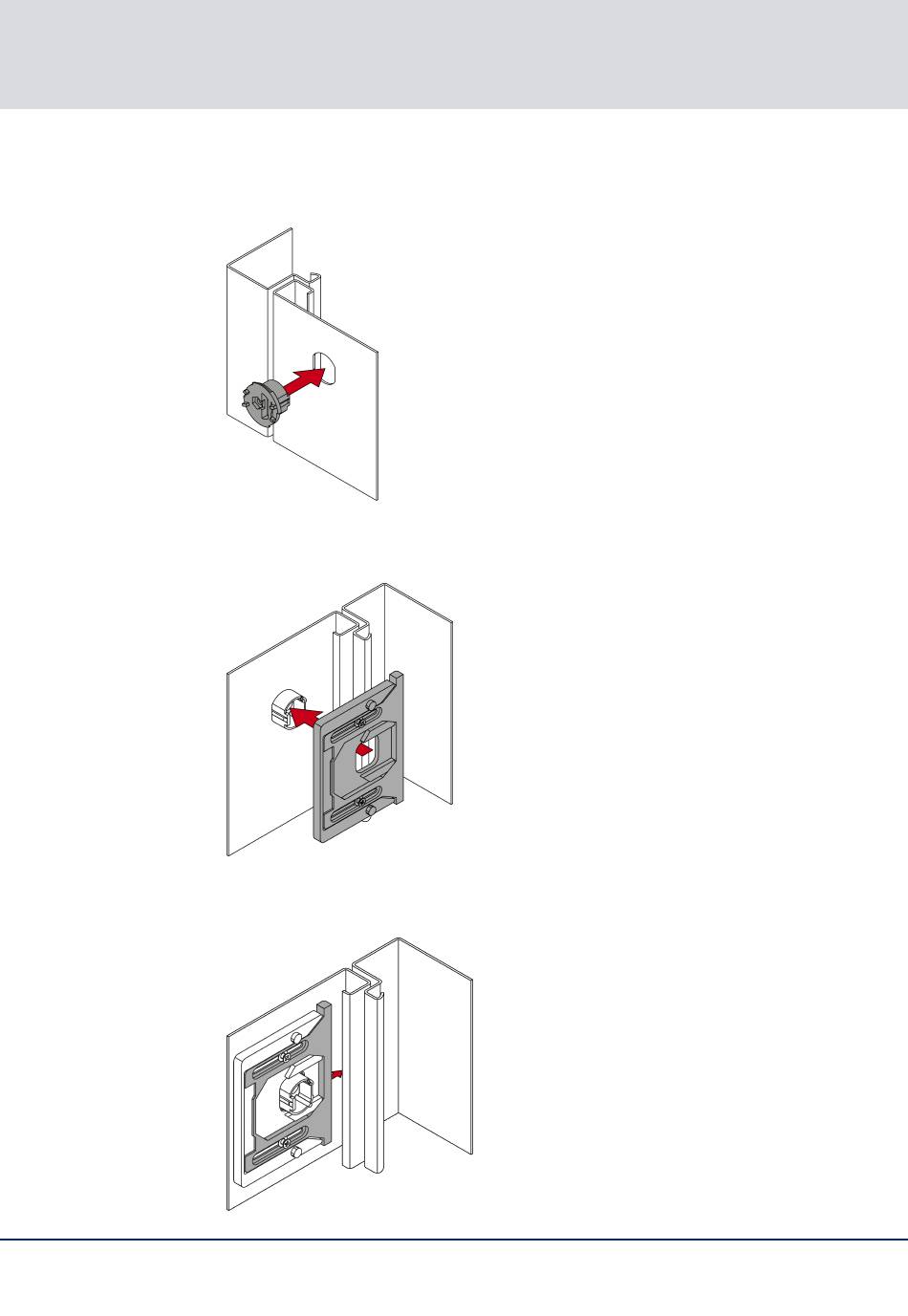

5. Insert the socket into the D-hole (mount for nut
pointing towards the edge of the door).
6. Insert the adapter plate with the parallel forced
guide onto the socket from the rear.
7. Slide the forced guide out until it rests against the
inner edge of the door.
