Installation and Setup Guide
020-103314-05
Griffyn 4K32-RGB

Advertisement

Table of Contents
loading

Related Manuals for Christie Griffyn 4K32-RGB

Summary of Contents for Christie Griffyn 4K32-RGB

  • Page 1 Installation and Setup Guide 020-103314-05 Griffyn 4K32-RGB...
  • Page 2 Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose.

  • Page 3: Table Of Contents

    Turning off the projector..........23 Griffyn 4K32-RGB Installation and Setup Guide 020-103314-05 Rev. 1 (04-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 4 Connecting Christie Link video source........
  • Page 5 Environmental........... . 75 Griffyn 4K32-RGB Installation and Setup Guide 020-103314-05 Rev. 1 (04-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 6: Introduction

    The illustrations in this document are for representation only and may not depict your projector model exactly. Only Christie qualified technicians who are knowledgeable about the hazards associated with laser use, high-voltage, and the high temperatures generated by the projector lasers are authorized to assemble, install, and service the projector.

  • Page 7: Important Safeguards

    Read all safety and warning guidelines before installing or operating the projector. This projector must be operated in an environment that meets the operating range specification. Use only the attachments and/or accessories recommended by Christie. Use of others may result in the risk of fire, shock, or personal injury.

  • Page 8: Installation Safety And Warning Guidelines

    • ELECTRICAL and BURN HAZARD! Use caution when accessing internal components. • Only Christie qualified technicians are authorized to use the tools provided in the toolbox. AC power precautions Read all safety and warning guidelines before connecting to AC power.

  • Page 9: Laser Safety Precautions

    Possible hazardous optical radiation emitted from this product. (Risk group 3) • Only Christie qualified technicians who are knowledgeable about the hazards associated with laser use, high-voltage, and high temperatures generated by the product are authorized to assemble, install, and service the Christie Laser Projection System.
  • Page 10 E—Represents the top view of the projector. • F—Represents the side view of the projector. The following table lists the hazard distance for the Christie projector lens with the zoom adjusted to its most hazardous position. Projection Lens Part Number...

  • Page 11: Product Labels

    • Temporary show installations containing Risk Group 3 laser-illuminated projectors may be installed by Christie or sold or leased only to valid laser light show variance holders (laser light show manufacturers) for image projection applications. Such manufacturers may currently hold a valid variance for production of Class IIIb and IV laser light shows and/or for incorporation of the Risk Group 3 laser-illuminated projectors into their shows.
  • Page 12 Introduction Fire and Shock Hazard Only Christie qualified technicians are authorized to service the product. Electrical Hazard Risk of electric shock. Do not remove the product enclosure. Only Christie qualified technicians are authorized to service the product. Warning! If not avoided, the following could result in death or serious injury.

  • Page 13: Mandatory Action

    Indicates Class 4 laser radiation. Avoid eye or skin exposure to direct or scattered radiation. Griffyn 4K32-RGB Installation and Setup Guide 020-103314-05 Rev. 1 (04-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 14: Additional Safety Hazards

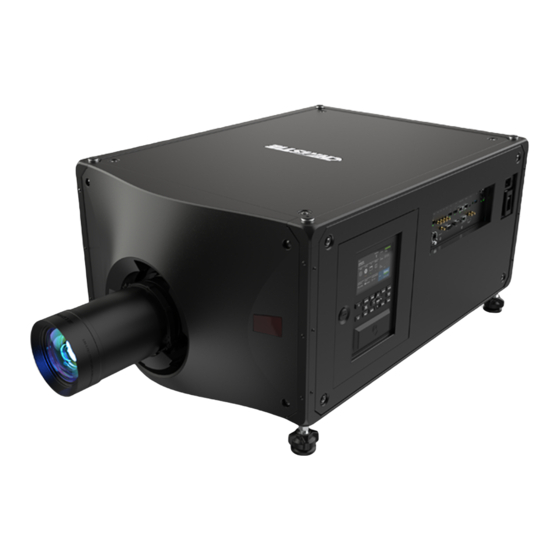

    Griffyn 4K32-RGB is a professional quality, easy-to-use 3DLP ® RGB laser projector. The high-brightness Griffyn 4K32-RGB is designed to meet the special demands found in large venues, live events, and high-usage environments. With reliable Christie RealLaser ™ illumination integrated in a rugged chassis ™...
