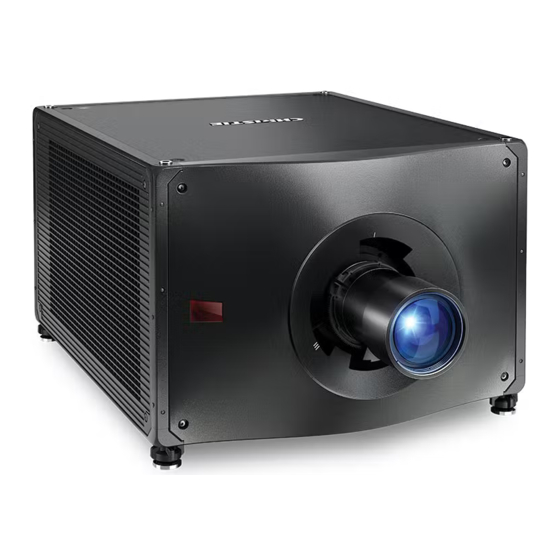

Christie D4K40-RGB Replacement Instructions Manual

4k-rgb laser optical subsystem
Hide thumbs Also See for D4K40-RGB:

Advertisement

Quick Links

Download this manual
4K-RGB Laser Optical
Subsystem
Replacement
Instructions
These instructions explain how to replace the 4K-RGB laser optical subsystem (LOS) using the H1LOS
service kit (P/N: 163-123107-XX).
Affected products
These instructions apply to the following products:
• Christie D4K40-RGB
• Christie Mirage 4K40-RGB
• Christie Roadie 4K40-RGB
Required tools
The following tools are required:
•
3 mm hex screwdriver
•
2.5 mm hex screwdriver
Optional tools
The following optional tools can be used to install the service kit:
•
Foot adjustment tool (011-104952-XX)
•
Calibrated torque driver
4K-RGB Laser Optical Subsystem Replacement Instruction Sheet
020-103107-02 Rev. 1 (07-2019)
Copyright
2019 Christie Digital Systems USA, Inc. All rights reserved.
©
• Christie CP4325-RGB
• Christie CP4330-RGB
1

Advertisement

loading

Related Manuals for Christie D4K40-RGB

Summary of Contents for Christie D4K40-RGB

  • Page 1 The following optional tools can be used to install the service kit: • Foot adjustment tool (011-104952-XX) • Calibrated torque driver 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 2 LOS for replacement is preferable to raising it with the riser blocks and working underneath. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 3 5. Clear all objects from under and around the projector. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 4 4. Remove the bottom cover shown on callout D. 5. Remove the rear cover shown on callout E. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 5 6. Disconnect the LOS cooling tube shown on callout F. 7. Disconnect the radiator cooling tubes at the three disconnects shown on callout G. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 6 10. Disconnect the two fan harnesses shown on callout J. 11. Remove the fan module assembly. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 7 12. Disconnect the laser driver card cage (LDCC) harnesses shown on callouts K and L. 13. Remove the LDCC (callout M). 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 8 Do not remove the coupling elbow within the rear IOS. The pins on the bottom of the coupling elbow are required for LOS realignment later in the installation procedure. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 9 2. Level the projector, using the jacking nuts to adjust. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 10 4. Repeat Step 3 on the other end of the projector. Again, two people should work together for both personnel and projector safety. If replacing the LOS of a D4K40-RGB, Mirage 4K40-RGB, or Roadie 4K40-RGB unit, use of the stands is mandatory to achieve the required 250mm height. The projector feet must also be set to maximum height for these projector models.
  • Page 11 Exercise caution before and during removal of the screws. The LOS must not be allowed to fall or drop. 4. Carefully remove the LOS. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 12 6. To secure the LOS, tighten the four captive M5 screws. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 13 Due to the manufacturing tolerance of the color sensor board and the LOS system, calibrate the LiteLOC v1 response to the light intensity as the temperature of the laser devices changes. 1. Contact Christie Technical Support for a copy of the Horizon Factory Calibration Procedure spreadsheet.
  • Page 14 "(CAL+FANS 5 45 )" ) proj.sendstring( "(CAL+FANS 6 45 )" ) proj.sendstring( "(CAL+FANS 7 45 )" ) 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 15 To run the fan at the normal speed, send the command (DNG 71 <fan ID> 0), or reboot the projector. 16. To execute the script, click the red arrow. 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 16: Technical Support

    North and South America: +1-800-221-8025 or Support.Americas@christiedigital.com • Europe, Middle East, and Africa: +44 (0) 1189 778111 or Support.EMEA@christiedigital.com 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 17 4K-RGB Laser Optical Subsystem Replacement Instructions • Asia Pacific: +65 6877-8737 or Support.APAC@christiedigital.com • Christie Managed Services: +1-800-550-3061 or NOC@christiedigital.com 4K-RGB Laser Optical Subsystem Replacement Instruction Sheet 020-103107-02 Rev. 1 (07-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
