Cleaning The Powder Feeding Screw - SINTERIT POWDER HANDLING STATION User Manual

13. Slide the Sifting module back into the device and lock
both drawers
14. Lower the Flexible tube with the sieve flange
connect with sieve
lock it with a locking pin.
15. Close the door of the Sifting module.
B. CLEANING THE POWDER FEEDING SCREW
1. Operate only when the power is off! Also, switch on the E-STOP button
the internal components of the machine.
2. Remove both grids from the Chambers
dedicated place, the grid from the Fine Dust Chamber (image 52).
3. Using an Allen key 5 mm, unscrew the four screws of the Powder Feeding Screw guard in the Powder Chamber
and put it aside (image 53).
4. Use an Allen key to unscrew the one screw of the Powder Feeding Screw guard in the Fine Dust Chamber
put it aside (image 53).
33 | POWDER HANDLING STATION Manual
31 , 37 (image 51).
, put on the clamping ring
30
For these activities you will need:
Allen key 5 mm G (from the box with additional accessories)
1
1

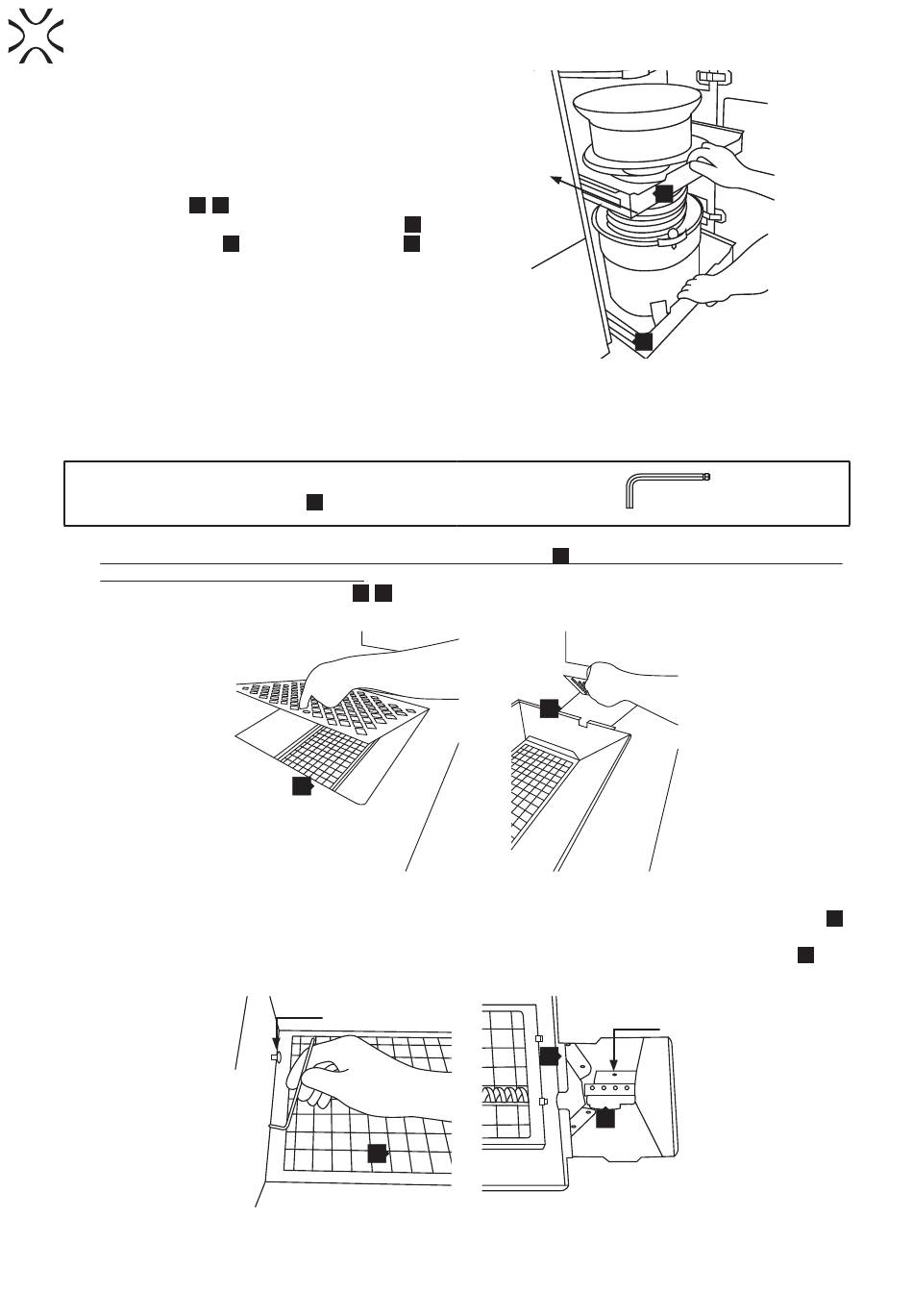

Image 52. Lifting of grids from PHS Powder Chambers.
