SINTERIT POWDER HANDLING STATION User Manual page 19

17. Make sure that the red band on the Suction Handle
socket 4 is completely covered by the Suction Handle
3 . Only then is the suction system leakproof (image
12).
18. Peel off the transport safety catches from the grid of the Powder Chamber
the PHS worktop.
19. Place the Powder Tools accessories on the PHS
Toolboard 6 (image 13).
20. Remove the Anti-noise headphones and the nozzles
for the Suction Handle from the first Drawer
place them on the Toolboard
21. Place the Trowel, delivered with the printer, in drawer
1 .
7
22. Place the IO Box, delivered with the printer, in drawer
2 8 .
23. Place the Powder Funnel in an empty Spare Metal
container in drawer 3
24. Install the Metal shelf for sandblaster or Foldable Tray
13 . Adjust the height of your device.
• The markers on the PHS device will help you choose
the height and orientation to match the appropriate
model of sandblaster from the Sinterit offer.
• There are sets of 3 mounting holes in the Metal
shelf, we recommend using the bottom lowest ones
(marked) but you can adjust the shelf height for your
comfort and use different mounting holes.
8
(image 13).
6
9 .

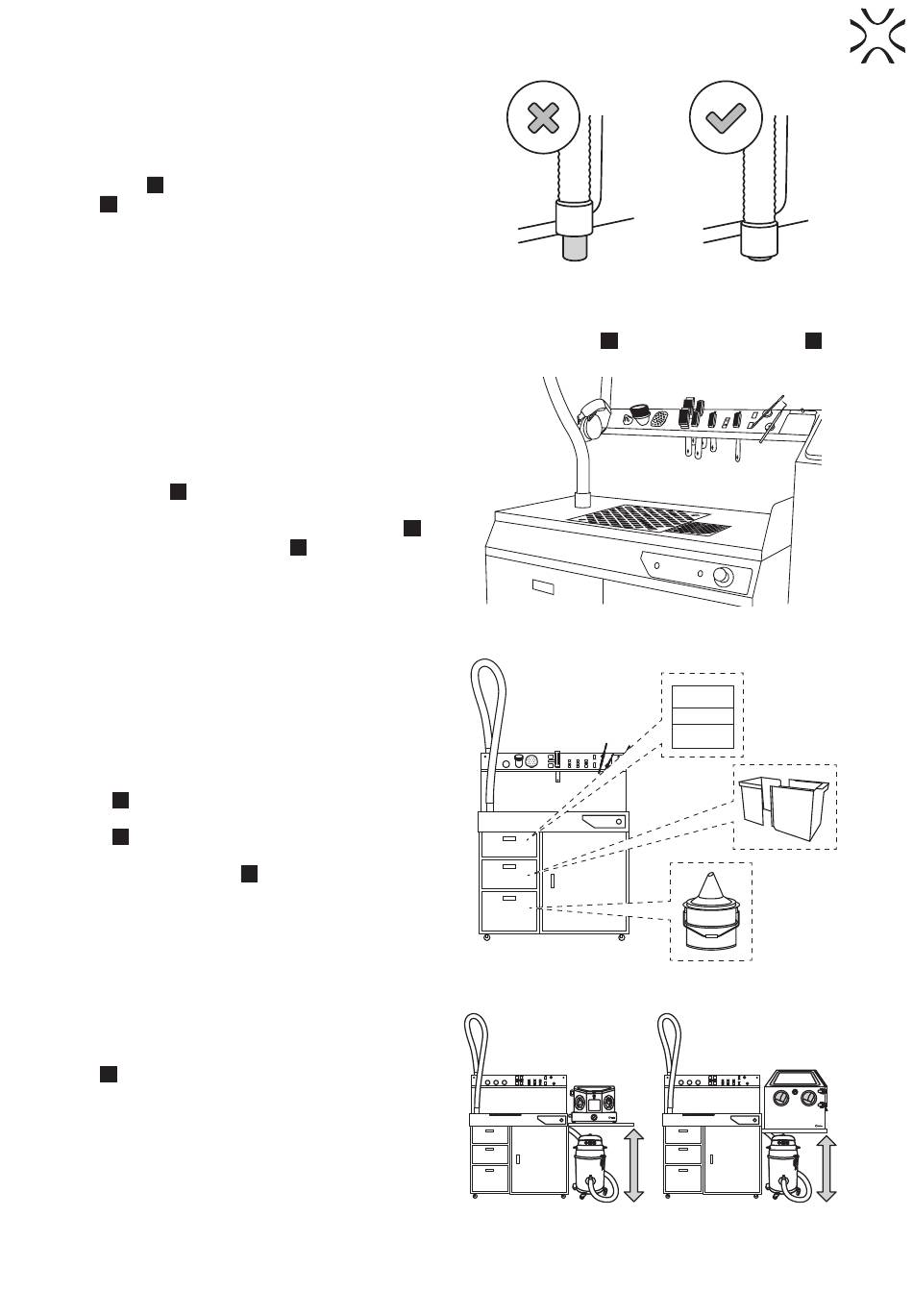

Image 12: Incorrect and correct seating
of the Suction Handle in the socket.
and
Image 13. The positioning of additional accessories
Image 14: Arrangement of accessories in PHS Drawers.
Image 15. Two assembly heights adapted to both Sinterit
Sandblaster and Sinterit Sandblaster XL.
1 and the Fine Dust Chamber
on the Toolboard.
POWDER HANDLING STATION Manual | 18
2 on
