28. Remove the Power cable from the Drawer
it into the Power socket
WARNING!
Connecting the Power cable to an outlet
that does not have a suitable protective
grounding connection may result in an
electric shock.
29. Connect the PHS to the power supply. Look for the
warnings in chapter 3, point D „Power supply and
grounding system".
30. Unlock the Safety button on the Control panel
unlock it, turn the black collar a quarter turn clockwise
so that the button „pops off" (image 19).
The device is ready to use.
6.

Powder transfer in the PHS device

Sinterit Powder Handling Station was created to keep all SLS printing processes in one place. Now it is easier than ever
to control the entire printing process for one person.
The Sinterit Powder Handling Station is a device for fast, effective, and ergonomic powder management from Sinterit
printers. The device allows removing the printout and powder from the printer, cleaning the printout, sifting and mixing
the powder so that it is ready for the next loading of the printer for printing.
The device can work only with the Sinterit ATEX Vacuum Cleaner, creating a set with it.
The Sinterit ATEX Vacuum Cleaner is the only source of vacuum which is needed for efficient powder circulation in the
PHS machine. The user needs to follow the recommendations below, only then the process is fast and effective and
powder losses are minimal.
Description of powder cycle in the PHS device
Below the Worktop there are two chambers with a Powder Feeding Screw mechanism (mechanically transporting the
powder) and a vacuum source (transporting the powder pneumatically). The larger chamber
the Powder Chamber, in which there is only the Powder Feeding Screw mechanism. The second, smaller chamber, under
the small grid, is the Fine Dust Chamber
system to the Sifting module
9 and plug
40 of the PHS
19 . To
2 , in which the powder is sucked in, mixed with air, and sent by the internal pipe
11 ].
40

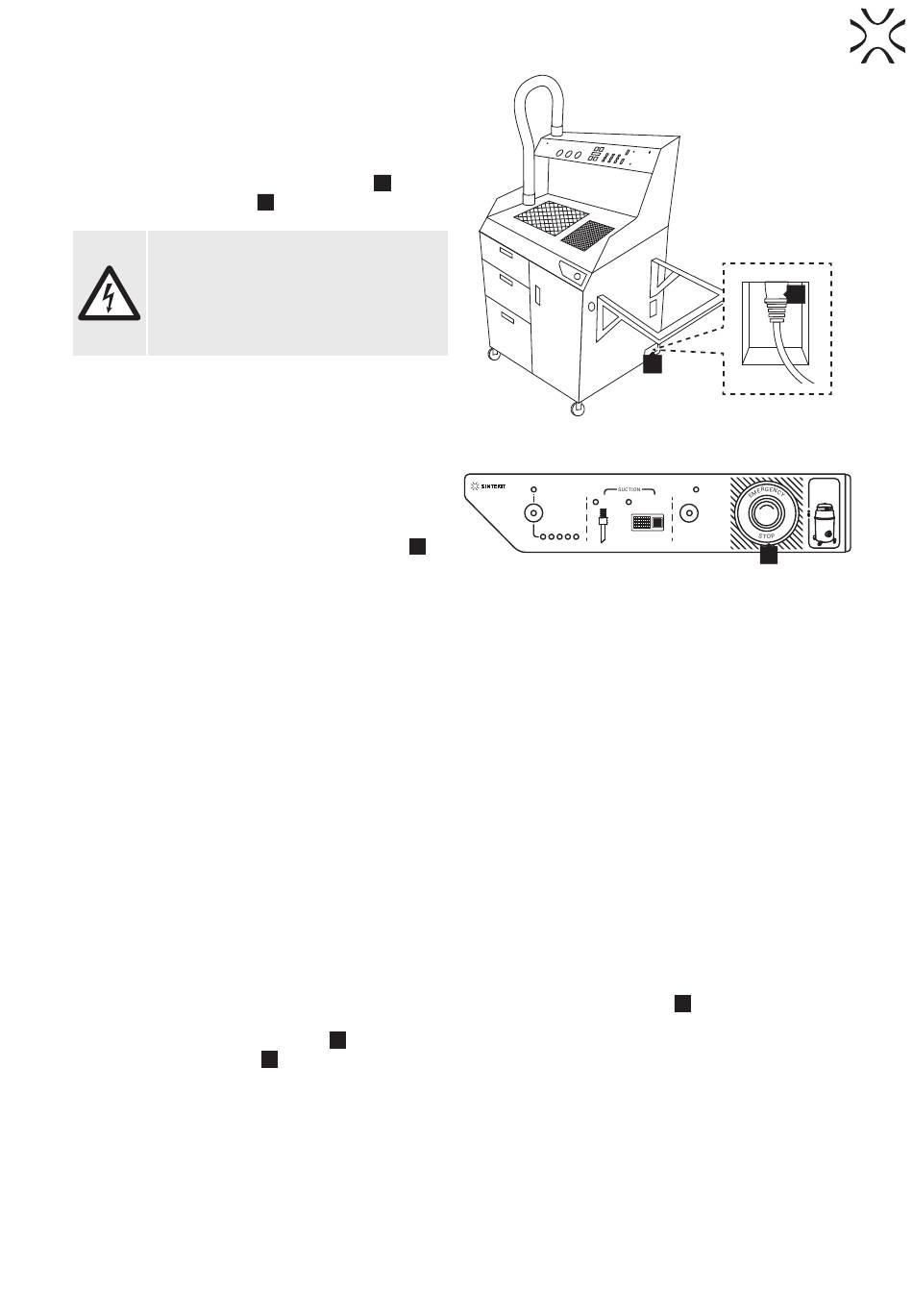

Image 18. Connecting the Power cable to the PHS device.
SUCTION
PHS
VACUUM
DEPOWDERING
HANDLE
ZONE
ON/OFF
SIFTING
ON/OFF
TIMER
Image 19. Unlocking the Safety button (E-STOP)
on the Control panel.
POWDER HANDLING STATION Manual | 20
40
TURN ON
POWER
VACUUM
FIRST
LIGHT
ON/OFF
19
1 , under the large grid, is
