25.a. Screw on the first Metal shelf element. One person holds the element at the right height while the other screw two
screws into the dedicated positions. Check the stability of the connection (image 16a).
25.b. Screw on the second part of the Metal shelf, just like the first. Check the stability of the connection (image 16b).
25.c. Screw on the platform connecting the two Metal shelf elements. One person is holding the platform while the
other is tightening 4 screws. Check the stability of the connection (image 16c).
25. Connect the grounding of the vacuum cleaner correctly (see Sinterit ATEX Vacuum Cleaner user manual).
26. Connect the Sinterit ATEX Vacuum Cleaner, using the supplied Antistatic hose, to the Connector for Antistatic hose
in the PHS 12
27. Connect the power supply to the vacuum cleaner
19 | POWDER HANDLING STATION Manual
For easy installation of the Metal shelf to PHS you will need:
Two persons
a

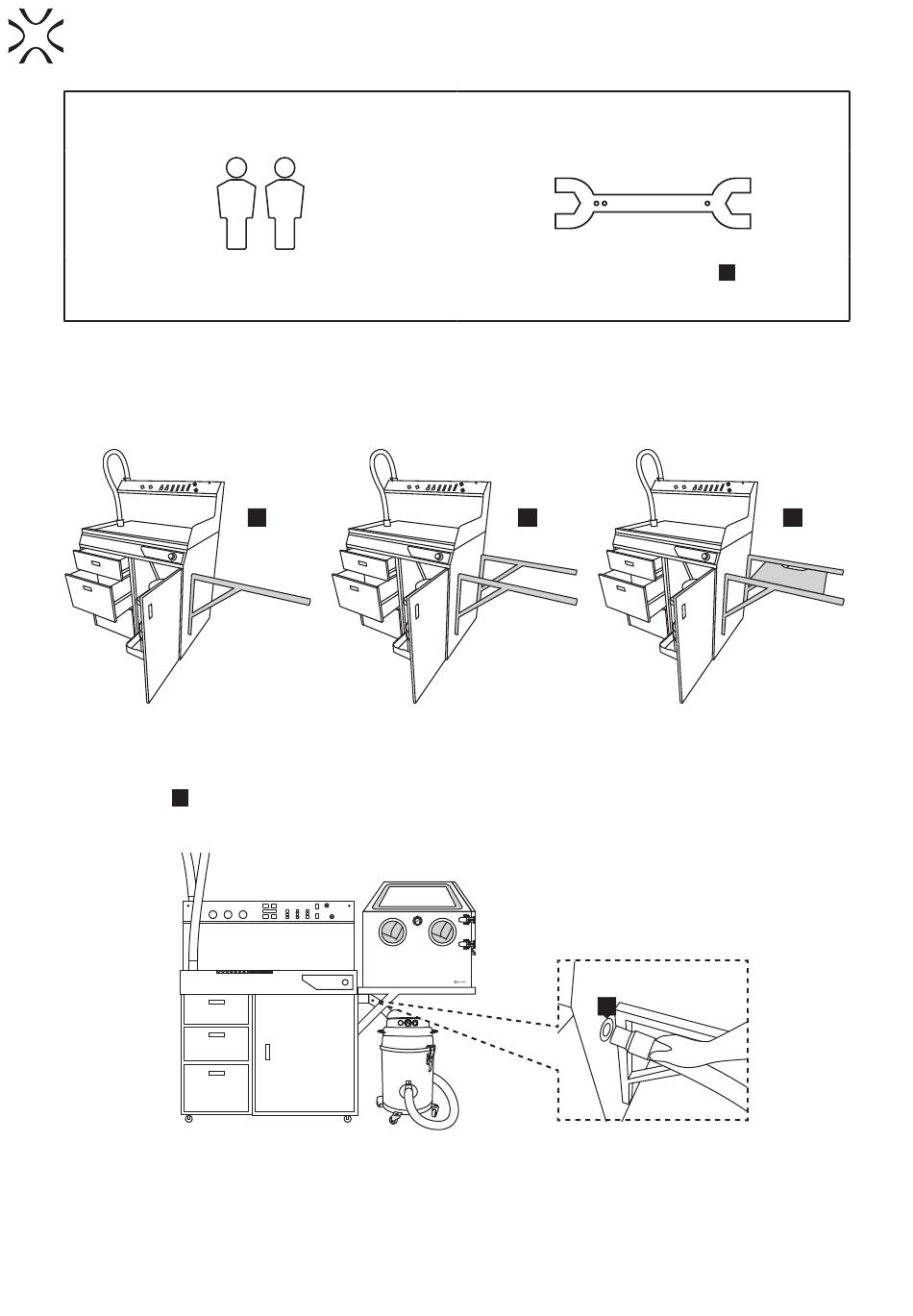

Image 16. Steps in the installation of the Metal shelf for the Sandblaster.
(image 17).
Image 17. Connection of the Sinterit ATEX Vacuum Cleaner to the PHS.
Service wrench 17/10
(1 point - size 17, 2 points - size 10)
b
12
F
c
