Sinterit Powder Handling Station; Description - SINTERIT POWDER HANDLING STATION User Manual

4.

Sinterit Powder Handling Station

A. DESCRIPTION
3
1
4
1.Powder Chamber with grid, 2.Fine Dust Chamber with grid, 3.Suction hose with Suction Handle, 4.Suction Handle socket,
5.LED light, 6.Toolboard, 7.Drawer 1 (for small printout cleaning equipment), 8.Drawer 2 (for IO Box),
9.Drawer 3 (for Spare Metal container and Funnel), 10.Control panel, 11.Sifting module (behind the door),
12.Connector for Antistatic hose, 13.Metal shelf for Sandblaster or Foldable Tray (option), 40.Power socket,
PHS
14.Main switch, 15. Sifting module timer, 16.Suction Handle suction indicator, 17.Fine Dust Chamber suction indicator,
18.LED light switch (on/off), 19.Safety button (E-STOP), 20. Reminder to turn on the vacuum cleaner, 21.Power supply indicator,
22.Powder Feeding Screw guard (mesh) in Powder Chamber, 23.Powder Feeding Screw,
6
5
2
10
7
11
8
9

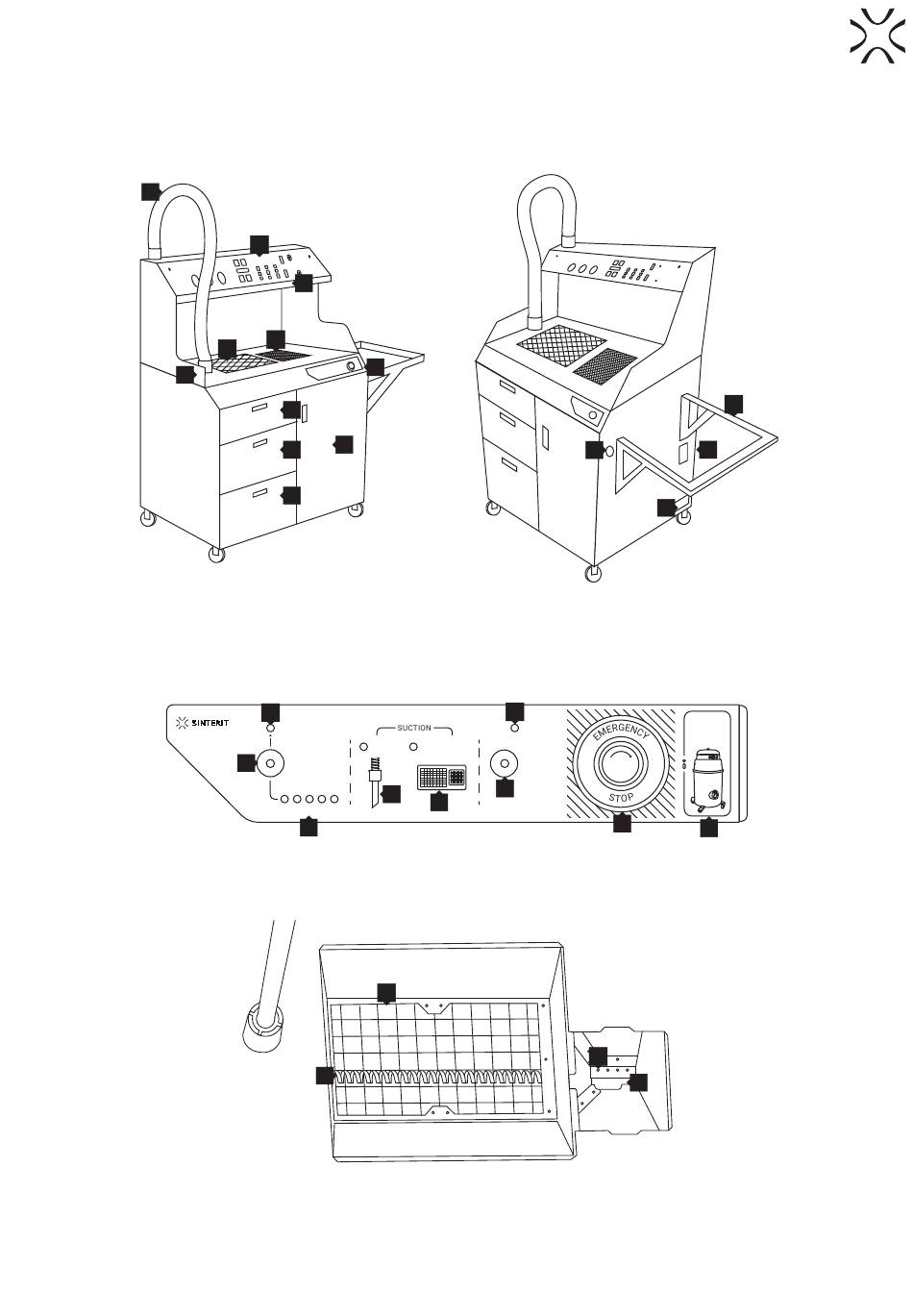

Image 1. General view of the Sinterit PHS.
41. Service access to Powder Feeding Screw
22
SUCTION
VACUUM
HANDLE
ON/OFF
14
SIFTING
ON/OFF
16
TIMER
15
Image 2. View of the Control panel
22.Vacuum Suction sensor indicator
22
23
Image 3. View of the inside of Powder Chambers (main and Fine Dust).
24.Powder Feeding Screw guard in Fine Dust Chamber
12
21
POWER
DEPOWDERING
ZONE
LIGHT
ON/OFF
18
17
23
13
41
40
TURN ON
VACUUM
FIRST
19
20
24
POWDER HANDLING STATION Manual | 12
