Basic Tray Feeder Operation

For Tray Feeder
installation on PSV5000,
see Chapter 2 of the
PSV5000 Owner's
Manual.
For Tray Feeder
specifications, setup,
and troubleshooting,
see the Tray Feeder
Owner's Manual.
- 76 -

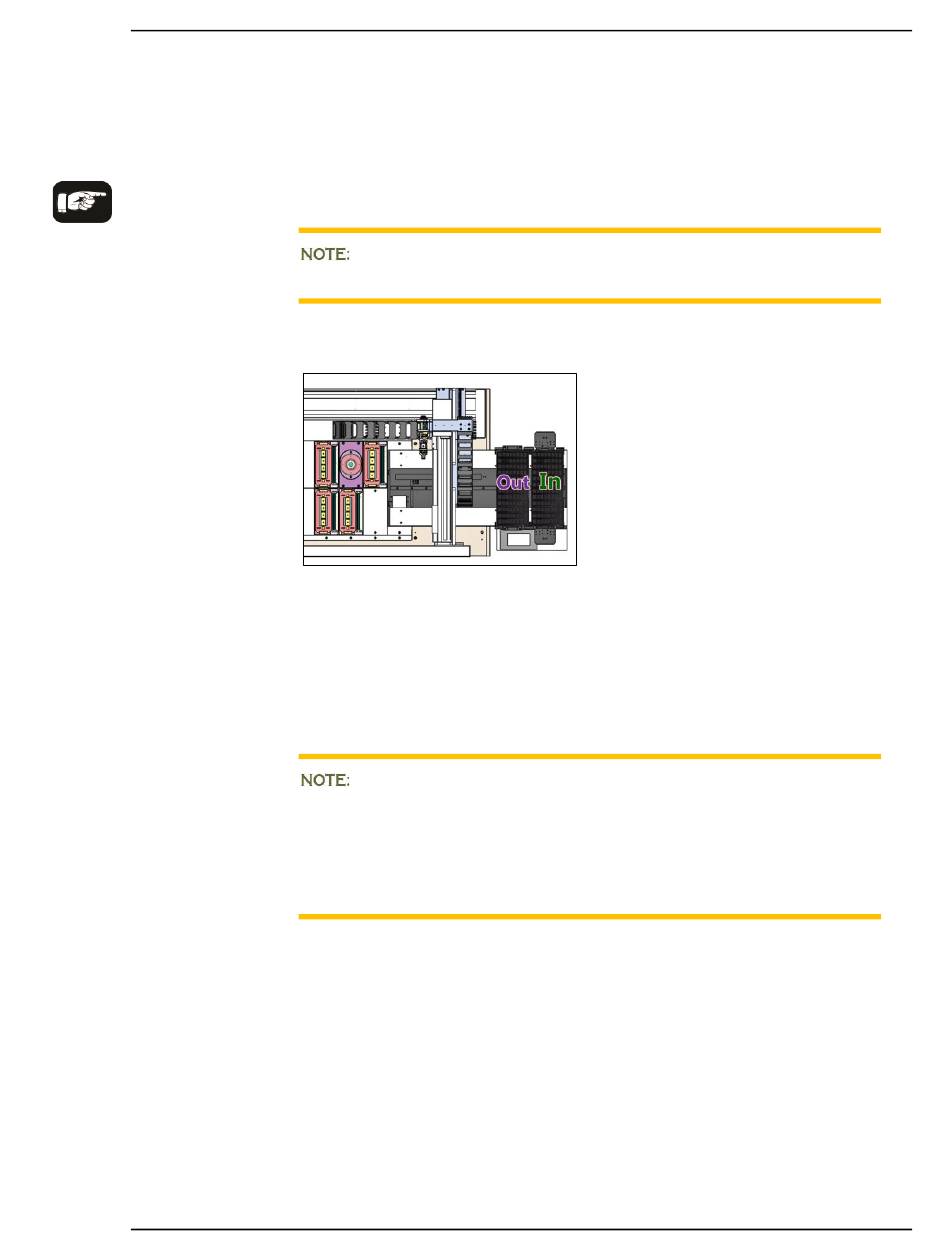

To start the Single Tray Feeder:
1. Ensure the Tray Feeder utilities are plugged into the PSV5000 Machine
and the Tray Feeder power switch is in the ON position.
The Tray Feeder will power up when the
PSV5000 Machine is started.
2. Prior to clicking Start in CH700, install up to 20 JEDEC trays of un-
programmed devices into the Input Stack of the Tray Feeder.
3. Start a PSV5000 job through TaskLink. Tray Feeder loads the first tray.
4. In CH700, click Start. The Tray Feeder initializes.
5. At the Setup > Options tab select the tray options desired.
6. When Setup options are set, ensure that the machine workspace matches
the settings. Rectify differences.
7. Click Run. A password may be required.
The Tray Feeder can be reloaded with trays at any time,
and output trays removed. However, opening the Tray Feeder door will
stop any tray movement until it is closed again.
It does not stop PSV5000 operation unless a tray exchange is required
while the Tray Feeder door is open.
