Running a Job on PSV5000 ■ List of Steps to Start a Job
torque range for FlashCORE programmer screws is 1.4 – 1.5 Nm /
12.4 – 13.3 lbf-in.
6. Install the correct Actuator Plate by placing it into the slot on the
programmer bracket and sliding in until it snaps into place. Ensure it
stops at the detents.
7. See heading below—ADJUST THE ACTUATOR PLATE (unless you are
using the same Socket Adapter as the previous job).

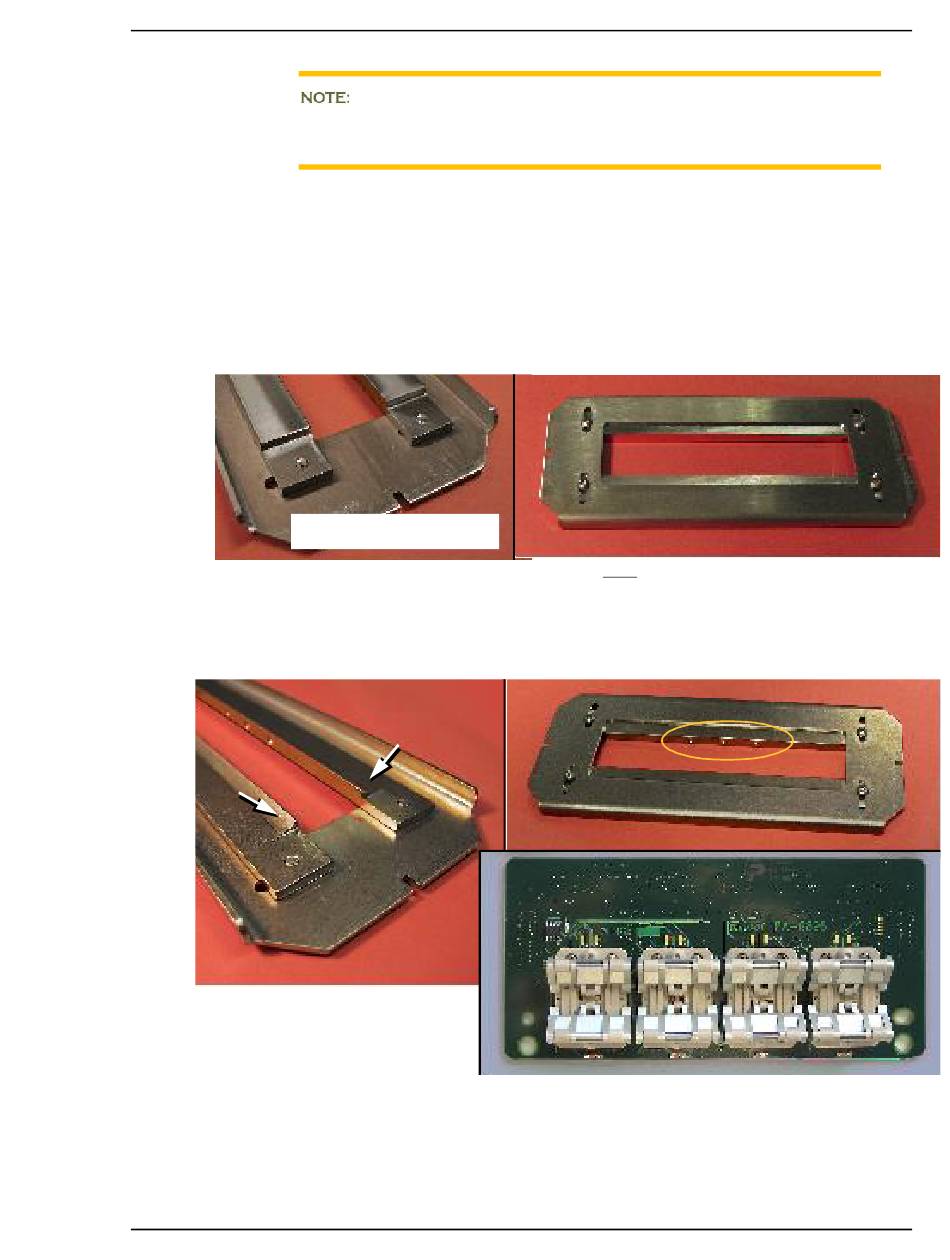

Bottom side, standard
Figure 33: Standard Actuator Plate for Non-HIC Socket Adapters.
B
Bottom side, HIC
Figure 34: Special Actuation Plate for HIC (High Insertion Count) Adapters.
View A: the three dots identify HIC Actuator Plates.
View B: HIC bars have radii (arrows).
