Tape input feeders are
available to match
device tape widths. The
last two digits of the
Tape Input Feeder part
number indicate the
tape width.
PSV5000 Operator's Manual

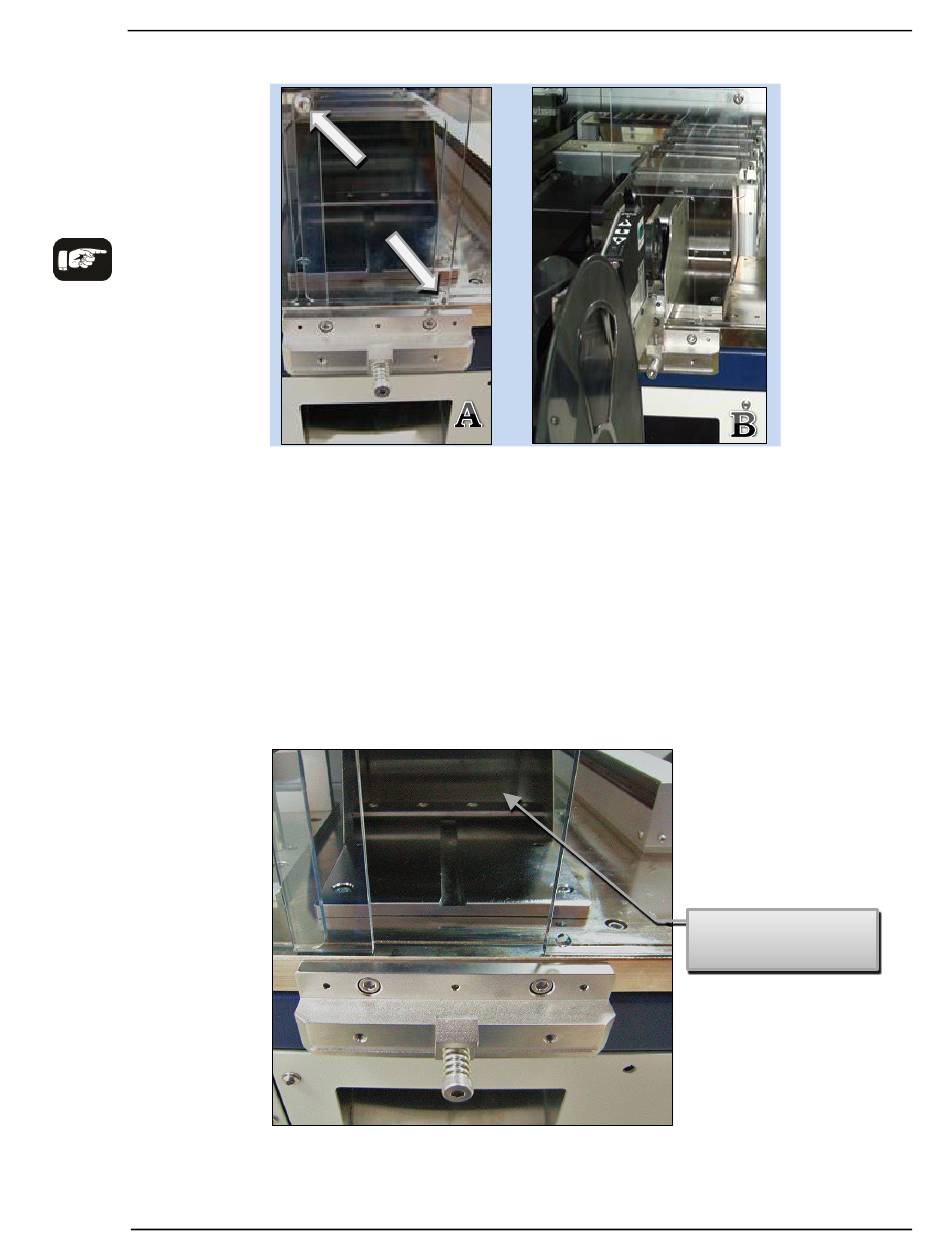

Figure 7: Use a 3 mm hex key to unscrew the two screws (arrows) secur-
ing each of the two safety plates. The safety plate has removed in image B.
2. Remove the two screws securing the small safety plate (3 mm hex key)
and remove the plate. Refer to the figures above.
3. Align the rail on the bottom of the feeder with the channel on the
PSV5000 base plate.
4. With the feeder in the channel, slide it inward. When the feeder reaches
the spring latch, lift it over to the far side of the latch and push down to
secure. Refer to Figure 8: and Figure 9: .
If device tape is already loaded on the feeder, ensure it gets started down
the chute in the workspace.
Figure 8: The Tape-In slot and spring clamp on PSV5000.
■ List of Steps to Start a Job ≡ Installing Input/Output Media
Pocket Tape Chute
on the PSV5000.
- 19 -
