Running a Job on PSV5000 ■ List of Steps to Start a Job

Teaching the Tray 1 Location

1. In the CH700 Setup window, click System (in the right pane).
2. In the System window, click Gantry.

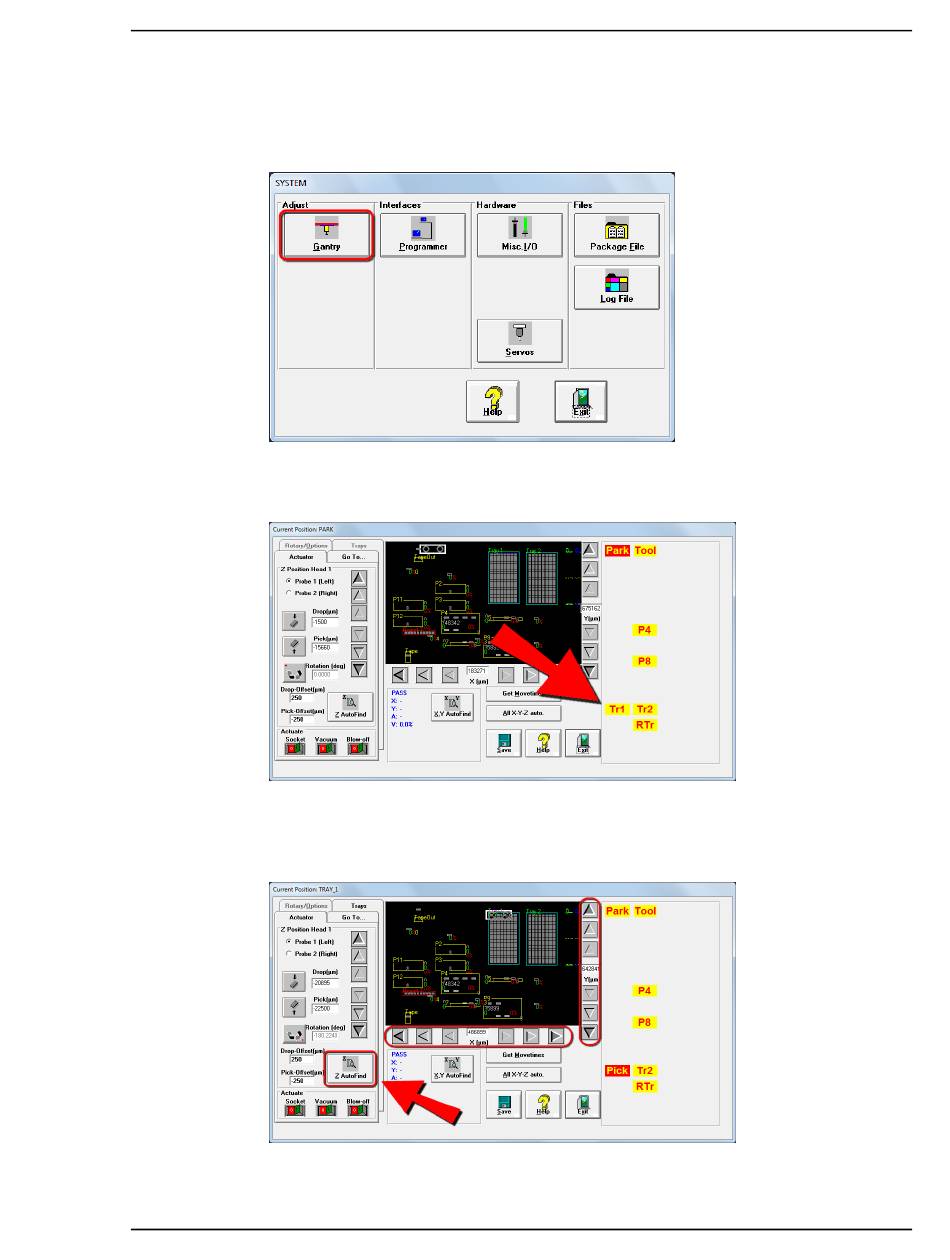

Figure 50: Click 'Gantry' for handler functions.
3. In the Gantry window, click Tr1 to move PnP head to the Tray 1 location.
Figure 51: Click 'TR1' to move PnP head to Tray 1 location.
4. Center Probe 1 over the device (use X and Y adjustment arrows), and
then click Z AutoFind.
Figure 52: Click 'Z AutoFind' to teach the vertical height.
- 48 - Data I/O ■ 096-0466-001E
