Checking the Tape Output Option

Set up of the Tape Output is described in the PSV5000 Owner's Manual.

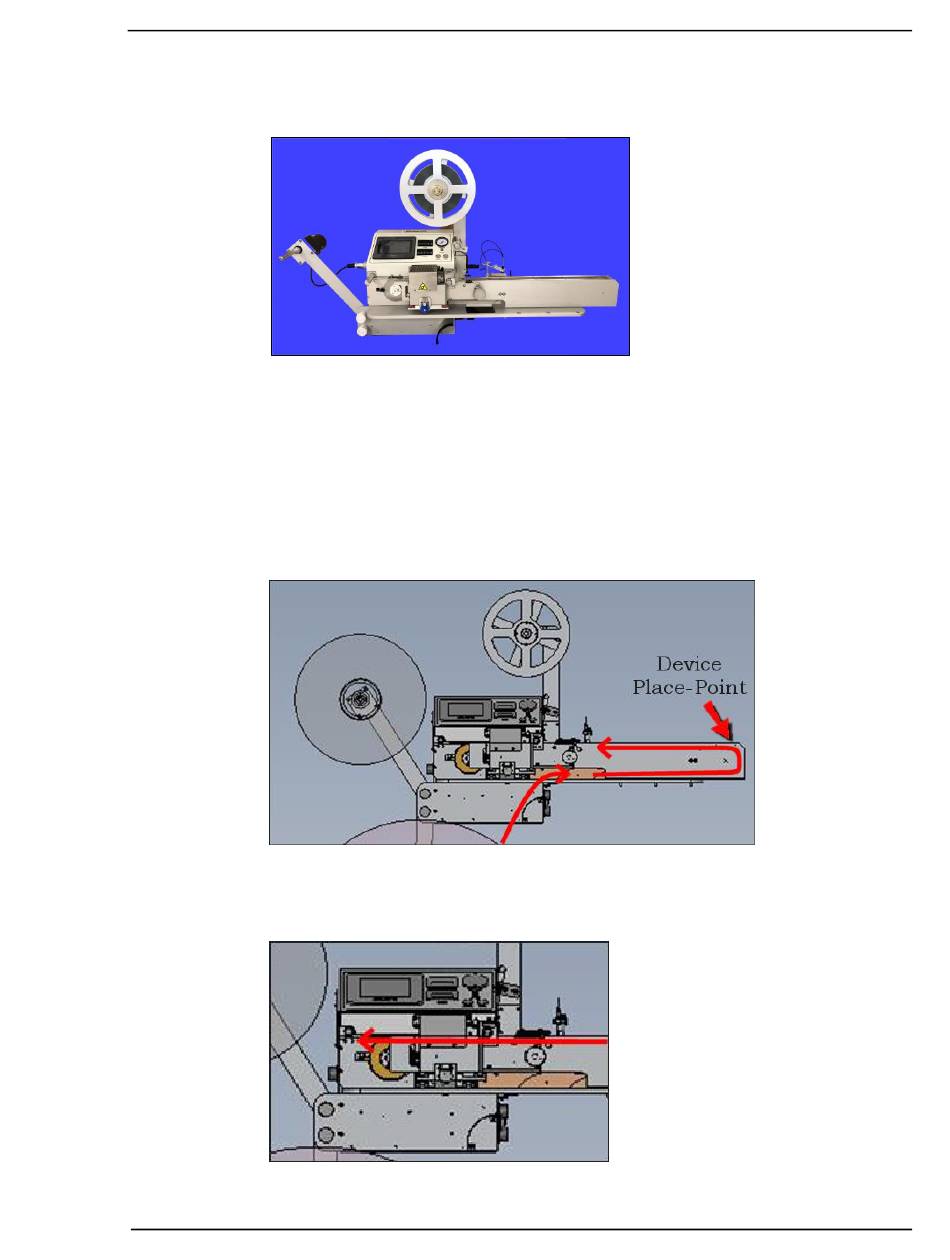

Figure 12: The Taper/Tape Output module.
Routing the Carrier Tape
1. On the lower spindle below the Taper, mount the carrier tape reel and
ensure the tape unwinds from the bottom of the spindle.
2. Route the carrier tape by feeding it into the loading track. Ensure the
tape pockets are face-down when first guiding the tape from the bottom.
Then ensure the pockets are face-up when the tape rounds the corner at
the place-point (depicted below on the right).
Figure 13: Routing the carrier tape.
3. Now pull the end of the carrier tape past the sealer and align the sprocket
holes on the tape with the teeth of the drive sprocket.
Figure 14: Pulling the carrier tape past the sealer.
