Removing Devices

Remove unwanted devices in programmer sockets by:
Manually
1. Pause or Finish (end) a job.

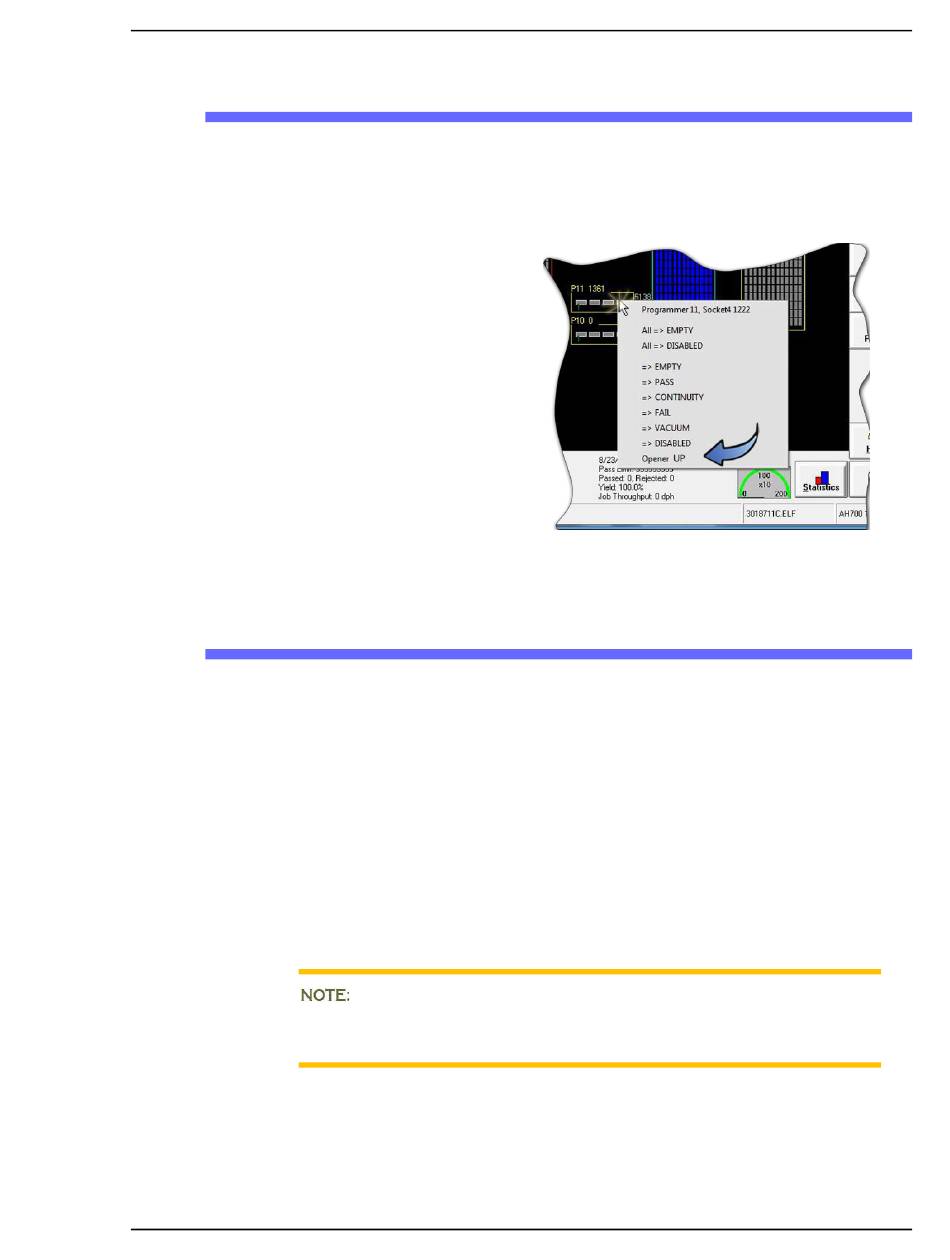

2. Right-click on the desired
programmer to open a
submenu, and then click
Opener UP.
3. Using ESD precautions,
open a safety door and re-
move the devices with a
vacuum tweezer.
At the Run Window
1. Pause or Finish (end) a job.
2. Click Clear. Device will be
moved to the reject media.

Stopping the System

There are three methods for stopping the machine:
• Emergency Stop—Pushing any of the red E-Stop buttons stops the
movement of the PNP head immediately in an emergency. (Power to the
gantry motors is disconnected and communication to the Laser head is
disconnected.) The CH700 Application must be closed and the job re-
started in TaskLink.
• Pausing a Job—Clicking Pause in the Run window—stops the PNP head
at its next destination. Devices finish programming if started but are not
removed from sockets. The programming session can be continued.
• Finish a Job—Clicking Finish in the Run window—stops picking blank
devices, finishes the current programming cycle, and removes devices
from all the sockets placing them into appropriate media. The pro-
gramming job can be resumed.
fected by the length of time a job is paused. Nominal throughput ex-
cludes paused time.
