Illustration of the PWR LARGE
SEMIPHOR TRANSPHOR UNIT and
PWR SEMIPHOR TRANSPHOR
UNIT keypad

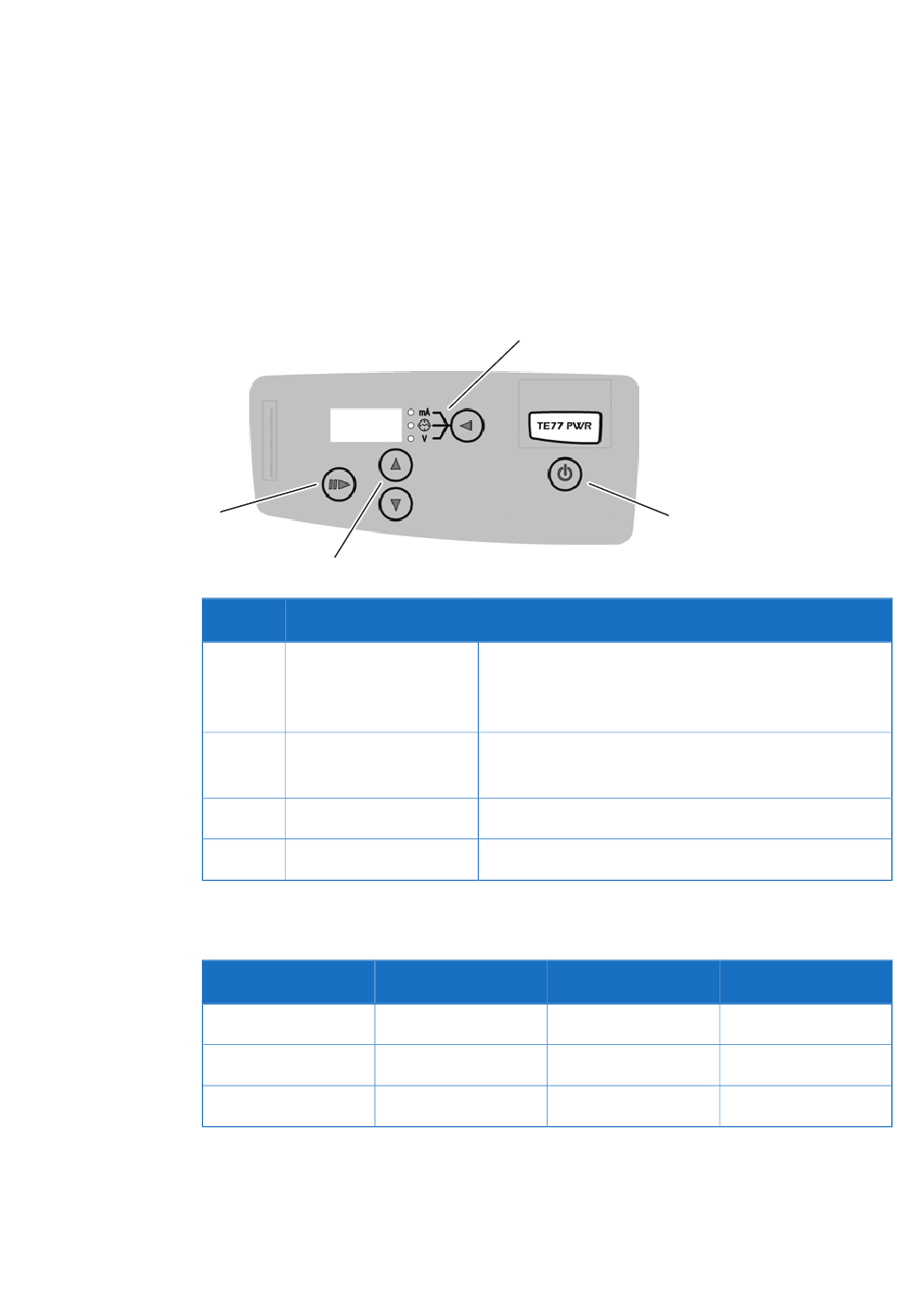

The illustration below shows the parts and gives a brief description of the keypad of PWR
LARGE SEMIPHOR TRANSPHOR UNIT and PWR SEMIPHOR TRANSPHOR UNIT, placed on
the top panel of the instrument.
4
Part
1
2
3
4
PWR LARGE SEMIPHOR TRANSPHOR UNIT and PWR SEMIPHOR TRANSPHOR UNIT can be
set to the following parameters.
Variable
Current
Time
Voltage
SEMIPHOR TRANSPHOR UNIT series Operating Instructions 29281777 AA
3
Function
Display mode, cycles,
LED display
Power ON/OFF but-
ton
Up/down arrow
Start/stop button
Unit
Milliampere
Hours:minutes
Volt
1
Description
The DISPLAY MODE button toggles between the
current (mA), time (hour:minutes) and the voltage
(V).
Switch instrument ON/OFF.
Adjust value of the selected parameter.
Start/stop the electrotransfer.
Range
1 to 500
5 min to 4:00 hours
0 to 30 (read only)
