4. Operation

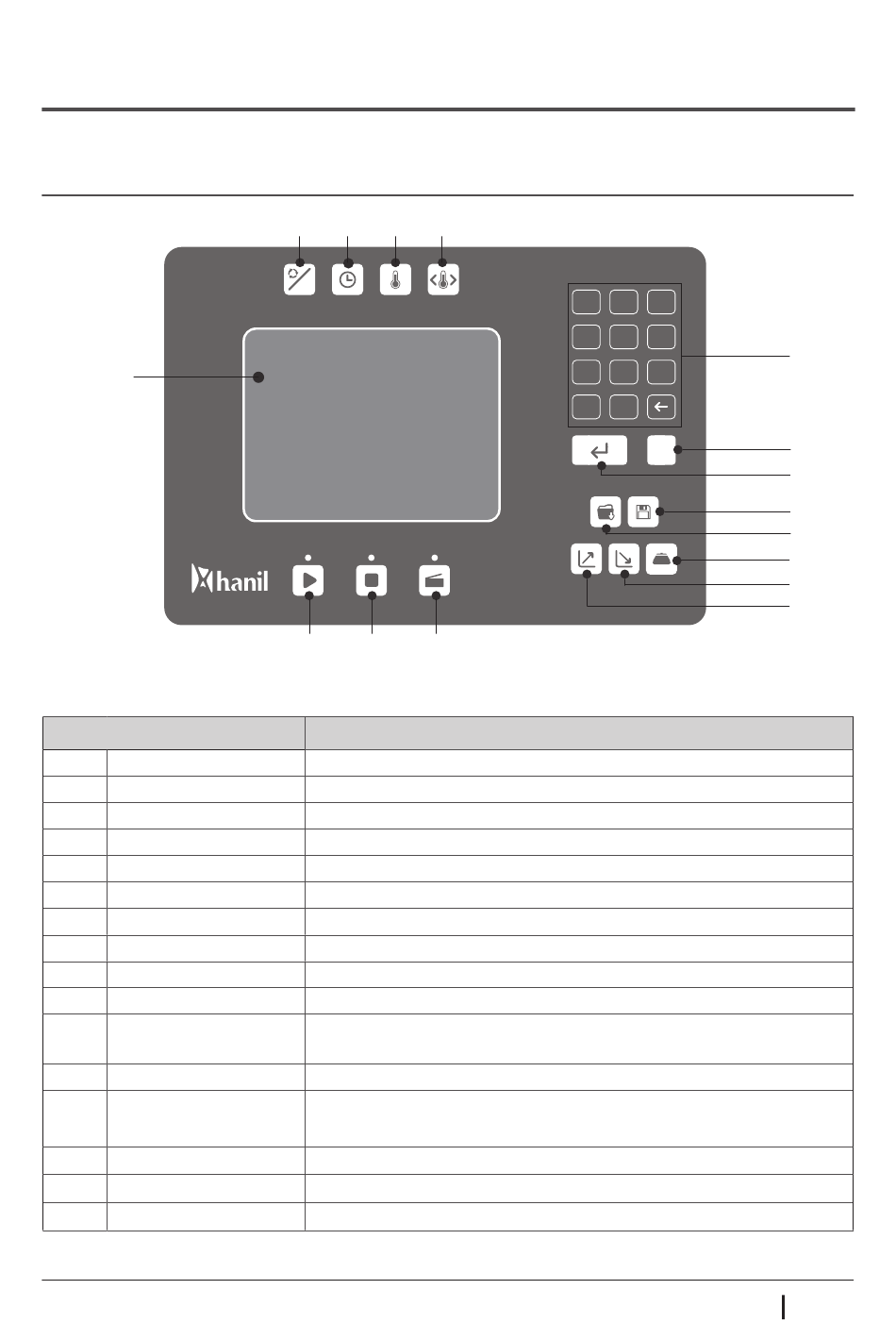

4.1 Control Panel

①
①
Button
① Display
② Speed
③ Time
④ Temp
⑤ Temp Limit
⑥ Numeric buttons
⑦ View Setting
⑧ Enter
⑨ Program Save
⑩ Program Call
⑪ Rotor ID.
⑫ Deceleration(DEC)
⑬ Acceleration(ACC)
⑭ Start
⑮ Stop
⑯ Lid
Technical Support :+82-2-3452-8966 / techsupport@ihanil.com
② ③ ④ ⑤
② ③ ④
xg
xg
⑯
⑮
⑪ ⑫ ⑬
⑭ ⑮ ⑯
- Indicate Speed/Time/Temperature/Acc.Dec.
- Press once : Setting the RPM / Press twice: Setting the RCF
- Setting run time
- Setting temperature
- Setting temperature limit range
- Enter a value using the numeric buttons
- Verifying the setting parameters during centrifugation
- Setting acceleration step
- Saving a program
- Press the enter after setting the parameters
- When rotor id is not identified automatically,
enter the rotor ID. manually
- Setting deceleration step
- Calling up a program-
- Starting centrifugation
- Stopping centrifugation
- Openg the lid
