The drain is composed by 3 pieces:

a) Drain pipe

b) Female screw

c) Joint ring.

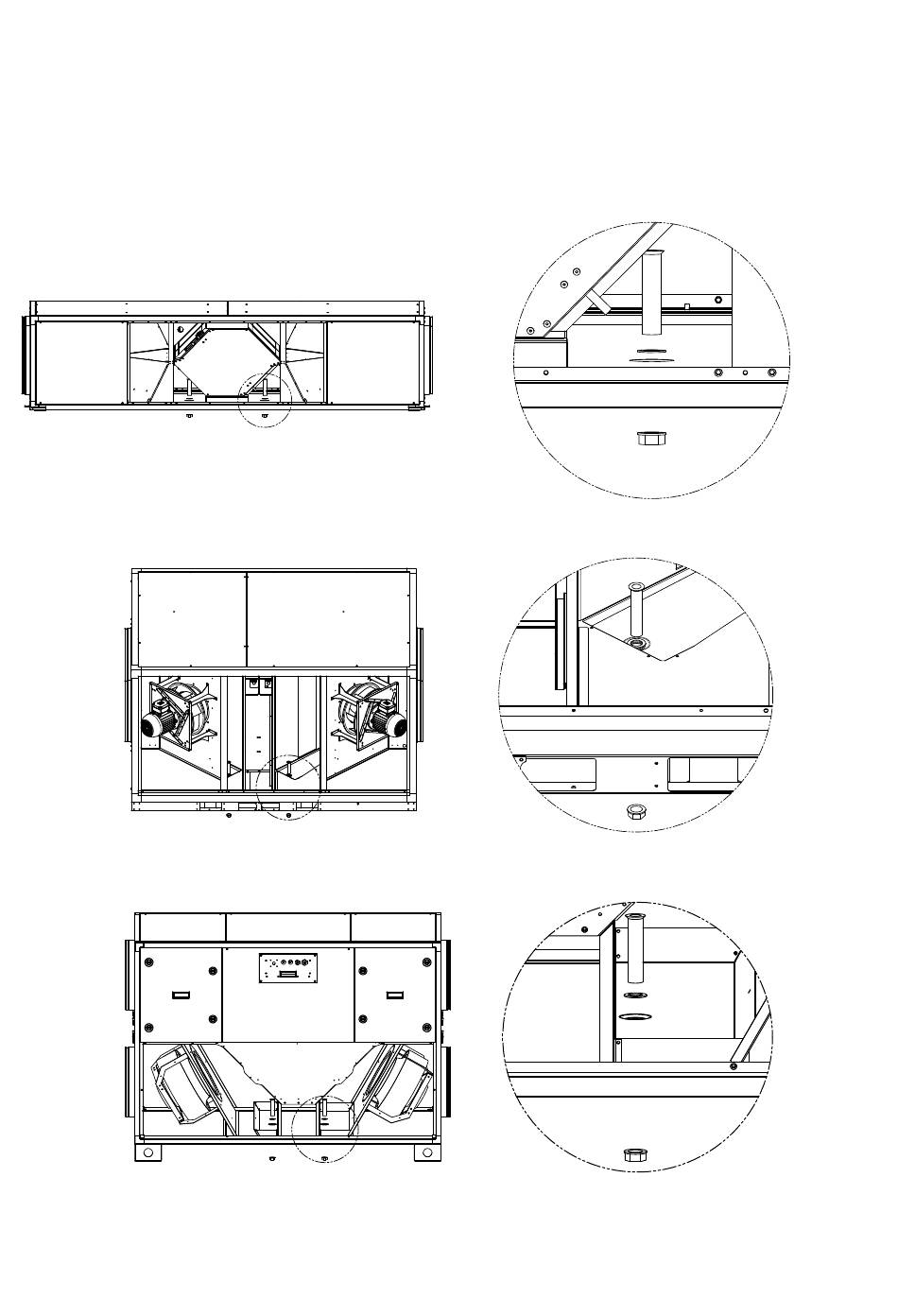

Install the two drains as indicated in the following drawing:

a) Horizontal versions of CADB/T HE 04 to 33

b) Horizontal versions of CADT-HE 45 and 60

c) Vertical versions of CADB/T HE 04 to 33
