SUPPLY FAN

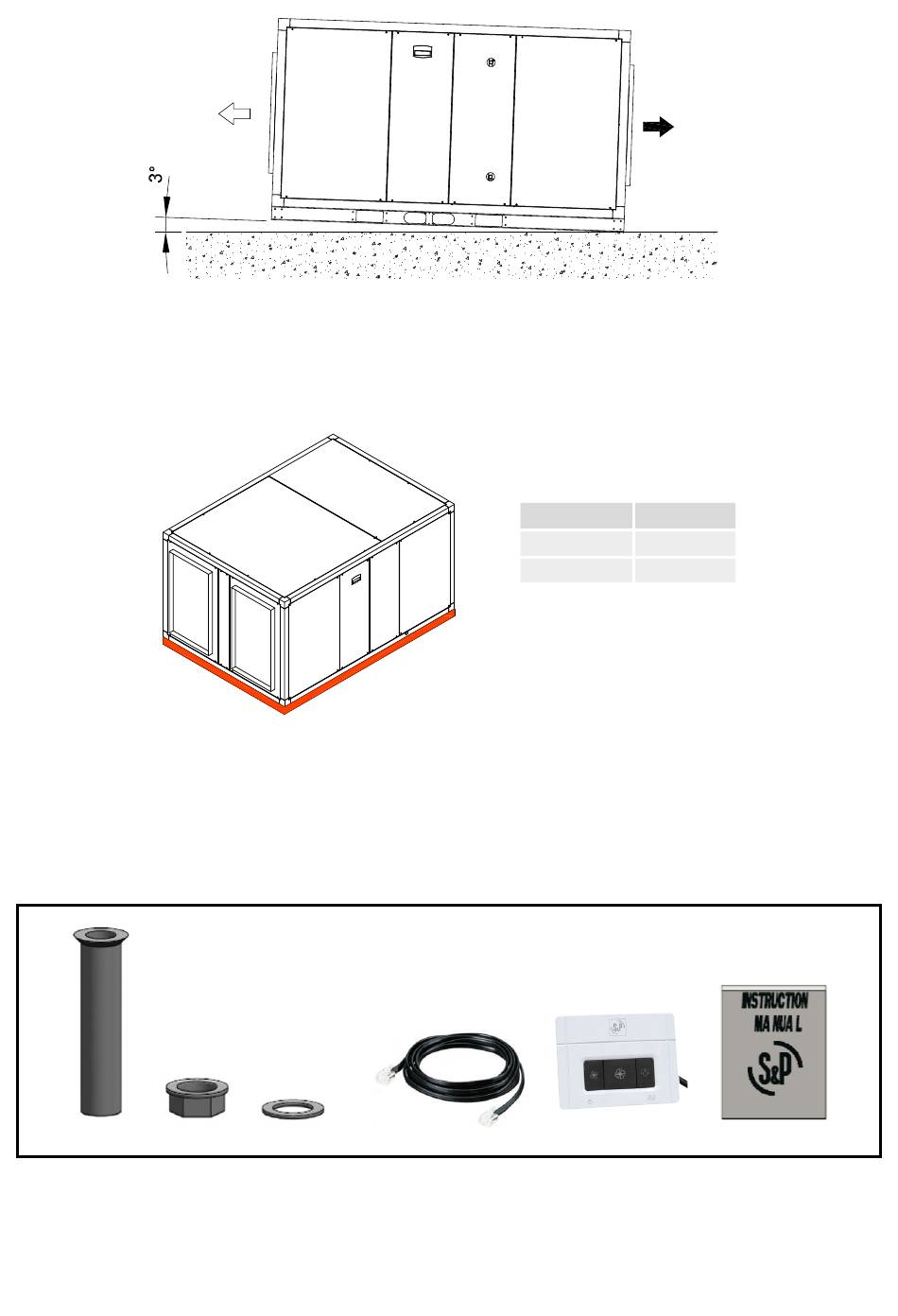

Horizontal models size 45 and 60 are supplied with a perimetral bed. This bed must be in contact with
the ground or with a fl at surface. It is essential that the weight of the equipment was distributed between
all points of support to prevent unit deformation.
The installer must make sure that the ceiling structure and the securing elements can bear the
weight of the unit, taking into account that it is a dynamic load.
For all confi gurations
Once secured the device in correct position, the installer have to perform the connection to the air duc-
ting system, connection to the electric net, and in the case of versions with water coil, the connection
with closed circuit of hot water coil.
Inside of the unit are supplied the following accessories:
**
Drain
a)
b)
x2
* The remote controller is located inside the electric cabinet.
** In the models 45, 60 and 100 the drain is installed by default in the unit.
c)
x2 x2
Model
45
60
Remote terminal*
Cable
(10 m)
x1
EXHAUST FAN
Weight (kg)
597
730
Manual
x1 x1
