Possible regulations depending on the position of the control selectors.

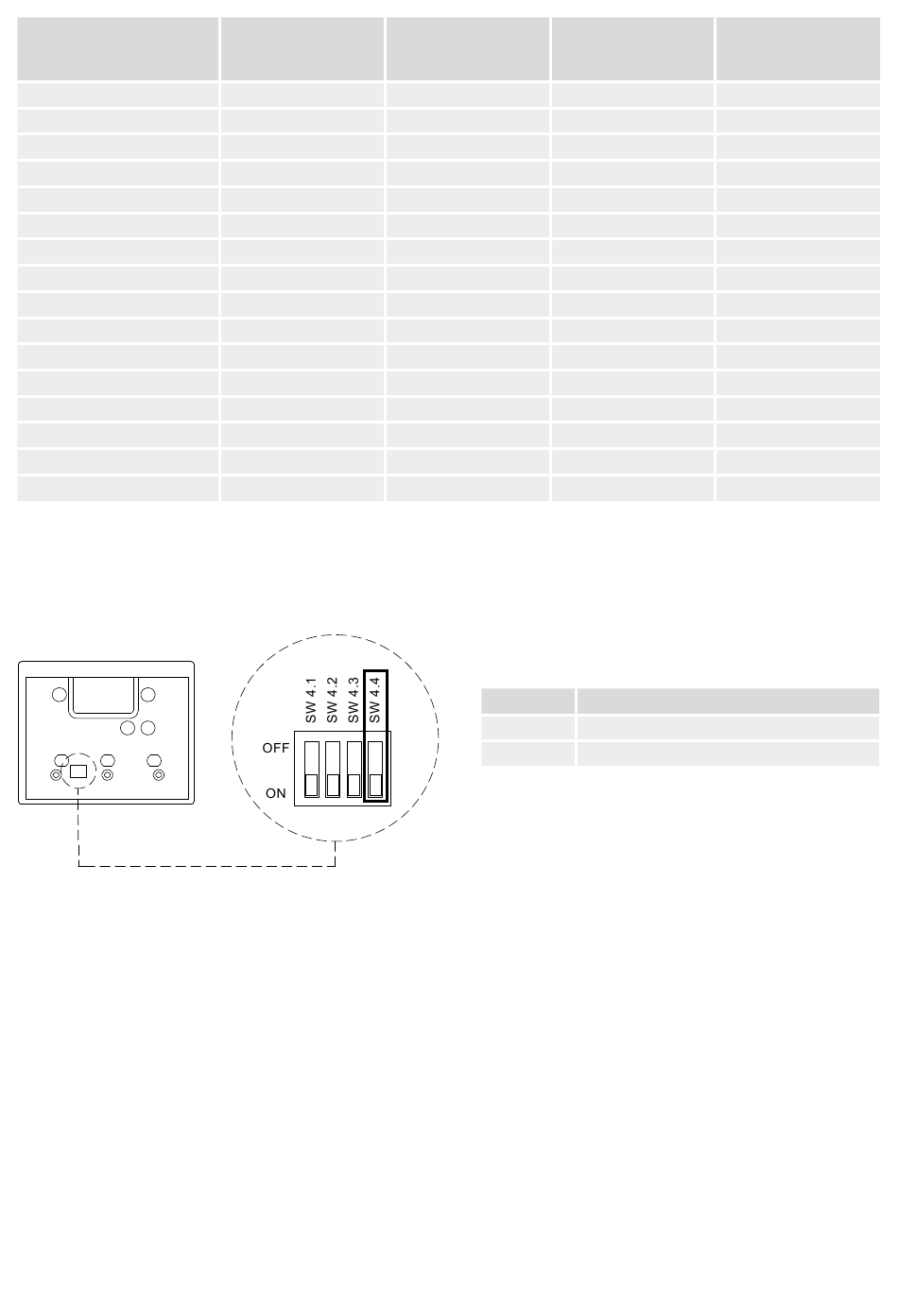

9.4.2. Modifi cation of the bypass opening setpoint (free-cooling mode)
Using the SW4.4 selector it is possible to select between two ranges of setpoint temperatures:
Once a certain range has been selected, the setpoint value is selected by pressing on the temperature
icon (See section "Remote control setting - User".
22
Selector 1
(Low speed) (Medium speed)
(Vdc)
2,1
2,1
2,1
2,1
2,1
2,1
2,1
2,1
2,1
2,3
2,5
2,7
2,9
3,1
3,3
3,5
Selector 2 Selector 3
(High speed)
(Vdc)
3,5
3,7
3,9
4,1
4,3
4,5
4,7
4,9
5,1
5,3
5,5
5,7
5,9
6,1
6,3
6,5
SW4.4 Predefi ned temperature range
OFF 13/18/23ºC
ON 15/20/25ºC (by default)
Selector 4
(Balance)
(Vdc)
6,5 -30 %
6,7 -25 %
6,9 -20 %
7,1 -15 %
7,3 -10 %
7,5 -5 %
7,7
7,9
8,1 10 %
8,3 15 %
8,5 20 %
8,7 25 %
8,9 30 %
9,1
9,3
9,5
0 %
5 %
0 %
0 %
0 %
