6.3. MOUNTING PROCESS OF AN ADDITIONAL SUPPLY FILTER

The heat recovery unit is supplied with the fi lters already installed. F7 (ePM1 70%) in supply side and M5
(ePM10 50%) in extract side. In addition, it is possible to mount a second fi lter in the unit (accessory).
(For more information see section "Replacement of fi lters").
6.4. RANGE SPECIFICATIONS
Model
CADB-HE D 04 BASIC
CADB-HE D 08 BASIC
CADB-HE D 12 BASIC
CADB-HE D 16 BASIC
CADB-HE D 21 BASIC
CADB-HE D 27 BASIC
CADT-HE D 33 BASIC
CADT-HE D 45 BASIC
CADT-HE D 60 BASIC
CADT-HE D 100 BASIC
* Wet efficiency referred to nominal airflow, Outdoor conditions (-5ºC / 80% RH) and indoor (20ºC / 50% RH)

6.5. CONNECTIONS

6.5.1. Connection with air duct

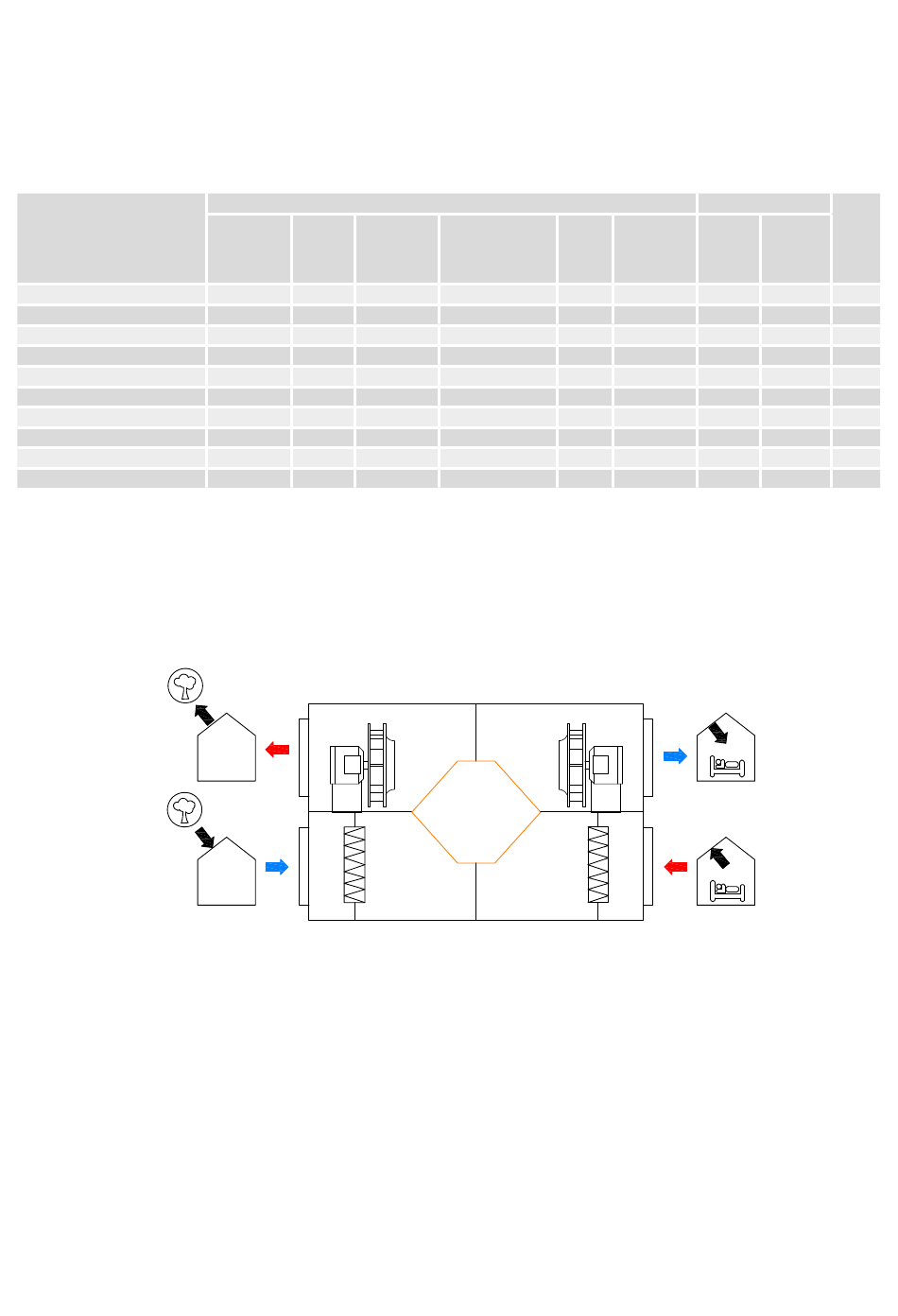

The fans are always blowing out with regard to the machine. Before making the connection of
air lines, consider the existing identifi cation labels in each inlet/outlet of the heat recovery unit.
Exhaust air
Aire de expulsión
Espulsione all esterno
Air rejeté
Fortluft
Outdoor air
Aire exterior
Aria di rinnovo
Air neur
Aussenluft

6.5.2. Condensate drainage

The units are supplied with 2 drains (one for each circuit). For added security it has to connect two
drains to the condensate discharge pipe. This connection must be made through a pipe of 22 mm
of inner diameter and a fl ange for secure fi xation.
Drainage system
• To ensure the removal of draining condensate from the tray a siphon must be installed with
pressure head difference in mmWG greater than the pressure provided by the fan.
• The horizontal sections should have a minimum slope of 2%.
Air Nominal Effi ciency*
connections airfl ow
3
diameter (m /h)
(mm)
200 450
250 800
315 1.200
315 1.600
400 2.100
400 2.700
400 3.300
600x400 4.500
700x500 6.100
1100x610 10.000
Complete unit
Electrical
(%) supply
87 1/230V, 50Hz
86,4 1/230V, 50Hz
85,3 1/230V, 50Hz
85,5 1/230V, 50Hz
86,7 1/230V, 50Hz
83,8 1/230V, 50Hz
85,9 3+N/400V, 50Hz
86,3 3+N/400V, 50Hz
86,7 3+N/400V, 50Hz
88,9 3+N/400V, 50Hz
Max. Maximum Speed
abs. current (r.p.m.)
power (A)
(kW)
0,2 2,2 3700
0,4 2,9 2650
0,95 3,5 2550
0,95 4,3 2845
0,9 4,7 1580
1,84 7,5 2450
2,2 4,3 2600
4,43 6,3 2200
4,43 6,3 2200
8,13 11,9 2160
Fan Weight
(kg)
Maximum
current
(A)
0,95 147
1,3 183
1,6 190
2,0 235
2,2 333
3,6 367
2,0 420
3,0 597
3,0 730
5,8 862
Supply air
Aire de impulsión
Inmissione
Air Souffl é
Zuluft
Extract air
Aire de extracción
Estrazione dal locale
Air repris
Abluft
