10 Control Application Process (CAP) Blocks

Multiple Analog Output Function Block (MAO)

Overview

The MAO block makes available to the I/O subsystem its eight input parameters IN_1/8.
This function block keeps the fault state features specified for the AO block. It includes option to hold the last value or a preset
value when in Fault State, individual preset values for each point, besides a delay time to go into the Fault State.
The actual mode will be LO only due to the resource block (SET_FSTATE parameter). If an input parameter has a bad status, that
parameter will be in Fault State, but the mode calculation of the block will not be affected.
The FSTATE_STATUS parameter shows that points are in Fault State.
The MAO block does not support back calculation, or the Cas mode.

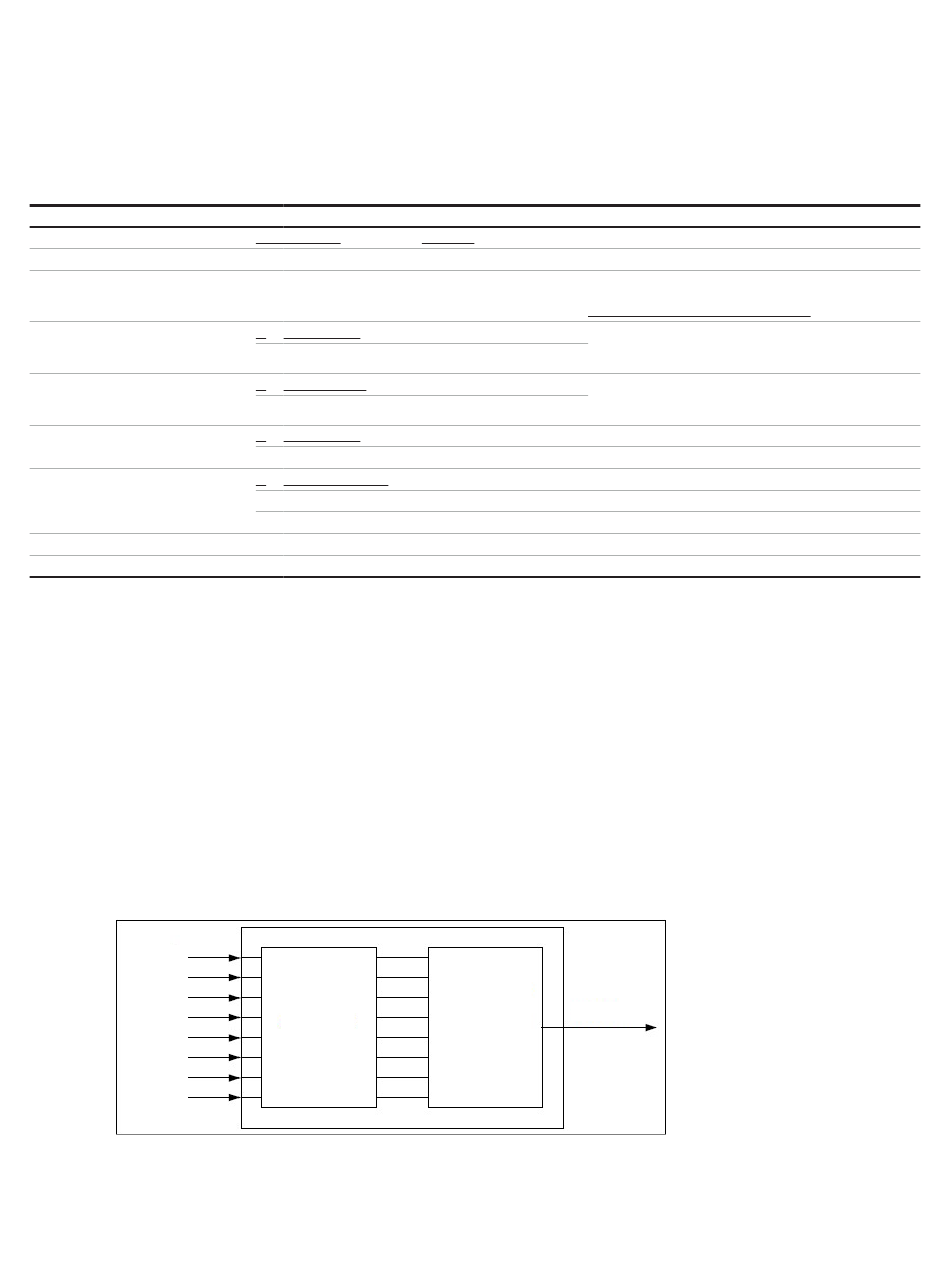

Block Diagram

IN_1
IN_2
IN_3
IN_4
IN_5
IN_6
IN_7
IN_8

Description

The Channel selects the input to be propagated in output at the connected transducer block.
Description / Range / Selections / Notes
Default string:
"Input 7"
"********"
Each IN has an associated bit in order to
enable disable its use
Bit 7 = IN8 .....................Bit 0 = IN1
1:
OFF (default)
2:
ON
1:
FAST (default)
2:
SLOW
1:
OFF (default)
2:
ON
1:
Disabled (default)
2:
Enabled
3:
Squawk once
Number of power cycle
Counter of how much time the device has been powered on expressed in days/hours/mins.
BLOCK
ALGORITHM
Bit x = 0 – Input not used/enabled
Bit x = 1 – Input used/enabled
Default = 00000001 = only IN1 enabled
When IN_SEQUENCE = ON, the MAO Channel must switch
to the next ENABLED Inputs evaluating the IN_ENABLED
bit corresponding to the channel number
When IN_SEQUENCE = ON, this parameter specify at which
rate chance the IN selection. Every 6 seconds when FAST
and 12 seconds when SLOW.
Quality Status text view
Status Byte decimal number view
Squawk = off
Squawk blinking
Blink for 2 seconds
OUTPUT SNAP
TO
CHANNEL
TRANSDUCER
BLOCK INPUTS
