UVP Minidizer Hybridization Oven

Installation

The Minidizer Hybridization Oven has capacity for four 35x150mm bottles and eight 50ml or 15ml conical
plastic tubes. Combinations of multiple-sized bottles may be used at the same time.
1. To insert bottles or tubes into the carousel, gently
press them into the clips.
2. To insert bottle holder, begin by placing the large end
of the bottle holder into the slotted holder on the right
wall. Twist until the shaft locks into place, then slide the
rod end into the black holder on the left wall. Compress
the spring-loaded locking pins and rotate until aligned
with the spindle on the right wall.
NOTE: ALWAYS USE AN EVEN NUMBER OF BOTTLES AND LOAD
BOTTLES OPPOSITE EACH OTHER TO BALANCE THE BOTTLE
HOLDER. THIS PREVENTS EXCESSIVE WEAR OF THE BEARINGS
AND DRIVE MOTOR.

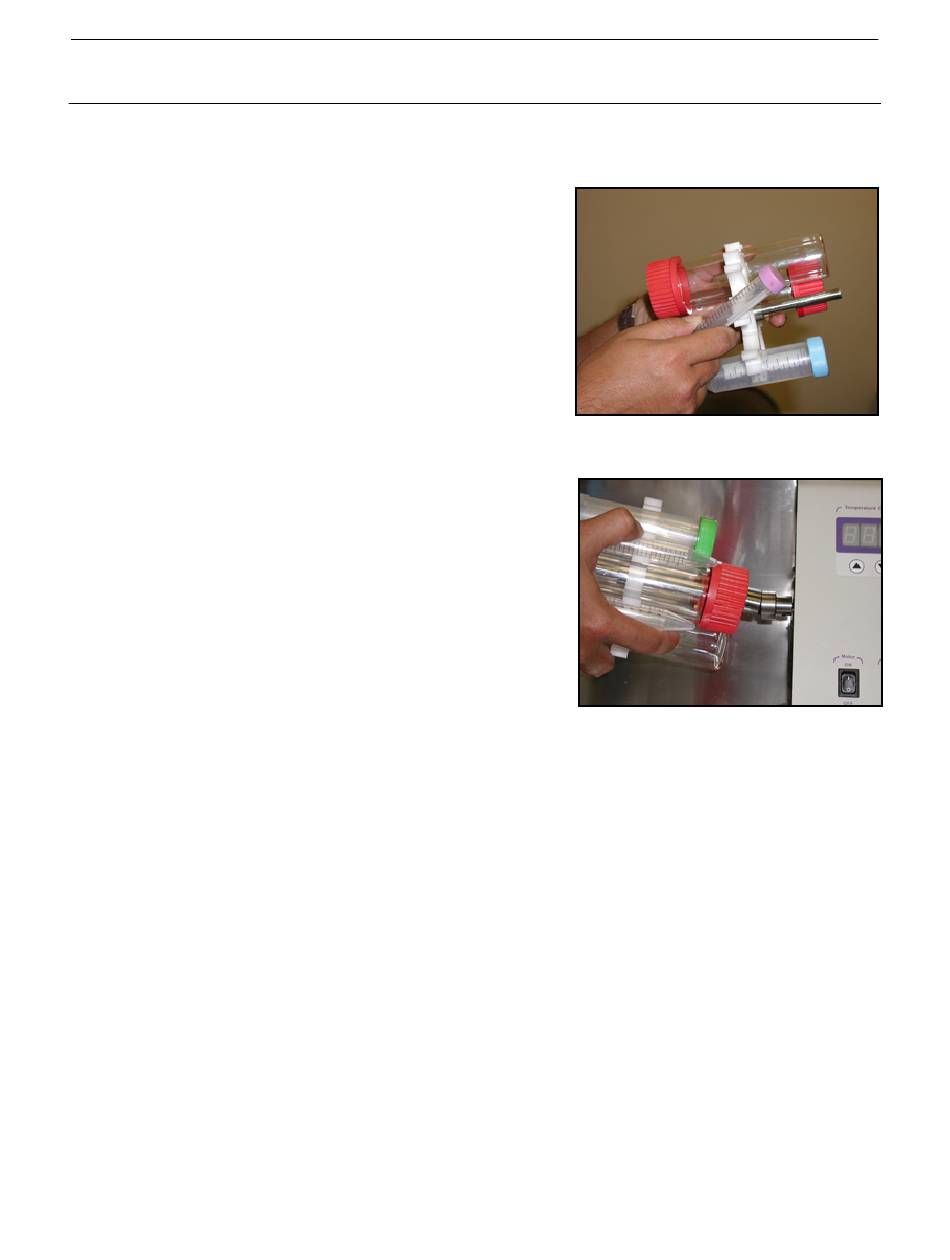

Installing the bottles and tubes
Installing the carousel
81-0169-02 Rev J
5
