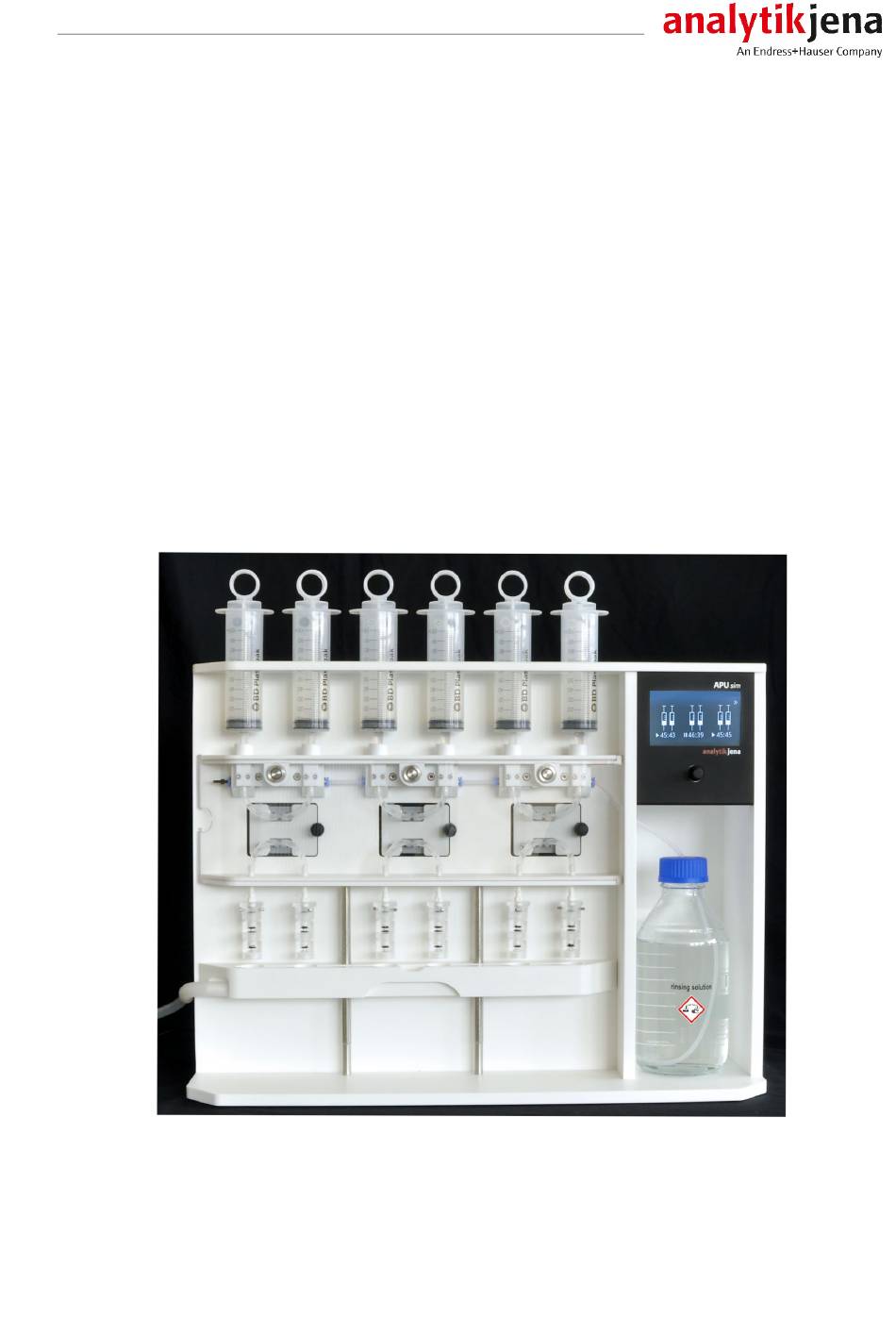

- Page 1 Operating Manual APUsim Sample Preparation Unit...
- Page 2 Analytik Jena GmbH Manufacturer Konrad-Zuse-Str.1 07745 Jena Germany Phone + 49 3641 77 70 + 49 3641 77 9279 Email info@analytik-jena.com Analytik Jena GmbH Service Konrad-Zuse-Str. 1 07745 Jena Germany Phone + 49 3641 77 7407 Email service@analytik-jena.com http://www.analytik-jena.com General information 11-0606-001-23...
-
Page 3: Table Of Contents
Contents Contents Basic Information ....................... 3 Using the APUsim ....................3 About this user manual ..................3 Warranty and liability .................... 4 Safety instructions ......................5 General notes ....................... 5 Warning and information labels at the APUsim ............ 5 Requirements for the operating personnel ............5 Safety instructions, transport and installation ............ - Page 4 Contents APUsim...
-
Page 5: Basic Information
Basic Information Basic Information Using the APUsim The APUsim sample preparation unit is an automatic adsorption system for the sample prepara- tion for AOX determination using the column method in accordance with DIN EN ISO 9562 and DIN 38409/14. Up to 6 samples can be processed simultaneously with the APUsim. For the adsorption process the sample volume, rinse volume and dosing speed can be varied. -
Page 6: Warranty And Liability
Basic Information WARNING This signal word indicates medium risk hazards. If not avoided, they can lead to death or serious injuries. CAUTION This signal word indicates low risk hazards. If not avoided, they can lead to minor or moderate injuries. ATTENTION Follow the instructions marked in this way in order to avoid material damage and operating errors. -
Page 7: Safety Instructions
Safety instructions Safety instructions General notes For your own safety and for a trouble-free operation, read this chapter with care before commissioning the APUsim. Observe all safety notices contained in the user manual. Besides the safety instructions in this user manual and the local safety regulations that ... -
Page 8: Safety Instructions, Transport And Installation
Safety instructions Safety instructions, transport and installation Only transport the sample preparation unit APUsim in its original packaging! Prepare the APUsim for transport, i.e. drain the equipment completely and remove all lose parts To prevent health damage the following must be observed when moving the device in the ... -
Page 9: Handling Of Samples And Reagents
Safety instructions 2.5.4 Handling of samples and reagents The operator is responsible for the selection of substances used in the process as well as for their safe handling. This is particularly important for radioactive, infectious, poisonous, corrosive, combustible, explosive and otherwise dangerous substances. When handling dangerous substances local safety instructions and guidelines must be ... -
Page 10: Technical Data
Technical data Technical data General characteristics Designation/type APUsim Basic device dimensions (W x H x D) 450 mm x 600 mm x 205 mm Mass app. 20 kg Procedural data Number of samples AOX Sample volume 5 – 100 mL, 1 mL step Rinse volume 0 –... -
Page 11: Installation Conditions
Installation conditions Installation conditions Environmental conditions The APUsim may only be operated in closed rooms. The location must have the appearance of a chemical laboratory. it must be devoid of dust, drafts, vibrations and caustic fumes. Smoking is prohibited in the ... -
Page 12: Space Requirement
Installation conditions Switching-on conditions Voltage 24 V via external power supply Power consumption 50 W max. Current consumption 2.1 A max. Grid voltage of external power supply 100 – 240 V Interference suppression in accordance with the provisions of (electromagnetic compatibility) EN 55022 class A Overview 2 Power supply... -
Page 13: Design And Operation Of The Apusim
Design and operation of the APUsim Design and operation of the APUsim Display AOX columns (here: duplex columns) Control knob Sample tube Rinse tube Service flap with tube pump Storage bottle for rinse solution Start button (for the 1st pump unit) Drainage channel Syringe for sampling Figure 1... - Page 14 Design and operation of the APUsim Figure 2 Tube diagram The sample preparation unit ensures a high particle handling capacity up to 1 mm. The tube pumps and their tube system (internal diameter 2 mm) are robust against clogging. No sample passes through the change-over valves, only clear rinse solution (see Figure 4 p.
- Page 15 Design and operation of the APUsim Figure 4 Tube diagram APUsim...
-
Page 16: Commissioning
Commissioning Commissioning CAUTION! Prevent any unauthorized interference! The device may only be assembled, installed and repaired by the service engineers from Ana- lytik Jena or by technical personnel authorized and trained by Analytik Jena. ATTENTION The APUsim must be switched off prior to each installation! Connecting or disconnecting electrical plug-in contacts might damage the sensitive electronics. -
Page 17: Operation
Operation Operation Screen layout By rotating the control knob you can select one of three windows in the display: Start window Display of the processing time for each pump unit Input window Parameter configuration: Sample volume, rinse volume and dosing speed Calibration window Enable the calibration mode Enter the calculated masses in... -
Page 18: Configuring The Parameters For The Sample Preparation
Operation Configuring the parameters for the sample preparation The sample preparation unit APUsim has three pump units with two channels each. The pa- rameters for sample preparation can be configured individually for each pump unit. DIN EN ISO 9562 specifies the following parameters for AOX determination using the column method: Sam- ple volume 100 mL, rinse volume 25 mL, dosing speed 3 mL/min. -
Page 19: Automatic Sample Preparation
Operation Starting or stopping the sample preparation The start buttons at the pump units (9 in Figure 1) are used to start or stop the sample prepara- tion. The start window displays the calculated processing time briefly at the start of the meas- urement. -
Page 20: Manual Sample Preparation For Samples With Particles
Operation Note: There is a risk of splashing if the drainage channel is located too low under the col- umn unit. Fill the plastic syringes with the desired volume of the acidified samples. Insert the syringes into the APUsim. Ensure the tight closure of the connection using the sealing ring. Switch on the APUsim from the mains switch at the equipment backplate. -
Page 21: Manual Sample Preparation With Solid Phase Extraction (Spe-Aox)
Operation Slide the drainage channel directly under the column units. Note: There is a risk of splashing if the drainage channel is located too low under the col- umn unit. Fill the desired volume of the acidified samples into the plastic syringes. Note: Use syringes without pistons in the manual mode. - Page 22 Operation Solid phase extraction Attach SPE cartridges via the Luer lock. Condition the SPE cartridges with metha- nol. Add filtered and acidified samples to the SPE cartridges. Rinse SPE cartridges with nitric NaNO solution to flush out interfering matrix components.
-
Page 23: Performing A Calibration
Operation Performing a calibration A calibration is necessary: after replacing the tube system • ≠ 3 mL/min) if the syringe is not fully emptied during the processing time • • in case of deviations from the standard conditions (v dosing Each pump unit can be calibrated individually;... - Page 24 Operation Select the calibration window by rotating the control knob. Start the calibration by pressing the start button at the pump unit. Let the calibration run to completion. A signal tone sounds at the end of the calibration. Weigh the two beakers with the collected water. Calculate the mass of the water by calcu- lating the difference: –...
-
Page 25: Maintenance And Care
Maintenance and care Maintenance and care Maintenance overview Maintenance item Action Frequency Base device Clean daily during decommissioning Remove fluid from the in case of residue in the drainage channel drainage channel Pump and connection Rinse with ultrapure water daily during decommissioning tubes Replace complete tube system. - Page 26 Maintenance and care Detach the connection tubes with the tube lifter from the top and bottom con- nections. To this end, slightly lift the tube with the tube lifter and pull it off with the other hand. Open the service flap. Detach the tension clamp with light pres- sure.
-
Page 27: Replacing The Sealing Rings In The Syringe Adapter
Maintenance and care Close the pump with the tension clamp. Note: Make sure that the tension clamp engages in its guide. It is easier for the clamp to engage with the pump running. Therefore, switch on the pump after inserting the tension clamp and press against the center of the tension clamp. -
Page 28: Fault Removal
Fault removal Fault removal Error Sample is not being pumped through the system. Cause Remedy Clogging due to particles being too big Cancel the sample preparation, fill ultrapure water into the plastic syringes, rinse the system via the control software Pump faulty Inform customer service Error... -
Page 29: Transport And Storage
Transport and storage Transport and storage CAUTION Risk of injury! 2 persons are required to transport the device and must position themselves on both sides of the equipment. Because the device does not have carrying handles, grip the device firmly with both hands at the lower end.
