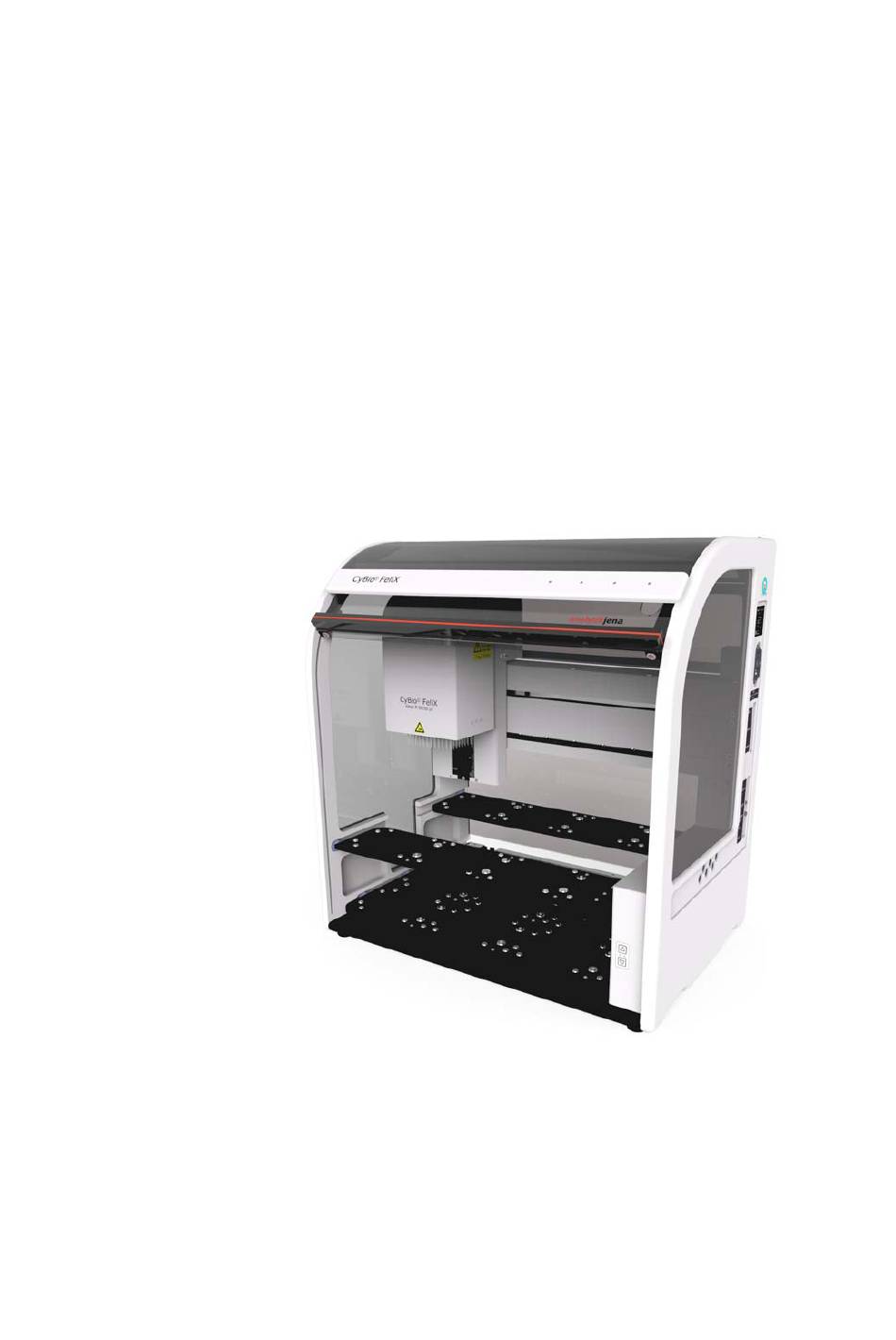

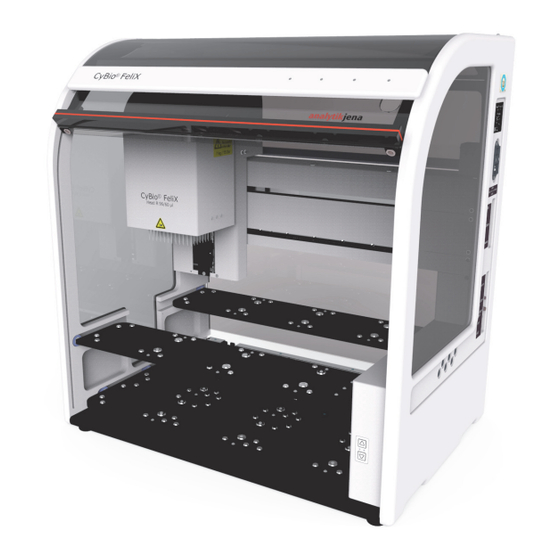

CyBio FeliX
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Analytik Jena CyBio FeliX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Analytik Jena CyBio FeliX

Summary of Contents for Endress+Hauser Analytik Jena CyBio FeliX

  • Page 1 CyBio FeliX Operating instructions...
  • Page 2 Copyright Copyright: 2022 Analytik Jena GmbH All rights reserved. No part of this documentation may be dupli- cated, photocopied, saved to a storage system or transferred to electronic media without prior written permission of the pub- lisher. Manufacturer Analytik Jena GmbH Konrad-Zuse-Straße 1 07745 Jena, Germany Germany...
  • Page 3 CyBio FeliX Rev. B 2022/02...
  • Page 4 CyBio FeliX Rev. B 2022/02...
  • Page 5 CyBio FeliX EC Declaration of Conformity (reproduction of the content) Name and address of the manufacturer: Analytik Jena GmbH Konrad-Zuse-Straße 1 D-07745 Jena Herewith we declare, that the product described below CyBio FeliX  30-5015-100-24  30-5015-600-24  30-5015-125-25 is complying with all corresponding requirements of the Machinery Directive 2006/42/EC. In addition the product is in conformity with the EC Directive relating to electromagnetic compatibility 2014/30/EU.
  • Page 6 CyBio FeliX EC Declaration of Conformity (reproduction of the content) Name and address of the manufacturer: Analytik Jena GmbH Konrad-Zuse-Straße 1 D-07745 Jena Herewith we declare, that the product described below CyBio FeliX  30-5015-500-25 is complying with all corresponding requirements of the Machinery Directive 2006/42/EC. In addition the product is in conformity with the EC Directive relating to electromagnetic compatibility 2014/30/EU.
  • Page 7 CyBio FeliX C E R T I F I C A T E No. U8 037158 0008 Rev. 00 Holder of Certificate: Analytik Jena GmbH Konrad-Zuse-Str. 1 07745 Jena GERMANY 037158 Production Facility(ies): Certification Mark: Product: Laboratory equipment Model(s): CyBio FeliX Rated voltage: 100-240 VAC Parameters:...
  • Page 8 CyBio FeliX VIII Rev. B 2022/02...

  • Page 9: Table Of Contents

    CyBio FeliX Table of Content ................1 General information Notes ........................1 Target group ......................1 Conventions ......................2 1.3.1 Text marks....................... 2 1.3.2 Design of notes ....................... 3 Intended use ......................4 Conforming Use .......................4 Warranty & Liability ....................6 Scope of delivery .....................6 ................
  • Page 10 CyBio FeliX 5.2.3 Storage ........................41 ....................43 Start-up Site requirements ....................43 6.1.1 Installation Requirements ..................43 6.1.2 Spatial Requirements.................... 43 6.1.3 Power Supply ......................44 Initial start-up and configuration ................ 45 Function Tests ...................... 46 6.3.1 Precision test......................46 6.3.2 Accuracy Test ......................
  • Page 11 CyBio FeliX ..............87 Accessories and Spare parts 10.1 Accessories ......................87 10.1.1Pipette tips ......................87 10.2 Pipetting Heads ....................88 10.3 Liquid handling /CHOICE adapter ............... 89 10.4 Holder ........................89 10.5 Further Accessories ....................90 10.6 Spare parts ......................90 ....................
  • Page 12 CyBio FeliX Rev. B 2022/02...
  • Page 13 CyBio FeliX Table of Figures Fig. 1: Certification mark on the device ........12 Fig.
  • Page 14 CyBio FeliX Rev. B 2022/02...

  • Page 15: General Information

    CyBio FeliX General information General information Notes These operating instructions provide information on the design and function of the device and qualified operating personnel with the necessary knowledge for safe operation. Furthermore, the operating instructions contain information on the care of the device and the maintenance scope provided by the manufacturer.

  • Page 16: Conventions

    General information CyBio FeliX Conventions 1.3.1 Text marks Instructions for actions which occur in chronological order are numbered, combined in action units and provided with the corresponding result. Lists which are not in chronological order are shown as itemized lists, sub-listings or as bullet points.

  • Page 17: Design Of Notes

    CyBio FeliX General information 1.3.2 Design of notes WARNING Indicates a potentially hazardous situation which, if not prevented, can result in death or most serious injuries. CAUTION Dangerous situation! Potential consequences: Mild or minor injuries. NOTE Dangerous situation! Potential consequences: Material damage! Useful application tips, no risk or hazard.

  • Page 18: Intended Use

    General information CyBio FeliX Intended use The device is a simultaneous pipetting system (depending on model version or pipetting head from 1 to a maximum of 384 channels) and intended for the automatic processing of microplates. The system's range of applications is limited by the functional scope of available software and firmware and by the scope of delivery.
  • Page 19 CyBio FeliX General information The term non-conforming use will include, but is not limited to:  the use of the device in medical laboratories not affiliated with research  working with explosive or aggressive substances  working in explosive atmospheres - use in potentially explosive areas is not permitted NOTE System operation with involvement of hazardous substances will be the sole responsi- bility of the user!

  • Page 20: Warranty & Liability

    General information CyBio FeliX Warranty & Liability The duration of the warranty as well as the liability correspond to the legal regulations as well as the regulations in the general terms and conditions of the manufac- turer. Warranty will be limited to repair services or replacement of damaged parts. It will exclude consequential damage of any kind.

  • Page 21: Technical Specifications

    CyBio FeliX Technical Specifications Technical Specifications General data Version with enclosure/louver Pipettor Name CyBio FeliX Model number 30-5015-100-24/OL5015-100-24 Pipetting channels 1 – 384 channels (depending on version and pipetting head) Dimensions and weight Dimensions Width x height x depth approx. 650 x 665/700 x 450 mm Weight: •...
  • Page 22 Technical Specifications CyBio FeliX Version without enclosure/louver Pipettor Name CyBio FeliX Model number 30-5015-500-24 Model number 30-5015-401-24 Pipetting channels 1 – 384 channels (depending on version and pipetting head) Dimensions and weight Dimensions Width x height x depth approx. 650 x 645 /665 x 450 mm Weight:...

  • Page 23: Overview Operating Data/Conditions

    CyBio FeliX Technical Specifications Overview operating data/conditions Technical operating data Application class Bench-top device, closed room facilities in clean condition Permissible altitude up to 2000 m Protection class Mains voltage 100 – 240 V AC ±10% Frequency 50/60 Hz Connection value label on the device (label) Protective fusing 2 fuses 5 x 20 mm...
  • Page 24 Technical Specifications CyBio FeliX Rev. B 2022/02...

  • Page 25: Safety Instructions

    CyBio FeliX Safety instructions Safety instructions General NOTE For your own safety and to ensure error-free and safe device operation, please read this chapter carefully before commissioning! Comply with all safety instructions described in these operating instructions in the next chapters before the corresponding measures and with all messages and notes which are dis- played on the screen by the software.

  • Page 26: Standards & Directives

    Safety instructions CyBio FeliX Standards & Directives The device has been built in accordance with the currently valid rules of technology and the recognized safety rules. The system and its components have been designed in accordance with basic safety and EU directives health requirements in applicable laws, standards and guideline regulations.

  • Page 27: Safety Markings

    CyBio FeliX Safety instructions Safety markings Legal prescriptions require safety labeling as a mandatory component of the accident pre- vention measures. As such, safety labeling helps ensuring health and safety at the work- place. NOTE The warning labels and safety symbols attached to the device are an integral part of the device or its components and must be strictly observed! Before switching on the device, check that warning notes and safety symbols are com- plete and intact.
  • Page 28 Safety instructions CyBio FeliX Table 4: Mandatory action labels Mandatory action Meaning comment labels Observe the instructions! Wear eye Define type and quality of the protection! protection measure within the framework of the work- place evaluation. Pull the mains plug! Wear hand Define type and quality of protection!

  • Page 29: Fig. 2: Warning Signs On The Device

    CyBio FeliX Safety instructions Fig. 2: Warning signs on the device Fig. 3: Warning sign on pipetting head Rev. B 2022/02...

  • Page 30: Danger Areas

    Safety instructions CyBio FeliX Danger areas The movements of assemblies can pose a risk to the operating personnel. Failure to observe warning notes may result in pinching or crushing of one's hands. Any interference with the instrument during operation can cause material damage to the instrument and the specimens.

  • Page 31: Protective Devices

    CyBio FeliX Safety instructions Protective devices The open external E-STOP* signals that a monitored room - outside the device - is accessible (e.g. the door of an enclosure is open). Requirements On Personnel  The system may not be started up, operated or maintained other than by duly trained Requirements that arise from a expert personnel having received instructions on operational safety.

  • Page 32: Safety Notes For Operation

    Safety instructions CyBio FeliX Safety Notes for Operation 2.8.1 General  Operating personnel are obliged to convince themselves of the proper technical condi- tion of the system and its components, including any safety devices, before they can proceed to action for powering up. This applies in particular after each modification or extension of the system or its repair.

  • Page 33: Handling Of Dangerous Substances

    CyBio FeliX Safety instructions  Always turn system power off before you perform work for maintenance or cleaning of the system. Before doing so, disconnect the power plug from the mains socket. 2.8.5 Handling of Dangerous Substances NOTE When working on the device or on accessories it is recommended to wear personal pro- tective equipment (PPE).

  • Page 34: Chemical Resistance

    Safety instructions CyBio FeliX 2.8.6 Chemical Resistance The manufacturer cannot be held liable if the operator of the device analyzes aggressive substances which may affect the durability of the components.  Caution when handling bases, acids and organic solutions. These substances may nega- tively affect the useful life of the device.
  • Page 35 CyBio FeliX Safety instructions The components listed in the overview (Tabelle 7, “Components,” auf Seite 16), the Basic device CyBio FeliX (including the corresponding pipetting heads) and any accessories are not resistant to the following substances: Table 8: Substances Substances Hydrofluoric acid (HF) Highly concentrated acids Cleaning powder...
  • Page 36 Safety instructions CyBio FeliX Approved for wipe disinfection (Tabelle 9, “Disinfection methods / disinfectants,” auf Disinfection and chemical resistance Seite 17):  CyBio FeliXBasic units (OL5015-2X-1XX / OL5015-2X-5XX)  CyBio FeliX Heads (OL3316-14-X5X)  Cover magazine (transport protection; OL3316-11-200)  BioShake 3000 series (QINSTRUMENTS-2016-0XXX) ...

  • Page 37: Rules Of Conduct In Case Of Emergency

    CyBio FeliX Safety instructions Rules of conduct in case of Emergency In dangerous situations or in case of accidents, switch off the device immediately by press- ing the main switch (on/off switch of the device) and/or pull the mains plug out of the mains socket! Since prompt reaction can save lives in a situation of danger, make sure that the following requirements are met:...
  • Page 38 Safety instructions CyBio FeliX Rev. B 2022/02...

  • Page 39: Technical Description

    CyBio FeliX Technical description Technical description Set-up/components 4.1.1 CyBio FeliX - Overview Version with enclosure/louver Fig. 5: Version with louver/enclosure Enclosure with louver → „Enclosure and louver” on page 27 Upper decks Lower deck → „Decks” on page 28 Device feet LED –...

  • Page 40: Fig. 6: Version Without Louver/Enclosure

    Technical description CyBio FeliX Version without enclosure/louver Fig. 6: Version without louver/enclosure Head mount → „Head mount” on page 33 Bar code reader port* see Accessory instructions Head locking lever Pos. 3,→ see Fig. 14 on page 33 Upper decks Lower deck →...

  • Page 41: Type Plate

    CyBio FeliX Technical description 4.1.2 Type plate Fig. 7: Type plate for the version with enclosure/louver Fig. 8: Type plate for the version without enclosure/louver Information on the type label:  Manufacturer’s information  Product designations (type designation, trade name) ...

  • Page 42: Decks

    Technical description CyBio FeliX (LED) → „Operating status indicator” on page 31. 4.1.4 Decks Fig. 9: Deck positions Observe the following position assignment:  Deck A (lower deck): Positions 1 – 6  Deck B (upper, rear deck): Positions 7 – 9 ...

  • Page 43: Fig. 10: Heights - Deck A, B And C

    CyBio FeliX Technical description If it is intended to use accessories on the upper level decks that are adjacent higher than micro plates that are lying on “Zero” deck level, height observation is required because of the optimized raster. NOTE Dangerous situation - potential consequences: Material damage! If no height observation/adjustment is performed, there is the danger of collisions of the pipetting head with the accessories on the neighboring deck positions!

  • Page 44: Fig. 11: Heights - Deck A, B And C

    Technical description CyBio FeliX Deck heights (device with 70 mm height - deck B/C) Fig. 11: Heights – deck A, B and C Please refer to the figure and the following table for detailed information: Table 11: Compilation Deck Heigh Description Remarks Height...

  • Page 45: Operating Status Indicator

    CyBio FeliX Technical description 4.1.5 Operating status indicator LED – Operating status indicator/ Arrow keys / Fig. 12: LED – Operating status indicator/ Arrow keys The operating status indicator is located on the front panel of the device. This provides the operator with information about the current status of the device and is visible from the outside when the louver is closed.

  • Page 46: Fig. 13: Led - Operating Status Indicator/Button

    Technical description CyBio FeliX LED – operating status indicator/ button Fig. 13: LED – Operating status indicator/button The operating status indicator is located on the front panel of the device. This provides the operator with information about the current status of the device and is visible from the outside when the louver is closed.

  • Page 47: Head Mount

    CyBio FeliX Technical description 4.1.6 Head mount Fig. 14: Head mount Dovetail guide Electrical connection Head locking lever Note: Swivel the head locking lever (Pos. 3, → see Fig. 14) forward if no pipetting head is attached (the pipetting head may only be pushed on in this position of the head locking lever;...

  • Page 48: Pipetting Heads (Pipetting Heads)/Versions

    Technical description CyBio FeliX 4.1.7 Pipetting heads (Pipetting heads)/versions* The following pipetting head versions are provided for the device:  CyBio FeliX pipetting head T  CyBio FeliX pipetting head R  CHOICE pipetting head It is possible that - at the time of printing of these instructions - different pipetting head versions are not yet part of the sales offer.

  • Page 49: Connector Panel

    CyBio FeliX Technical description 4.1.9 Connector panel The connectors and interfaces are located at the side of the device. Fig. 16: Connectors USB socket type B Sub-D socket 9-pin (COM IN) Network socket* Fig. 17: Connectors Sub-D plug 9-pin (COM OUT) M8 4-pin plug (E-STOP IN) M8 4-pin bushing (E-STOP OUT) I/O 1...
  • Page 50 Technical description CyBio FeliX Table 16: Communication interfaces → see Fig. 16 on page Description USB communication interface (to HOST-PC) COM IN RS 232 communication interface (to HOST-PC) ETHERNET Network connection 1 Communication interfaces Consult the manufacturer regarding dedicated interfaces (→ see Fig. 17). Table 17: Dedicated interfaces →...

  • Page 51: Working Mode

    CyBio FeliX Technical description Working mode The pipettor operates according to the air displacement principle. The pipette tips and internal seals form air spaces. In it move the pistons, which are mechanically connected to a common drive. The piston movement creates a negative or positive pressure, which causes the suction and discharge of liquids.
  • Page 52 Technical description CyBio FeliX Rev. B 2022/02...

  • Page 53: Packing, Transport And Storage

    CyBio FeliX Packing, transport and storage Packing, transport and storage Safety Notes CAUTION Risk of injury or damage to property! Always reach under the frame. Make sure that the transport locks are in place. NOTE Environmental influences, mechanical shocks or formation of condensed water may destroy individual system components! Adequate precautions should be taken to protect all components from environmental impacts, mechanical shock or formation of condensed water during transportation or...

  • Page 54: Packaging

    Packing, transport and storage CyBio FeliX Packaging 5.2.1 Attach transport locks Check that the head mount is in the cen- ter. Check that the lower deck is pushed to the rearmost position and the upper decks are fully apart. Insert transport lock of the decks.

  • Page 55: Packing The Device

    CyBio FeliX Packing, transport and storage 5.2.2 Packing the device CyBio FeliX transport box:  Plywood box with upholstered panels (approx. 1000 x 740 x 800 mm)  Upholstery strips  Bag with matching screws and washers Place the device on the bottom of the packaging.
  • Page 56 Packing, transport and storage CyBio FeliX Rev. B 2022/02...

  • Page 57: Start-Up

    CyBio FeliX Start-up Start-up Site requirements 6.1.1 Installation Requirements The following requirements are placed on the climatic conditions in the operating room of the device:  Temperature range: +15 °C to 35 °C  Allowable relative air humidity: ≤ 75 % at 35 °C, no condensate formation The atmosphere inside the operating room should be dust-free to a maximum possible degree, free from drafts and free from etching vapors.

  • Page 58: Power Supply

    Start-up CyBio FeliX 6.1.3 Power Supply WARNING If the grounding conductors are interrupted, there is risk of fatal injury due to electric shock! Never connect the mains plug of the device to a mains socket without a protective earth contact! Make sure that the protection effect is not rendered ineffective by extension cables without a PE contact or by the use of a voltage regulating transformer.

  • Page 59: Initial Start-Up And Configuration

    CyBio FeliX Start-up Initial start-up and configuration Due to the complexity of the device and in order to ensure proper functioning, the installa- tion, initial start-up and configuration in your house will be carried out entirely by the manufacturer's customer service or by specialized personnel authorized by them. Initial start-up essentially includes: ...

  • Page 60: Function Tests

    Start-up CyBio FeliX Function Tests After production, the tests described in this chapter are carried out under standardized conditions (measuring room). The logs* are part of the scope of delivery. 6.3.1 Precision test Testing for variation coefficient (variation coefficient percentage standard deviation) is performed, using a dye solution in a 96 well or 384 well microplate with flat transparent bottom.

  • Page 61: Operation

    CyBio FeliX Operation Operation Switching on (operational readiness) Check that power cord is correctly connected to the line power supply point . Check if the louver is closed. Switch the power switch (on the right device side) to position "I" (→...

  • Page 62: Establish Operation After Abort (E.g. Due To Power Failure)

    Operation CyBio FeliX Establish operation after abort (e.g. due to power failure) After an unforeseen failure  e.g. after a power failure, or  after an abort (by switching off or interruption of the PC link), you can put the pipettor back into operational readiness. First make sure that a safe start-up is possible, and then perform the following steps: Move the pipetting head in the Z-direction (by means of PC control or manually Move the pipetting head out of the...

  • Page 63: Changing The Pipetting Head

    CyBio FeliX Operation Changing the pipetting head CAUTION Dangerous situation! Risk of crushing as the louver is opened and closed. 1 Does not apply to the version without enclosure/louver (e.g. 30-5015-500-24). CAUTION Dangerous situation! Risk of crushing - the pipetting head has a mass of approx. 6 - 7 kg. Always hold the pipetting head with both hands.

  • Page 64: Insert The Pipetting Head

    Operation CyBio FeliX 7.3.1 Insert the pipetting head Make sure that the head mount is in the center of the unit and not in the uppermost vertical position. Swivel the clamping lever forward. Fig. 19: Head mount (clamping lever swiveled forward) Insert the pipetting head.

  • Page 65: Removing The Pipetting Head

    CyBio FeliX Operation 7.3.2 Removing the pipetting head X- and Z-axis should be in head change position → „Changing the pipetting head” on page 49. Insert transport lock → „Turning off” on page 68. Open louver Swivel the clamping lever forward. Fig.

  • Page 66: Manual Operation

    Operation CyBio FeliX Manual operation CAUTION Risk of crushing! Potential consequences: Mild or minor injuries. 7.4.1 Axes of motion Fig. 25: Axes of motion  Pipetting head: X and/or Z direction Pipetting head/decks - direction of movement  Decks: Y direction The following manual/electric adjustment options are available: Table 18: Manual and electric adjustment options Direction...

  • Page 67: Move The Pipetting Head In The Z Direction

    CyBio FeliX Operation 7.4.2 Move the pipetting head in the Z direction Move pipetting head (arrow key ver- sion /) CAUTION Dangerous situation! Movements are executed slowly. Nevertheless, do not reach into the device when drives are being moved. Only possible if the louver is closed.
  • Page 68 Operation CyBio FeliX Moving the pipetting head (LED but- ton version) CAUTION Dangerous situation! Movements are executed slowly. Nevertheless, do not reach into the device when drives are being moved. Only possible when the louver and/or the external E-STOP* are open. The function is used to move the Z axis in order to be able to move the pipetting head upwards so that it can be removed or changed.

  • Page 69: Deck Configuration

    CyBio FeliX Operation Deck Configuration The pipettor CyBio FeliX has 3 decks (A, B and C) arranged in 2 levels (→ „Axes of motion” on page 52). Deck A (below) is designed to provide accessories such as tips and tip wash station. The maximum labware height on this deck is 110 mm.

  • Page 70: Software-Controlled Operation

    Operation CyBio FeliX Software-controlled operation The CyBio FeliX is controlled by a software (CyBio Composer), which allows the simple and fast compilation of specific laboratory routines (Explanations - see the following table, the following sections or the Help menu of the software).
  • Page 71 CyBio FeliX Operation Sym- Function Explanation • • CyBio TipTrays are mounted by electric Anbringen motor (manual change) Load • Automatic pick-up of CyBio RoboTipTrays and liquid handling adapters at selected position • Picking up tips from tip container • CyBio TipTrays are released by electric Entfernen motor (manual change) Unload...

  • Page 72: Attach/Remove Transport Lock

    Operation CyBio FeliX 7.6.2 Attach/remove transport lock After inserting the pipetting head, the transport lock must be removed to make it ready for Pipetting head R operation. Proceed as follows with the help of the software: Check that the device and PC are switched on. Check whether the pipetting head is inserted correctly.

  • Page 73: Preparation Of Head Change / Switch Off

    CyBio FeliX Operation 7.6.3 Preparation of head change / switch off NOTE Dangerous situation! Insert the transport lock before changing the pipetting head to prevent material dam- age. Perform the following steps: Select the "Load" command. Fig. 29: Component window Perform the following configuration: Fig.

  • Page 74: Movements In X, Y And Z Directions

    Operation CyBio FeliX 7.6.4 Movements in X, Y and Z directions With software-based control, the pipette tips are positioned directly above a plate/reser- voir using the "Move to deck position" command. The Z axis is in the uppermost position. Select the reference point for the Z axis as follows: ...

  • Page 75: Fig. 32: Interactive Positioning For Setting An Offset

    CyBio FeliX Operation Fig. 32: Interactive positioning for setting an offset The "Offset" parameter can be used to address positions that are not in the center of the well (e.g., liquid delivery at the edge or use of asymmetric plates such as addressing the reservoir of a protein crystallization plate).

  • Page 76: Tip Pick-Up/Change - Pipetting Head T

    Operation CyBio FeliX 7.6.5 Tip pick-up/change - pipetting head T With the pipetting head T, tip change is performed exclusively manually, but the software is required to loosen and tighten the tips or the transport lock - this is done with the "Load" and "Unload"...

  • Page 77: Tip Pick-Up/Change - Pipetting Head R

    CyBio FeliX Operation 7.6.6 Tip pick-up/change - pipetting head R With the pipetting head R, pipette tips are picked up and deposited automatically. An empty suitable holder must be available on deck A (below, optionally on deck C) for depos- iting pipette tips.

  • Page 78: Fig. 37: Component Window

    Operation CyBio FeliX The fitting of the LH and CHOICE adapters is done in the same way as the fitting of Pick up pipette tips, liquid handling CyBio RoboTipTrays – see → see Fig. 38 (Example for the parameter inputs). and CHOICE adapters When using LH adapters, the corresponding pipette tips must be included.
  • Page 79 CyBio FeliX Operation Compatibility between pipette tips and LH adapters The specified usable volumes of the pipette tips may be limited by the software depend- ing on the pipetting head used. This also applies to pipette tips with filters (filter tips), where a small net volume may be available.

  • Page 80: Fig. 40: Component Window

    Operation CyBio FeliX The CHOICE or liquid handling adapter can also be set down with the tips using a suitable Deposit pipette tips, liquid handling holder (→ see Fig. 42 - this procedure is recommended if the pipette tips are to continue and CHOICE adapters to be used).

  • Page 81: Pipetting

    CyBio FeliX Operation 7.6.7 Pipetting Each piston movement creates a negative or positive pressure during suction or discharge. In order to achieve the corresponding precision, the pressure equalization in the tips must be waited for. In terms of the program, the "Pause" command is used for this purpose. The time required to reach this state depends - among other factors - on the properties of the liquid being handled.

  • Page 82: Turning Off

    Operation CyBio FeliX In 'Reverse pipetting', a defined volume plus an additional excess volume is aspirated with Reverse pipetting (single volume or overstroke and then the defined volume is dispensed exactly. This sequence can be exe- partial volumes) cuted as a repetition if necessary. The residual volume remains in the tip and is discharged into a reservoir at the end.

  • Page 83: 7.8 Troubleshooting

    CyBio FeliX 7.8 Troubleshooting Safety notes Do not carry out any repair work independently. Any warranty claims shall lapse imme- diately. WARNING Danger due to electrical voltage! Observe the safety rules when troubleshooting cables. 7.10 Device not working Check all potential error sources on occurrence of an error. If problems remain after this check or on identification of an undescribed error, you should notify the manufacturer’s customer service or an authorized service partner.

  • Page 84: 7.11 Error Messages By Software

    CyBio FeliX 7.11 Error messages by software Error/Error code Cause Error correction Tightening mechanism Contact your service partner or defective contact the manufacturer. Unknown head type Remove the pipetting head. Switch off the device. Insert the pipetting head correctly. Turn on the device and start an empty software method for initializa- tion.
  • Page 85 CyBio FeliX Error/Error code Cause Error correction Head is not responding Remove the pipetting head. E 27 Switch off the device. Insert the pipetting head correctly. Restart the device and start an empty software method for initializa- tion. If the error still occurs, con- tact your service partner or the manufacturer.

  • Page 86: 7.12 Troubleshooting - Instructions

    CyBio FeliX 7.12 Troubleshooting - Instructions 7.12.1 Changing the device fuse WARNING Danger due to electrical voltage! Always unplug the power cord from the power outlet before changing the fuse. Check that there is no voltage on the device. Fig. 45: Fuses (2x) in the combination element at the rear of the device Name Type/Value...

  • Page 87: 2Led Flashing - Red

    CyBio FeliX 7.12.2 LED flashing – red Detected errors are signaled by red flashing codes as follows: Flashing code Detected error type/comment once Error on internal motor bus twice Defect in the E-STOP system three times Defect in louver monitoring four times Defect in external E-STOP monitoring five times...
  • Page 88 CyBio FeliX Rev. B 2022/02...

  • Page 89: Maintenance & Care

    CyBio FeliX Maintenance & Care Maintenance & Care Safety Notes WARNING Note that contact with voltage-carrying system parts may lead to physical injury or even death! Turn system power off and detach power cable from the line socket before you proceed to any kind of maintenance or care! Secure the device against unintentional restart! Operating personnel are prohibited from performing work for maintenance, repair or adjustment of voltage-carrying system parts!

  • Page 90: Maintenance Work

    Maintenance & Care CyBio FeliX Maintenance Work Carry out maintenance and care work according to the specified intervals regularly, observing the following instructions: Contamination and natural wear of modules give rise to increased strain levels and, hence, an increased probability of failure. Check for signs of wear and tear on assemblies under mechanical strain and initiate necessary replacements promptly on identifying wear and tear.

  • Page 91: Overview

    CyBio FeliX Maintenance & Care 8.2.1 Overview Table 20: Maintenance overview Maintenance task Maintenance intervals Weekly Monthly Every months → „Cleaning the basic unit (including decks)” on page 79 Replace used tips when needed or at least once a week Empty the tip waste system* when needed and clean it...
  • Page 92 Maintenance & Care CyBio FeliX NOTE Remove contamination and damage immediately! However, never use the following substances for cleaning purposes:  Solvents (thinner)  Cleaning powder  Corrosive or flammable agents (e.g. gasoline, acetone)  Phenols or caustic alkaline solutions These cause corrosion on the device surfaces.

  • Page 93: Cleaning The Basic Unit (Including Decks)

    CyBio FeliX Maintenance & Care 8.3.1 Cleaning the basic unit (including decks) NOTE Use a lint-free cloth with a disinfecting / cleaning agent which is recommended by WHO guidelines and which is not excluded in this manual (such as Incidin Liquid, produced by ECOLAB) for cleaning the CyBio FeliX and any accessories which may only be treated us- ing the wipe disinfection method (see chapter →...

  • Page 94: Service The Head Mount

    Maintenance & Care CyBio FeliX 8.3.2 Service the head mount Fig. 47: Head mount Guides Note: Check guides (rails) (cleanliness, burrs, warps, etc.) Grease the rails very thinly with silicone grease. Wipe off any excess grease. 8.3.3 Cleaning cones For security reasons and to ensure tightness, it is important that the cones of the liquid handling adapters are free of soiling when using these adapters.

  • Page 95: Check/Replace The O-Rings

    CyBio FeliX Maintenance & Care 8.3.4 Check/replace the O-rings The O-rings of the CyBio FeliX are constantly subjected to mechanical stress (when using liquid handling adapters) due to contact with the pipette tips. Thus, for safety reasons and to ensure tightness, the O-rings on the cones must be replaced at regular intervals. If a maintenance contract is in place, the Analytik Jena GmbH service department will perform an O-ring replacement at each visit.
  • Page 96 Maintenance & Care CyBio FeliX Removing the old O-ring: Take the O-ring assembly tool with the side intended for the cone facing for- ward and push the tool, with the groove at O-ring height, towards the cone. Then apply a small amount of pressure, finally remove the O-ring assembly tool and the O-ring from the cone.

  • Page 97: Check The Function Of The Louver

    CyBio FeliX Maintenance & Care Fitting the new O-ring Turn the side of the O-ring assembly tool so that the O-ring guide pin is fac- ing up and press it lightly against the cone. Slowly slide one of the threaded O-rings along the O-ring guide pin toward the cone until it reaches its groove.
  • Page 98 Maintenance & Care CyBio FeliX Rev. B 2022/02...

  • Page 99: Shutting Down

    CyBio FeliX Shutting Down Shutting Down CAUTION There is danger of injury and damage to the pipettor if cables are removed before pow- er is turned off! Do not remove cables as long as they are energized! Make absolutely certain that power supply has been cut before you remove a cable! If the CyBio FeliX is not required for a longer period of time, perform shut-down action as described hereafter:...
  • Page 100 Shutting Down CyBio FeliX Rev. B 2022/02...

  • Page 101: Accessories And Spare Parts

    CyBio FeliX Accessories and Spare parts Accessories and Spare parts The pipettor and its accessories are factory-matched to each other. Use only accessories recommended by the manufacturer. The manufacturer will refuse any warranty in the event of damage or function failure as a result of system operation with unspecified accessory items.

  • Page 102: 10.2 Pipetting Heads

    Accessories and Spare parts CyBio FeliX Table 22: Pipette tips for 1-, 8- and 12-channel liquid handling adapters (Head R 96 and CHOICE head) Pipetting head Tip type Order number Head R 96/60 μl CyBio TipBox 96/50 μl OL3811-25-535-N Head R 96/250 μl PCR-certified CHOICE head CyBio TipBox 96/50 μl...

  • Page 103: 10.3 Liquid Handling /Choice Adapter

    CyBio FeliX Accessories and Spare parts 10.3 Liquid handling /CHOICE adapter Table 25: Liquid handling /CHOICE adapter Description Order number 1-channel CHOICE adapter OL3316-11-300 10 – 1000 μl 8-channel CHOICE adapter OL3316-11-330 10 – 1000 μl 8-channel CHOICE adapter OL3316-11-332 0.5 –...

  • Page 104: 10.5 Further Accessories

    Accessories and Spare parts CyBio FeliX 10.5 Further Accessories Table 27: Further Accessories Description Order number UV decontamination; 230 VAC OL5015-24-954 Block 2.0 ml 844-00136-0 Block Combi 844-00137-0 Tip wash basin 96 DW OL3317-11-180 (bottom connection) Tip wash station 384 DW (bottom con- OL3317-11-190 nection) Detailed information on available accessories can be obtained directly from Analytik...

  • Page 105: Disposal

    CyBio FeliX Disposal Disposal 11.1 Consumables Consumable materials must be disposed in accordance with binding workplace safety and environmental provisions of law. 11.2 Reagents  Biological samples must be treated in accordance with locally binding regulations for the handling of infectious material. ...
  • Page 106 Disposal CyBio FeliX Rev. B 2022/02...
  • Page 107 CyBio FeliX Index Index High Breaking Capacity Fuse 9 Accuracy Test 46 Acetone 78 Adjustment mode 54 Gasoline 78 Arrow keys sr 31 Immersion disinfection 22 Basic device 26 Incidin® Liquid 21 Basic unit 25 Installation requirements 43 Briefing and on-the-job training Intended use 4 Kolben in Nullposition 56 Chemical resistance 20...
  • Page 108 Index CyBio FeliX Arrangement 47 Precision test 46 Protective film 41 Re-commissioning 73 Replacing the Orings 81 RoHS 91 Safety markings 13 Safety symbol 13 Scope of delivery 6 Setting tool information 57 Shock indicator 41 Site requirements 43 Spatial requirements 43 Start-up 45 Substances 21 Transport lock...
  • Page 109 CyBio FeliX A 1 Automation systems Safety - an aspect you must always consider! Also consider the documentation of the component supplier 1 See instructions of Pilz GmbH & Co. KG, section on "Safe automation". The following automation solutions are available for the pipettor CyBio FeliX (version without louver): ...

  • Page 110: Fig. 48: Safety Workbench Incl. Door Monitoring Set

    CyBio FeliX A 1.1Version I The safety workbench has a transponder solution for monitoring. Fig. 48: Safety workbench incl. door monitoring set Safety workbench CyBio FeliX Door monitoring set Table 29: Components → Fig. 48 Description Description/Comments Safety workbench Model Safe 2020/Maxisafe 2020 CyBio FeliX 30-5015-500-24 Door monitoring set...

  • Page 111: Fig. 49: Door Monitoring Set

    CyBio FeliX A 1.1.1Door monitoring set Fig. 49: Door monitoring set Transponder Switch Type plate E box Table 30: Components → Fig. 49 Description Description/Comments Transponder PSEN cs1.1 Switch PSEN cs1.1p Type plate Specifications: Manufacturer, product designation (trade name), identification (model, serial number), year of manufacture E box Wiring between switch and...

  • Page 112: Fig. 50: Safety Workbench

    CyBio FeliX A 1.2Version II: This version is equipped with an active optoelectronic protective device (safety light cur- tain). Fig. 50: Safety workbench Safety workbench Light curtain Rev. B 2022/02...

  • Page 113: Fig. 51: Safety Light Curtain

    CyBio FeliX Fig. 51: Safety light curtain Side curtain Front curtain Protected/monitored area Type plate E box Table 31: Description → Fig. 51 Description Description/Comments Light curtains Protected area E.g. for CyBio FeliX (30-5015-500-24) Type plate Specifications: Manufacturer, product designation (trade name), identification (model, serial number), year of manufacture E box...
  • Page 114 CyBio FeliX A 2 Incomplete machine Safety - an aspect you must always consider! The pipettor CyBio FeliX (variant without louver ) is a partly completed machinery (according to Directive 2006/42/EC on machinery). Among other things, a risk assessment must be prepared that evaluates and minimizes hazards (→...
  • Page 115 CyBio FeliX Declaration of Incorporation (reproduction of the content) Name and address of the manufacturer: Analytik Jena GmbH Konrad-Zuse-Straße 1 D-07745 Jena We declare herewith that the following „partly completed machinery“ as a result of design, construction and the version put in circulation complies with the essential requirements of the Directive 2006/42/EC on machinery: Annex I, article 1.1.2, 1.1.3, 1.1.5, 1.1.6, 1.2.1, 1.3.1, 1.3.2, 1.5.1, 1.5.2, 1.5.8, 1.6.3 Designation of the partly completed machinery:...

  • Page 116: Fig. 52: Pin Assignment For The Estop In Connection

    CyBio FeliX A 2.2Pin assignment Fig. 52: Pin assignment for the ESTOP IN connection Table 32: Description Description Description/Comments PIN 1 5 V supply PIN 2 Receiving line (signal line) PIN 3 Mass PIN 4 Transmission line (reporting line) An opening switching element between PIN 2 and PIN 4 interrupts the current flow, result- ing in an E-STOP Rev.

Table of Contents
