Installation and electrical connection

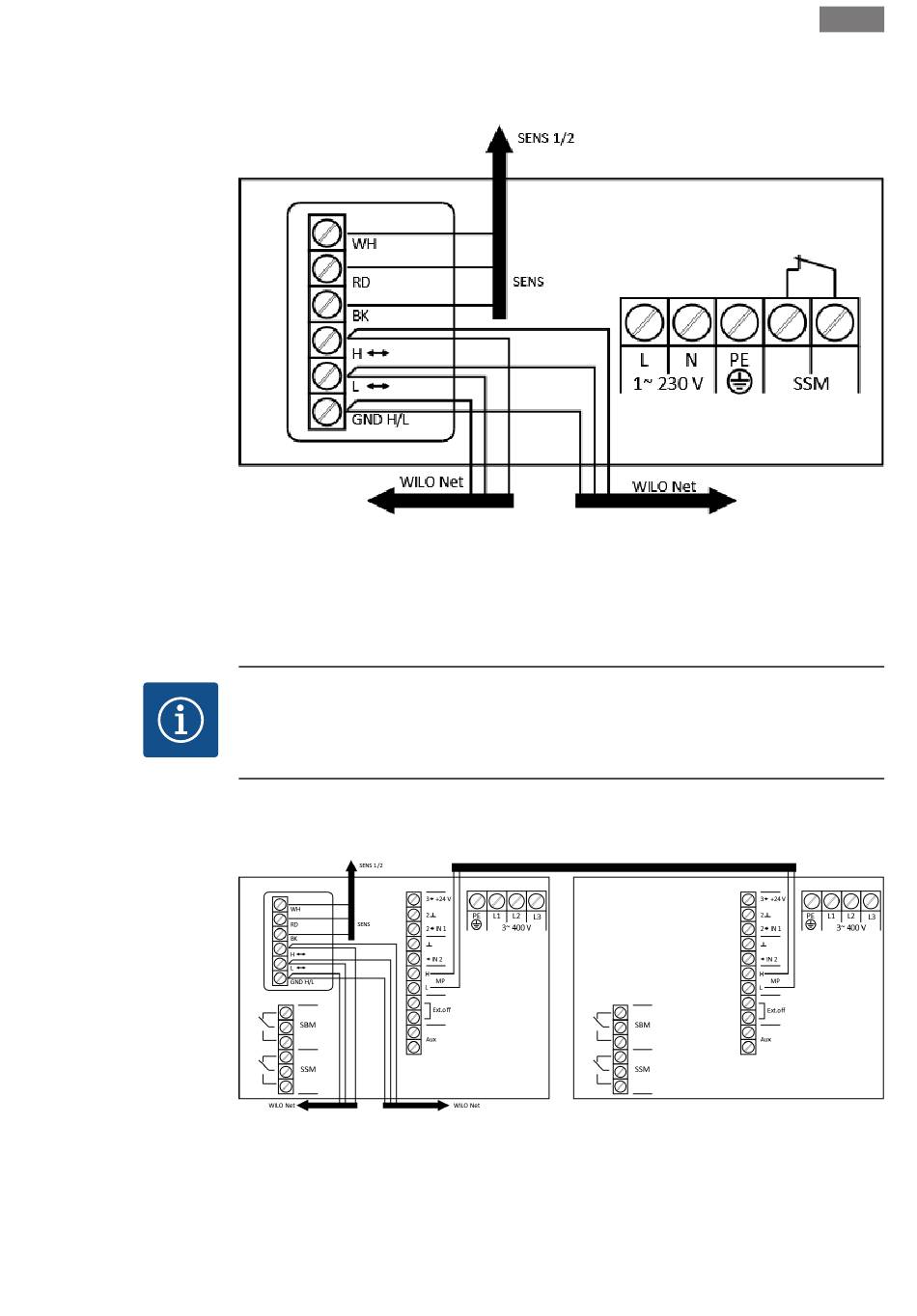

Wilo-Smart IF module Stratos connection:
Fig. 6: Connection
NOTICE
It is not possible to use the Wilo-Stratos twin-head pump function with the Wilo-
Smart IF module Stratos!
Wilo-Smart IF module connection:
Fig. 7: Connection
Installation and operating instructions Wilo-Smart IF-Modul Stratos, Wilo-Smart IF-Modul
1. Position incoming/outgoing BUS cable H/L and GND for Wilo Net.
2. Position the wires of the digital temperature sensor according to their colours
(WH - white, RD - red, BK - black).
1. Position incoming/outgoing BUS cable H/L and GND for Wilo Net.
