Product Introduction - RGBlink mini Quick Start Manual

Product Introduction

mini/mini+ is a "mini" signal switcher and mixer which is able to stream 6-picture PVW or PGM from any one
out of the 4 HDMI inputs to any live broadcasting platform via third party live streaming software such as OBS. It
adopts compact design, equipped with a 2 inch TFT screen to preview the 4 inputs in real time. 14 transition
effects on board work with T-Bar to do transition switching. Along with seamless switching, there are other
outstanding features such as audio embedding, de-embedding, and automatically identifying color depth of
RGB4:4:4, YUV4:4:4, YUV4:2:2,YUV4:2:0. mini+ adds advanced features including Chroma Key, Logo, PTZ camera
control. mini devices are easy to operate either on board or remotely from mobile devices or laptops with
XPOSE mini.
System Connection Diagram

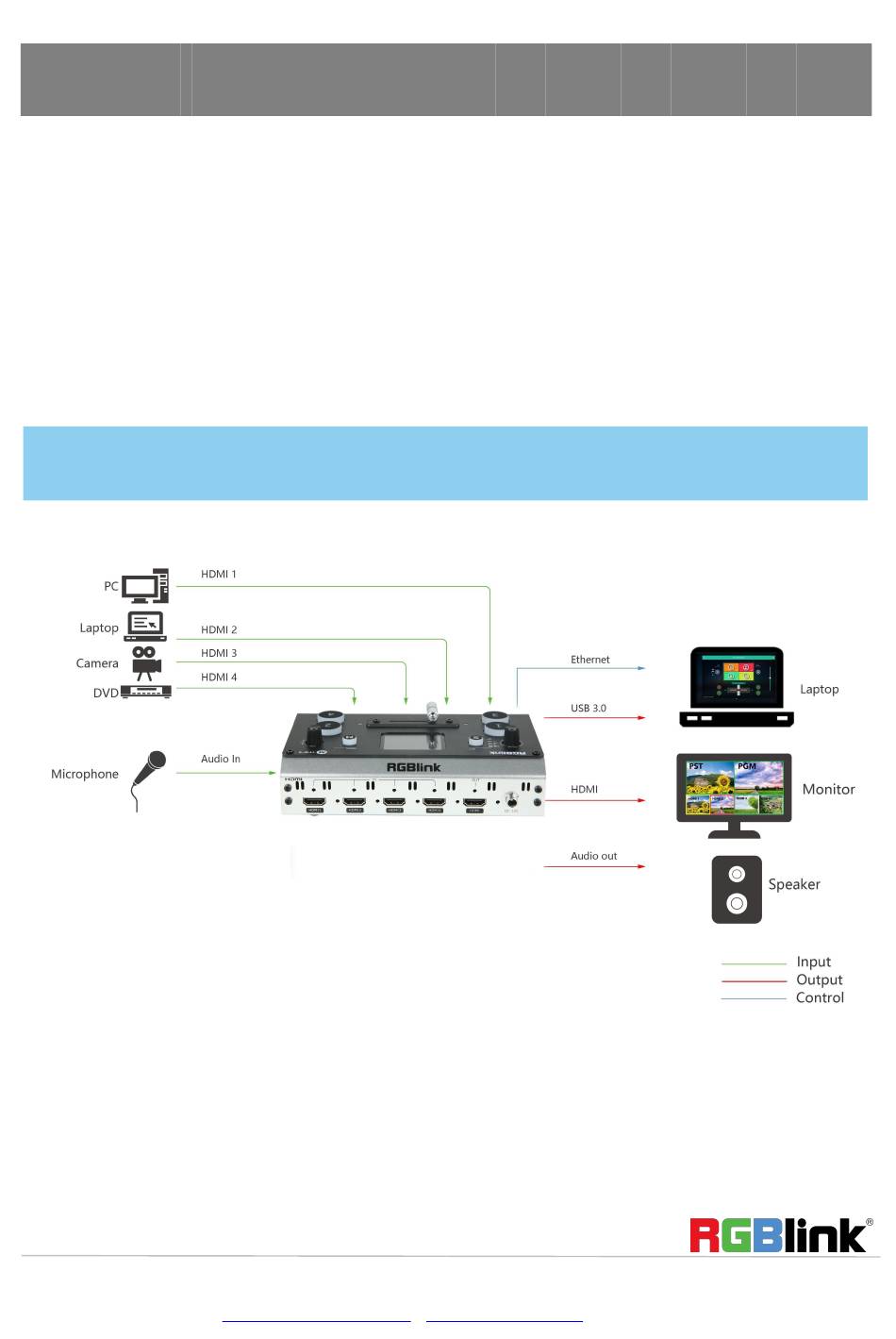

mini /mini+ System Connection Diagram
