Product Introduction

mini/mini+ is a "mini" signal switcher and mixer which is able stream 6-picture PVW or PGM from any one out
of the 4 HDMI inputs to any live broadcasting platform via third party live streaming software such as OBS. It
adopts compact design, equipped with a 2 inch TFT screen to preview the 4 inputs in real time. 14 transition
effects on board to collaborate with T-Bar to do transition switching. Along with feature of seamless switch,
there are other outstanding features such as audio embedding, de-embedding, and automatically identifying
color depth of RGB4:4:4, YUV4:4:4, YUV4:2:2,YUV4:2:0. mini+ is based on mini but with advanced features
including Chroma Key, Logo, PTZ camera control. It is also easy to operate either on board or on dedicated app
XPOSE on PC.
System Connection Diagram

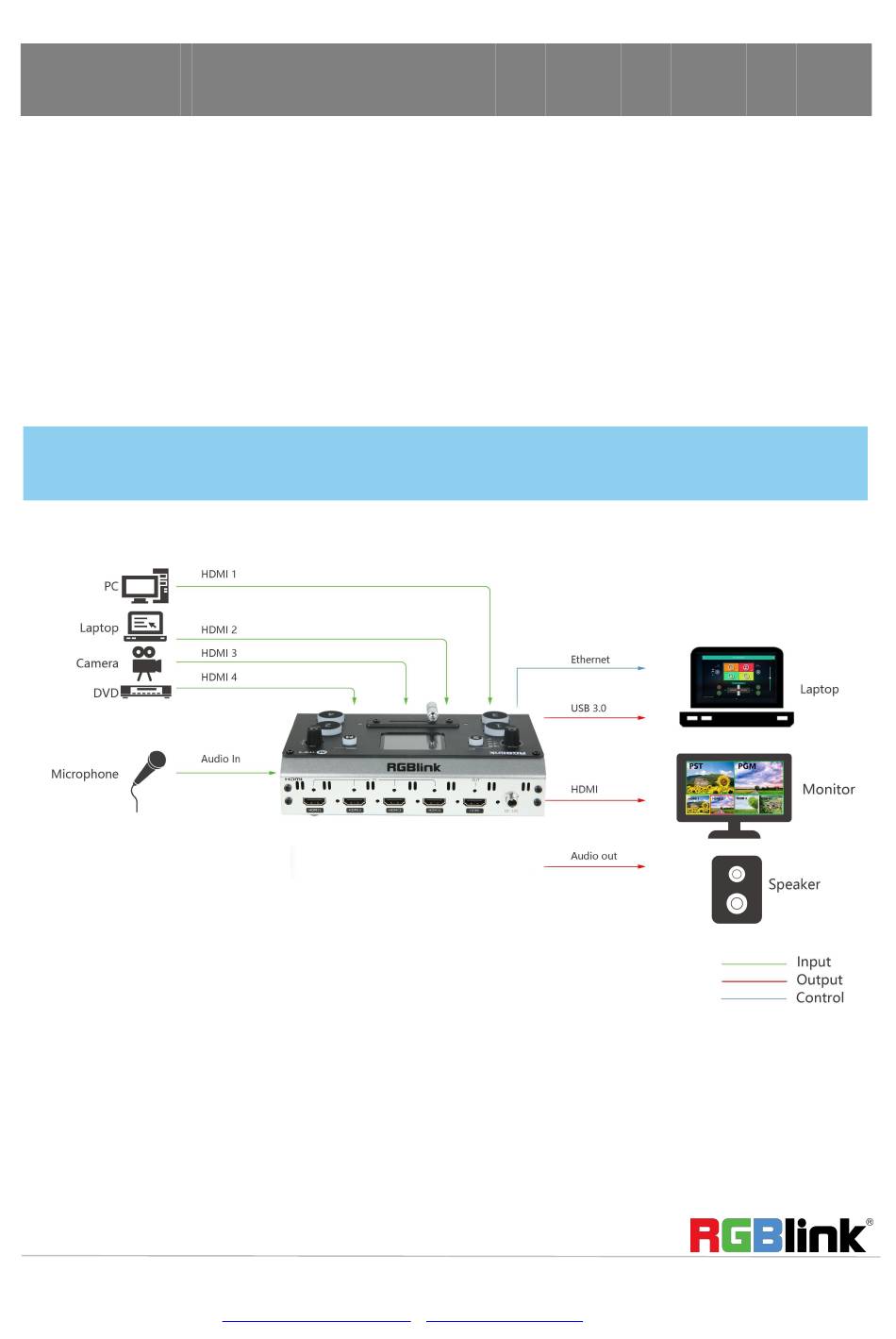

mini /mini+System Connection Diagram
