RGBlink mini Quick Start Manual page 21

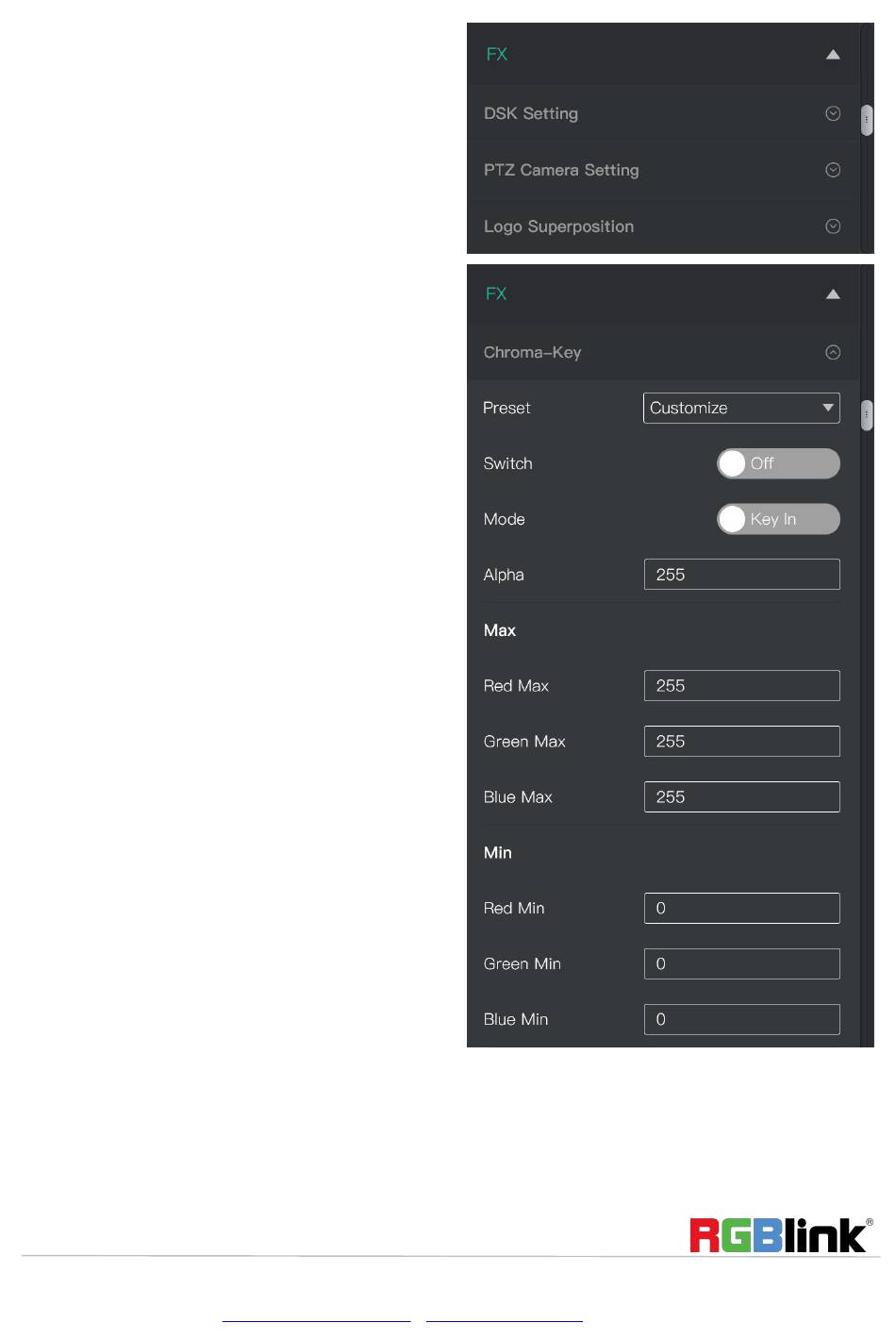

FX
On mini+, FX contains 3 features: DSK
Setting, PTZ Camera Control and Logo
Chroma Key
Preset: Customize, black background, red
background, blue background, green background ,
and white background .
Switch: On/Off
Mode: Select Key In or Key Out.
Alpha: The adjustment range is between 0~255.
The color space is R,G,B by default.
The value range of R,G,B is from 0~255
0 means pure white, 255 means pure black.
Max (Red,Green,Blue):if users choose any preset
mode except customize, the Max value of R,G,B is
automatically set by system. If users choose
customize as Preset, then R,G,B maximum value
shall be adjusted manually.
Min (Red,Green,Blue):if users choose any preset
mode except customize, the Min value of R,G,B is
automatically set by system. If users choose
customize as Preset, then R,G,B minimum value
shall be adjusted manually.
