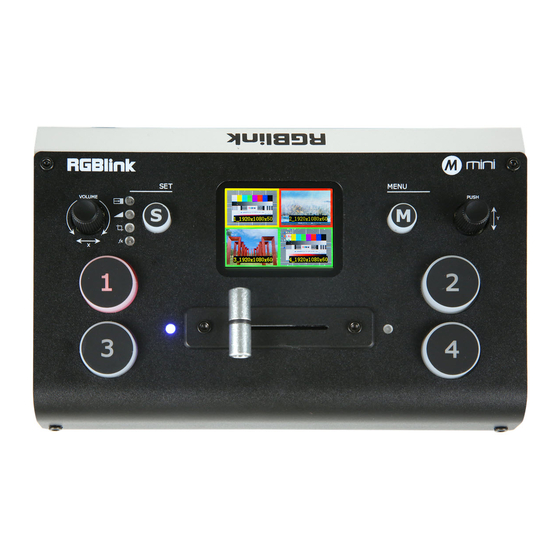

RGBlink Mini Quick Start Manual

Video mixer
Hide thumbs Also See for Mini:
Table of Contents

Advertisement

Quick Links

Download this manual

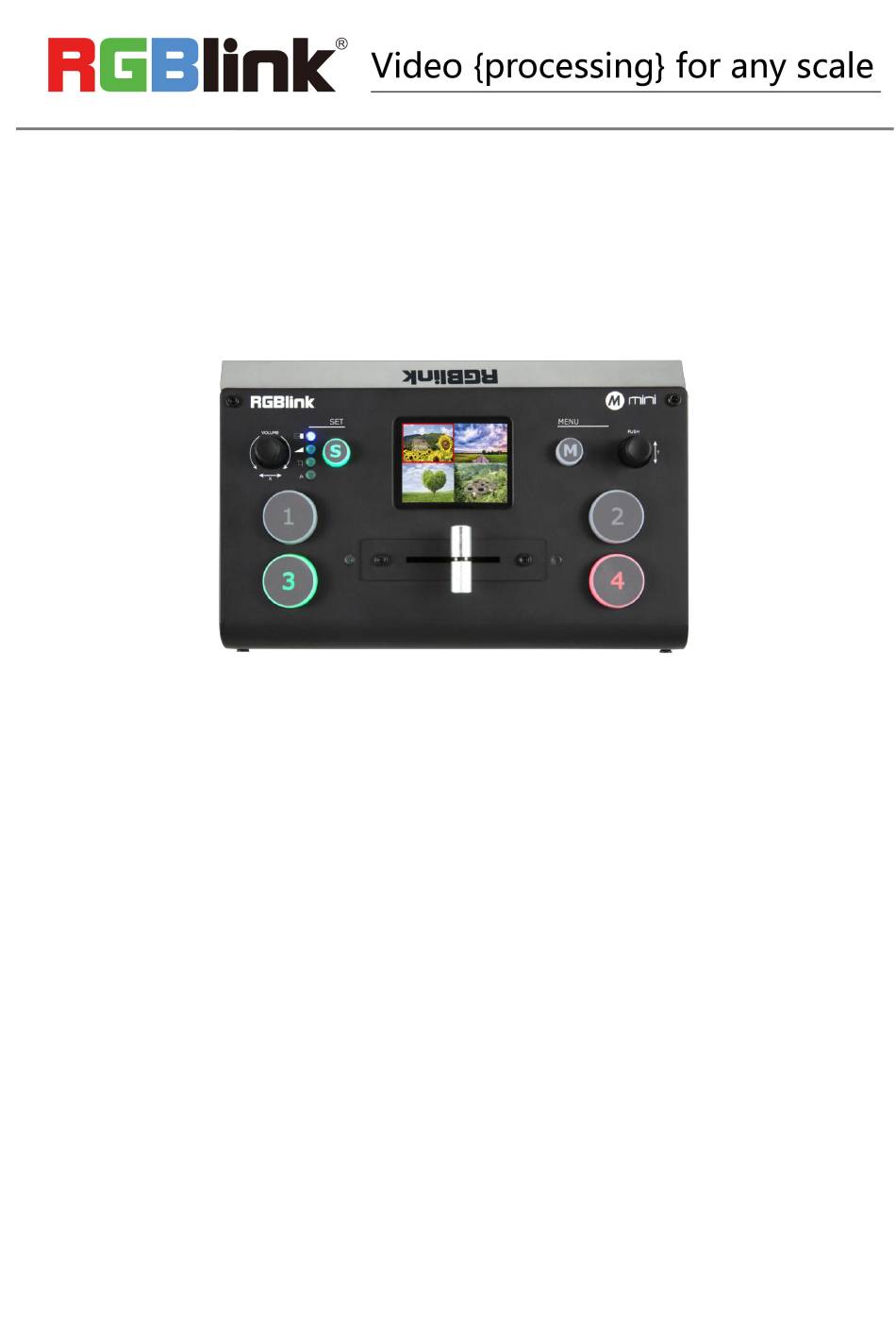

mini
Quick Start
● USB capture video complying with UVC for live streaming
● 4CH HDMI inputs
● 2''TFT display on board to Live preview four input
● Auto cut and manual switch (T-Bar)
● 14 transition effects on T-Bar
● Support PIP
● Audio offers embeded or external source to select
● Support switch between 6-Picture PVW and PGM to HDMI
Out
● Licensed features including DSK, PTZ control etc.
● Control by PC or mobile phone (via APP)
● Compact design

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RGBlink Mini

Summary of Contents for RGBlink Mini

  • Page 1 Quick Start ● USB capture video complying with UVC for live streaming ● 4CH HDMI inputs ● 2’’TFT display on board to Live preview four input ● Auto cut and manual switch (T-Bar) ● 14 transition effects on T-Bar ●...

  • Page 2: Table Of Contents

    PIP (Picture-In-Picture or Picute by Picture) Operation................... 10 Software Operation............................11 OBS Streaming..............................19 OBS Setting...............................19 Streaming Setting.............................. 21 Upgrade................................22 Contact Information..............................27 © Xiamen RGBlink Science & Technology Co., Ltd. 1 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 3: Product Introduction

    Product Introduction mini is a “mini” singal switcher and mixer which is able stream 6-picture PVW or PGM from any one out of the 4 HDMI inputs to any live broadcasting platform via third party live streaming software such as OBS. It adopt compact design, equiped with a 2 inch TFT sreen to preview the 4 inputs in real time.

  • Page 4: Packing Configuration

    Packing Configuration Power Adapter USB3.0 Cable Note: Power adapter supplied as standard according to destination market. There are CN,US,GB,EU,AU standard availble to choose. © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 5: Hardware Orientation

    Manual switch, push to left end or right end to switch T-Bar signal to PGM. © Xiamen RGBlink Science & Technology Co., Ltd. 4 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 6: Interface Panel

    AUDIO IN/OUT AUDIO In, anolog audio input port, connect to microphone AUDIO OUT, analog audio output port, connect to loudspeaker. © Xiamen RGBlink Science & Technology Co., Ltd. 5 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 7: Use Your Product

    Use Your Product MENU When mini is power on, the native TFT display show starting up page. Main Menu Input Push MENU and select the first menu item <Input> Push knob to enter <Input> menu © Xiamen RGBlink Science & Technology Co., Ltd.

  • Page 8: Hdmi

    USB3.0 means USB3.0 output， push knob to enter <USB3.0>menu，select Preview output and PGM output for HDMI. Output：Choose PGM or Preview Format：1920×1080@60 Audio Choose <AUDIO> SOURCE：EMBEDED or EXTREANAL AUDIO BAR：ON/OFF © Xiamen RGBlink Science & Technology Co., Ltd. 7 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 9: Ip Setting

    IP Setting Manually set IP address LANGUAGE LANGUGE, select Chinese or English Factory Reset Factory Reset: Yes or No © Xiamen RGBlink Science & Technology Co., Ltd. 8 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 10: Info

    Choose FAST, the switching will be with transition effect in set time. Choose T-Bar, the switching will be with selected transiton effect by pushing T-Bar © Xiamen RGBlink Science & Technology Co., Ltd. 9 / 28 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 11: Pip

    1. Decide which source to be the main picture, select and switch it to PGM when PIP is OFF 2. Select the PIP layout mode in PIP menu 3. Select the input source and switch it to sub-picture on PGM © Xiamen RGBlink Science & Technology Co., Ltd. 10 / 28 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 12: Software Operation

    After searching, all available mini devices in the subnet can be found, up to 128 devices can found if there are. © Xiamen RGBlink Science & Technology Co., Ltd. 11 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 13 Select the desired device by SN and IP and enter the management interface. The software interface is a simulation of opeation panel on real mini device. For example, clicking Button M can open up menu as on the device INPUT INFO HDMI Output ©...
  • Page 14 USB3.0 Output © Xiamen RGBlink Science & Technology Co., Ltd. 13 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 15 <MIX> Choose switch time and transition effect. © Xiamen RGBlink Science & Technology Co., Ltd. 14 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 16 <PIP> Choose layout mode for Streaming Capture Device:choose RGBlink USB3.0 Capture OBS:Slide On AUDIO © Xiamen RGBlink Science & Technology Co., Ltd. 15 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 17 TEST PATTERN HDMI Output Setting © Xiamen RGBlink Science & Technology Co., Ltd. 16 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 18 IP Setting Manaully set Gateway, MASK and IP for the device. © Xiamen RGBlink Science & Technology Co., Ltd. 17 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 19 VERSION T-Bar Calibration Factory Reset © Xiamen RGBlink Science & Technology Co., Ltd. 18 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 20: Obs Streaming

    OBS Streaming OBS Setting mini is compatible with many third party steaming softwares, we recommend OBS, which is available to download on Download the software and update to the latest https://obsproject.com/download. version. 1.Click”+”icon 2.choose video capture device 3.Click video capture device to open up setting page 4.Choose :RGBlink USB 3.0...
  • Page 21 Set Default for the audio source. 2. audio setting on OBS. Choose Audio, click Setting and choose audio device (Mic/Auxiliary Audio Device) © Xiamen RGBlink Science & Technology Co., Ltd. 20 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 22: Streaming Setting

    Paste the RMTP address to server and broadcast code to stream key. 4.Click “Start Streaming” 5.Go back to live broadcast website and check the broadcasting. © Xiamen RGBlink Science & Technology Co., Ltd. 21 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 23: Upgrade

    2.1 Power on the device connect LAN ports between PC and device by Cat6 cable； 2.2 RGBLink device default IP address is 192.168.0.99， to make sure the LAN communication, IP of PC must be under the same IP section, which means the IP of PC must be 192.168.0.XXX (but must not be completely same as the device).
  • Page 24 Step 8. Now put your desired IP Address according to your wish its correct format.  Change Subnet mask and default gateway if you want to. © Xiamen RGBlink Science & Technology Co., Ltd. 23 / 28 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 25 2.3 Open XTOOL on PC，Click Communication 2.4 Choose Net Comm in pop up windown and confirm © Xiamen RGBlink Science & Technology Co., Ltd. 24 / 28 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 26 2.5.2 After upgrade is done, there will pop up a window showing “New Version Upgraded” then then users need to reboot the device to let the new version take effect. © Xiamen RGBlink Science & Technology Co., Ltd. 25 / 28 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 27 2.5.3 Click “Version” XTOOL will show the lastest version info of the device so that users can check if the upgrade is sucessfull or not. © Xiamen RGBlink Science & Technology Co., Ltd. 26 / 28 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 28: Contact Information

    Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
